Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLU1G08CMUTCGIC GATE AND 1CH 2-INP 6UDFN |
3,771 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
NLX1G11BMX1TCGIC GATE AND 1CH 3-INP 6ULLGA |
1,319 | - |
|
Datasheet | - | 6-XFLGA | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
NC7ST32L6XIC GATE OR 1CH 2-INP 6MICROPAK |
101,376 | - |
|
Datasheet | 7ST | 6-UFDFN | Bulk | Active | OR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 2mA, 2mA | 0.8V | 2V | 26ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
|
NLX2G14BMX1TCGIC INVERT SCHMITT 2CH 2IN 6ULLGA |
2,282 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 4.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
NLU1GT04AMUTCGIC INVERTER 1CH 1-INP 6UDFN |
2,455 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | 0.3V ~ 0.8V | 1.2V ~ 2V | 7.7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
MC74AC32DR2IC GATE OR 4CH 2-INP 14-SOIC |
82,475 | - |
|
Datasheet | 74AC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
SC7S08FERIC GATE AND |
81,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLU1GT32CMX1TCGIC GATE OR 1CH 2-INP 6ULLGA |
72,000 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Bulk | Obsolete | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V ~ 0.8V | 1.2V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLU1G00CMX1TCGIC GATE NAND 1CH 2-INP 6ULLGA |
72,000 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Bulk | Obsolete | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLU1GT04CMX1TCGIC INVERTER 1CH 1-INP 6ULLGA |
69,000 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Bulk | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | 0.3V ~ 0.8V | 1.2V ~ 2V | 7.7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLU1GT86CMX1TCGIC GATE XOR 1CH 2-INP 6ULLGA |
4,428 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | 0.53V ~ 0.8V | 1.4V ~ 2V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
SN74LVC1G00DBV3IC GEN PURP |
68,900 | - |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74HC02ADR2IC GATE NOR 4CH 2-INP 14-SOIC |
68,585 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NOR Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

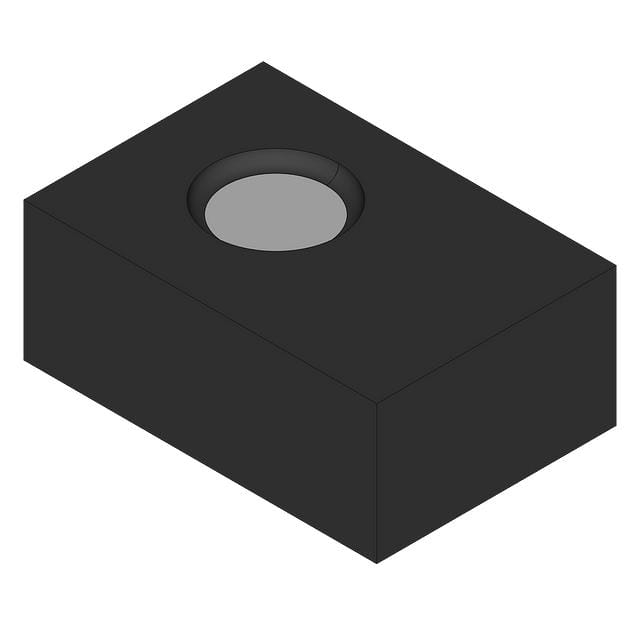

SN74LVC1G08DPKRIC GATE AND SNGL 2-INP |
67,000 | - |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLX1G10BMX1TCGIC GATE NAND 1CH 3-INP 6ULLGA |
66,000 | - |
|
Datasheet | - | 6-XFLGA | Bulk | Obsolete | NAND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLU1G14CMX1TCGIC INVERT SCHMITT 1CH 1IN 6ULLGA |
65,985 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Bulk | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NC7WZ32L8X-L22185IC GATE OR 2CH 2-INP 8UQFN |
1,777 | - |
|
Datasheet | 7WZ | 8-UFQFN | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-UQFN (1.6x1.6) |
|
|
SC7S08FELIC GATE AND |
60,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLU1G86CMX1TCGIC GATE XOR 1CH 2-INP 6ULLGA |
2,603 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
SN74LVC1G02DCK3IC GEN PURP |
52,587 | - |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
