Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G32SE-7IC GATE OR 1CH 2-INP SOT353 |
61,817 | - |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 200 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 1.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|

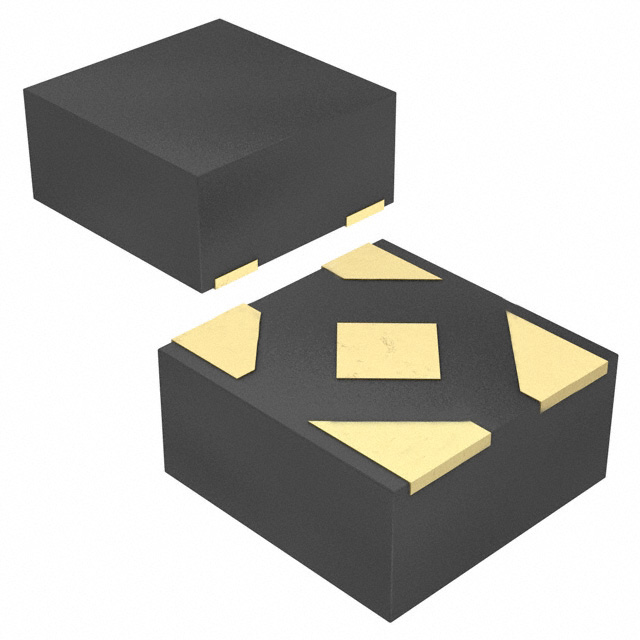

SN74LVC1G04DPWRIC INVERTER 1CH 1-INP 4X2SON |
11,341 | - |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.7ns @ 5V, 50pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-X2SON (0.8x0.8) |
|
SN74HCT32DRIC GATE OR 4CH 2-INP 14SOIC |
4,132 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74HC14PW,118IC INVERTER 6CH 1-INP 14TSSOP |
33,778 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74AHCT1G04W5-7IC INVERTER 1CH 1-INP SOT25 |
28,674 | - |
|
Datasheet | 74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-25 |
|
SN74LVC1G08QDCKRQ1IC GATE AND 1CH 2-INP SC70-5 |
23,290 | - |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 6ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-5 |
|
SN74LVC1G332DCKRIC GATE OR 1CH 3-INP SC70-6 |
21,811 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
74AHC1G32SE-7IC GATE OR 1CH 2-INP SOT353 |
20,789 | - |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
|
74AHC1G00SE-7IC GATE NAND 1CH 2-INP SOT353 |
20,739 | - |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
|
74AHC1GU04SE-7IC INVERTER 1CH 1-INP SOT353 |
20,412 | - |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 6mA, 6mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-353 |
|
SN74LVC1G32DRYRIC GATE OR 1CH 2-INP 6SON |
7,614 | - |
|
Datasheet | 74LVC | 6-UFDFN | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
|
74AHC1G08SE-7IC GATE AND 1CH 2-INP SOT353 |
17,214 | - |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
SN74LV02APWRIC GATE NOR 4CH 2-INP 14TSSOP |
12,005 | - |
|
Datasheet | 74LV | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC132DRIC GATE NAND 4CH 2-INP 14SOIC |
11,500 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
SN74LVC1G32QDBVRQ1IC GATE OR 1CH 2-INP SOT23-5 |
11,013 | - |
|
Datasheet | 74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 25 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
SN74LVC00ADRIC GATE NAND 4CH 2-INP 14SOIC |
10,263 | - |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.1ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LVC1G08DCK3IC GATE AND 1CH 2-INP SC70-5 |
9,543 | - |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
SN74AHC1G04DRLRIC INVERTER 1CH 1-INP SOT5 |
9,016 | - |
|
Datasheet | 74AHC | SOT-553 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-5 |
|
|
74AHC1G02SE-7IC GATE NOR 1CH 2-INP SOT353 |
8,601 | - |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
SN74LVC1G08DPWRIC GATE AND 1CH 2-INP 4X2SON |
8,187 | - |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-X2SON (0.8x0.8) |
Gates and Inverters FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
