Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LEOAC14PT-DTSSOP 20 BODY 4.4 PITCH 0.65 |
3,514 | - |
|
Datasheet | 74AC | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | Schmitt Trigger Input | 2V ~ 6V | 40 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-TSSOP |
|
|
LEOAC32PT-DTSSOP 20 BODY 4.4 PITCH 0.65 |
4,858 | - |
|
Datasheet | 74AC | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 40 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 9ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP |
|
74LCX32MTRIC GATE OR 4CH 2-INP 14SO |
1,550 | - |
|
Datasheet | 74LCX | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
74LVC32ATTRIC GATE OR 4CH 2-INP 14TSSOP |
2,128 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

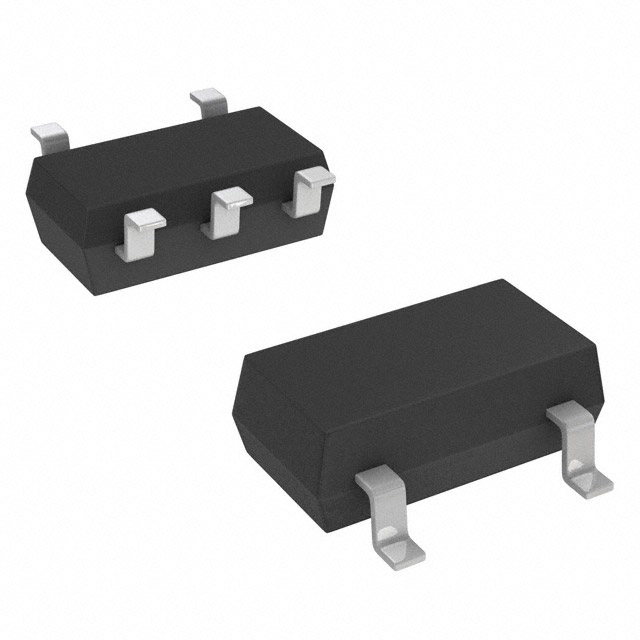

74LX1G02CTRIC GATE NOR 1CH 2-INP SOT323-5 |
2,808 | - |
|
Datasheet | 74LX | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-323-5 |
|
M74HC03B1RIC GATE NAND 4CH 2-INP 14DIP |
1,186 | - |
|
Datasheet | 74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 1 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 10ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
|
M74HCU04RM13TRIC INVERTER 6CH 1-INP 14SO |
10,894 | - |
|
Datasheet | 74HCU | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 10ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74LCX00YMTRIC GATE NAND 4CH 2-INP 14SO |
2,428 | - |
|
Datasheet | 74LCX | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 4.3ns @ 3.3V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|

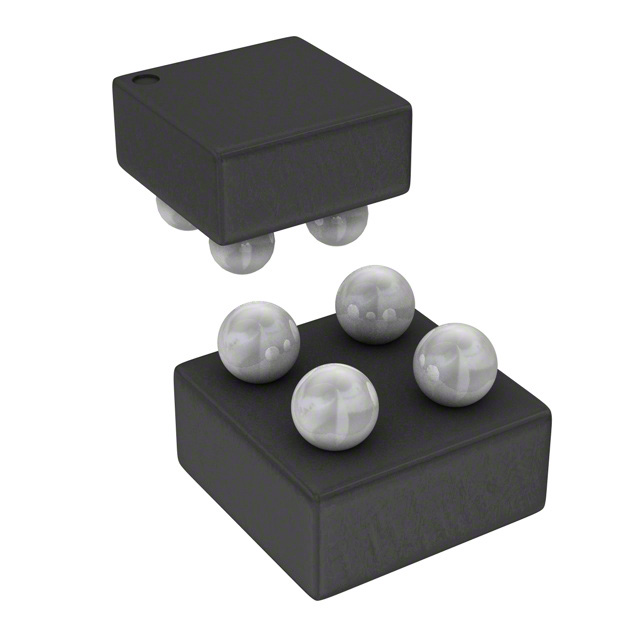

74LX1G04BJRIC INVERTER 1CH 1-INP 4FLIPCHIP |
7,406 | - |
|
Datasheet | 74LX | 4-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 4.2ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 4-FlipChip (1.07x1.07) |
|

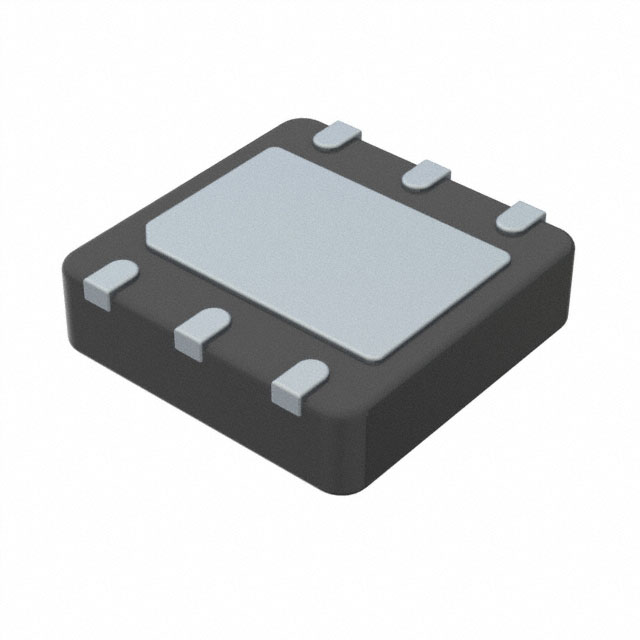

74AUP1G04DTRIC INVERTER 1CH 1-INP 6DFN |
1,897 | - |
|
Datasheet | 74AUP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.2V ~ 3.6V | 100 nA | 10mA, 10mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3.8ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (1.2x1.0) |
Gates and Inverters FAQ
Common questions about filtering, comparing and sourcing Gates and Inverters components.
How can I narrow the Gates and Inverters selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gates and Inverters part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
