Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM74HCT05MIC INVERTER 6CH 1-INP 14SOIC |
64,896 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Inverter | 6 | 1 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4.8mA | 0.8V | 2V | 15ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
MC74LVX08DTGIC GATE AND 4CH 2-INP 14TSSOP |
2,957 | - |
|
Datasheet | 74LVX | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 4mA, 4mA | 0.5V ~ 0.8V | 1.5V ~ 2.4V | 10.6ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
NL27WZU04DFT2IC INVERTER DUAL UNBUFF SOT363 |
48,190 | - |
|
Datasheet | 27WZ | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | Inverter | 2 | 1 | - | 1.65V ~ 5.5V | 1 µA | 16mA, 16mA | - | - | 5.6ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
ALVC04PWRIC GEN PURP |
40,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MM74HCT04SJIC INVERTER 4CH 2-INP 14SOP |
38,690 | - |
|
Datasheet | 74HCT | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.8V | 2V | 20ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
SN74LVC3G06YZARIC INVERTER 3CH 3-INP 8DSBGA |
36,000 | - |
|
Datasheet | 74LVC | 8-XFBGA, DSBGA | Bulk | Obsolete | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-DSBGA (1.9x0.9) |
|
74HC86N,652IC GATE XOR 4CH 2-INP 14DIP |
4,674 | - |
|
Datasheet | 74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
|
MC74ACT86NGIC GATE XOR 4CH 2-INP 14DIP |
1,501 | - |
|
Datasheet | 74ACT | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 9.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
74F04SJXIC INVERTER 6CH 1-INP 14SOP |
29,512 | - |
|
Datasheet | 74F | 14-SOIC (0.209", 5.30mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|
|
SN74LVC3G06YEPRIC INVERTER 3CH 3-INP 8DSBGA |
27,000 | - |
|
Datasheet | 74LVC | 8-XFBGA, DSBGA | Bulk | Obsolete | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-DSBGA (1.9x0.9) |
|
|
74AC14SJIC INVERT SCHMITT 6CH 6INP 14SOP |
25,035 | - |
|
Datasheet | 74AC | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
SN74LVC3GU04YEPRIC INVERTER 3CH 3-INP 8DSBGA |
24,000 | - |
|
Datasheet | 74LVC | 8-XFBGA, DSBGA | Bulk | Obsolete | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-DSBGA (1.9x0.9) |
|
74F00PCIC GATE NAND 4CH 2-INP 14DIP |
21,826 | - |
|
Datasheet | 74F | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
DM74ALS00ANIC GATE NAND 4CH 2-INP 14DIP |
21,613 | - |
|
Datasheet | 74ALS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
DM74ALS1004MXIC INVERTER 6CH 1-INP 14SOIC |
21,402 | - |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 15mA, 24mA | 0.8V | 2V | 7ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
MC14073BFELGIC GATE AND 3CH 3-INP SOEIAJ-14 |
4,482 | - |
|
Datasheet | 4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOEIAJ-14 |
|
|
MC74ACT32NGIC GATE OR 4CH 2-INP 14DIP |
4,906 | - |
|
Datasheet | 74ACT | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MC14071BFELGIC GATE OR 4CH 2-INP SOEIAJ-14 |
2,088 | - |
|
Datasheet | 4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOEIAJ-14 |
|

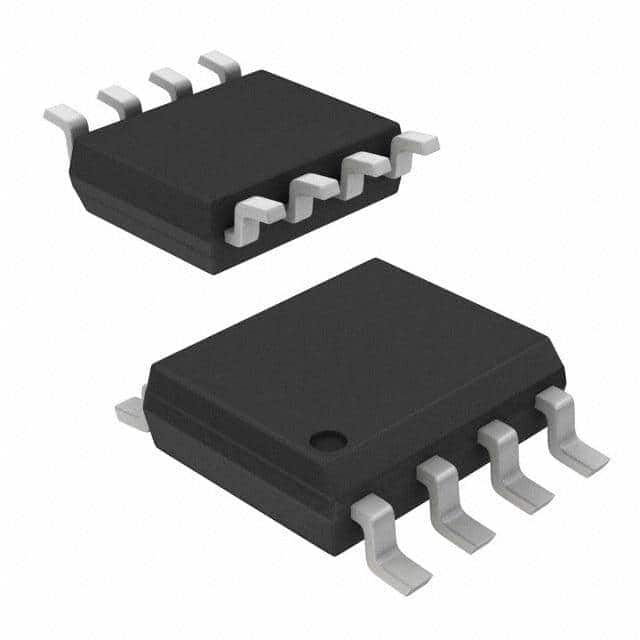

NL27WZ00USHIC NAND DUAL 2-INP |
18,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74VHC1G09DFT2G-L22038IC GATE AND 1CH 2-INP SC88A |
16,579 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
