Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NC7ST00M5XIC GATE NAND 1CH 2-INP SOT23-5 |
141,500 | - |
|
Datasheet | 7ST | SC-74A, SOT-753 | Bulk | Active | NAND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 2mA, 2mA | 0.8V | 2V | 26ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7SZ38M5XIC GATE NAND 1CH 2-INP SOT23-5 |
125,500 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Bulk | Active | NAND Gate | 1 | 2 | Open Drain | 1.65V ~ 5.5V | 2 µA | -, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
74VHC32SJIC GATE OR 4CH 2-INP 14SOP |
46,114 | - |
|
Datasheet | 74VHC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74F27SCXIC GATE NOR 3CH 3-INP 14SOIC |
12,500 | - |
|
Datasheet | 74F | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 12 mA | 20mA, 1mA | 0.8V | 2V | 6ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
MM74C08MIC GATE AND 4CH 2-INP 14SOIC |
5,500 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | AND Gate | 4 | 2 | - | 3V ~ 15V | 15 µA | - | - | - | 70ns @ 10V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NC7SV38P5XIC GATE NAND 1CH 2-INP SC70-5 |
17,410 | - |
|
Datasheet | 7SV | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | NAND Gate | 1 | 2 | Open Drain | 0.9V ~ 3.6V | 900 nA | -, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
NC7SV32P5XIC GATE OR 1CH 2-INP SC70-5 |
6,455 | - |
|
Datasheet | 7SV | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | OR Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
NC7SZ27L6XIC GATE NOR 1CH 3-INP 6MICROPAK |
103,102 | - |
|
Datasheet | 7SZ | 6-UFDFN | Bulk | Active | NOR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 5.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
|
74F27SJXIC GATE NOR 3CH 3-INP 14SOP |
7,239 | - |
|
Datasheet | 74F | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 12 mA | 20mA, 1mA | 0.8V | 2V | 6ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|

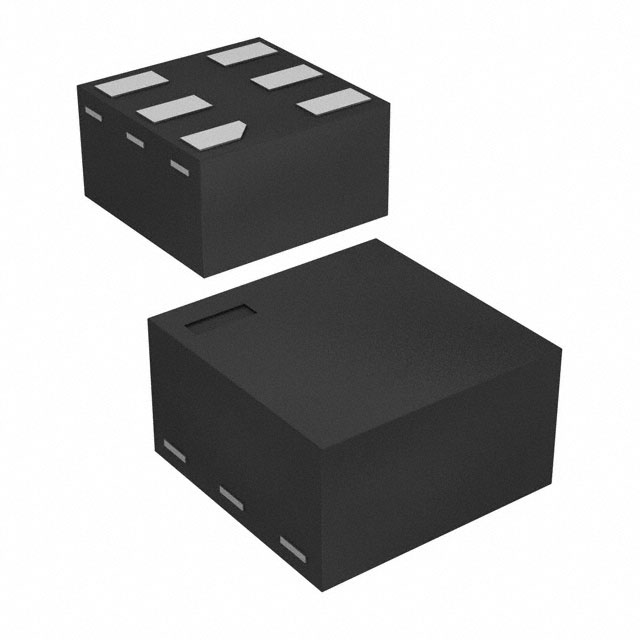

NC7WZ04FHXIC INVERTER 2CH 2-INP 6MICROPAK2 |
596,715 | - |
|
Datasheet | 7WZ | 6-UFDFN | Bulk | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak2™ |
