Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

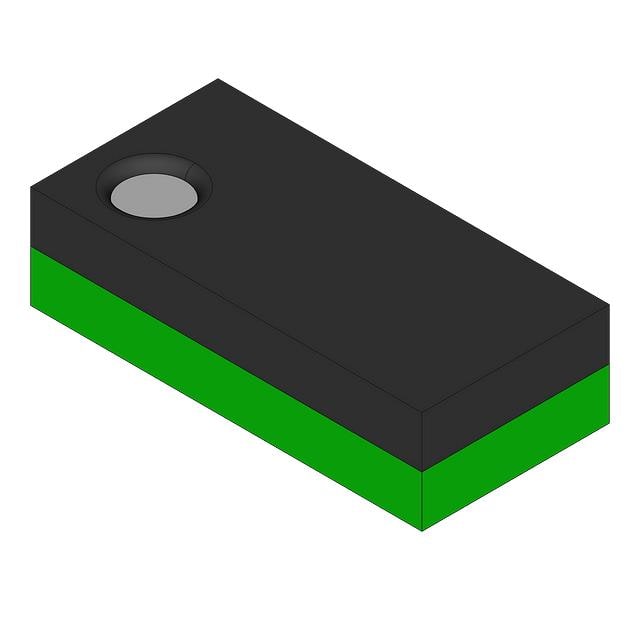

SN74AUC2G32YZPRBIC GEN PURP |
3,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NC7SV08FHXIC GATE AND 1CH 2-INP 6MICROPAK2 |
2,484 | - |
|
Datasheet | 7SV | 6-UFDFN | Tape & Reel (TR) | Last Time Buy | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak2™ |
|
74ACTQ32SJXIC GATE OR 4CH 2-INP 14SOP |
2,000 | - |
|
Datasheet | 74ACTQ | 14-SOIC (0.209", 5.30mm Width) | Bulk | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 6.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
SN7406DG4IC INVERTER 6CH 1-INP 14SOIC |
3,762 | - |
|
Datasheet | 7400 | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | Open Collector | 4.75V ~ 5.25V | - | -, 40mA | 0.8V | 2V | 23ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74ABT08DB,112IC GATE AND 4CH 2-INP 14SSOP |
1,659 | - |
|
Datasheet | 74ABT | 14-SSOP (0.209", 5.30mm Width) | Tube | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 50 µA | 15mA, 20mA | 0.8V | 2V | 3.4ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SSOP |
|
|
74ABT20DB,112IC GATE NAND 2CH 4-INP 14SSOP |
1,082 | - |
|
Datasheet | 74ABT | 14-SSOP (0.209", 5.30mm Width) | Tube | Active | NAND Gate | 2 | 4 | - | 4.5V ~ 5.5V | 50 µA | 15mA, 20mA | 0.8V | 2V | 3.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SSOP |
|
NLX2G08DMUTCGIC GATE AND 2CH 2-INP 8UDFN |
4,402 | - |
|
Datasheet | - | 8-UFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 8-UDFN (1.95x1) |
|
NLU1GT32MUTCGIC GATE OR 1CH 2-INP 6UDFN |
1,722 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V ~ 0.8V | 1.2V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
|
NLU1G86MUTCGIC GATE XOR 1CH 2-INP 6UDFN |
2,407 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
NC7S86L6XIC GATE XOR 1CH 2-INP 6MICROPAK |
1,869 | - |
|
Datasheet | 7S | 6-UFDFN | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
MC74HC14ADTR2IC INVERTER 6CH 1-INP 14TSSOP |
1,123 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
CD74HC03MIC GATE NAND 4CH 2-INP 14SOIC |
13,854 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 2 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LS30DIC GATE NAND 1CH 8-INP 14SOIC |
13,041 | - |
|
Datasheet | 74LS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 4.75V ~ 5.25V | 500 µA | 400µA, 8mA | 0.8V | 2V | 20ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LS26DIC GATE NAND 4CH 2-INP 14SOIC |
7,573 | - |
|
Datasheet | 74LS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | - | -, 8mA | 0.8V | 2V | 32ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
NC7SZ05FHXIC INVERTER 1CH 1-INP 6MICROPAK2 |
3,616 | - |
|
Datasheet | 7SZ | 6-UFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Open Drain | 1.65V ~ 5.5V | 2 µA | -, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak2™ |
|
74LVC1G02FW5-7IC GATE NOR 1CH 2-INP DFN1010-6 |
3,185 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 200 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | X1-DFN1010-6 |
|
M74HC03B1RIC GATE NAND 4CH 2-INP 14DIP |
1,186 | - |
|
Datasheet | 74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 1 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 10ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
MC14584BFELGIC INVERTER 6CH 1-INP SOEIAJ-14 |
3,009 | - |
|
Datasheet | 4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.6V ~ 4.6V | 3.4V ~ 10.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOEIAJ-14 |
|
|
74HCT04DTR2GIC INVERTER 6CH 1-INP 14TSSOP |
2,675 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 17ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74VCX00MTCXIC GATE NAND 4CH 2-INP 14TSSOP |
3,350 | - |
|
Datasheet | 74VCX | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 1.2V ~ 3.6V | 20 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.8ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
