Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G08DRLRIC GATE AND 1CH 2-INP SOT5 |
6,602 | - |
|
Datasheet | 74AUP | SOT-553 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-5 |
|
SN74LV1T02DBVRIC GATE NOR 1CH 2-INP SOT23-5 |
5,660 | - |
|
Datasheet | 74LV | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.6V ~ 5.5V | 10 µA | 8mA, 8mA | 0.58V ~ 0.8V | 0.94V ~ 2.1V | 7ns @ 5V, 30pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
HEF40106BTT,118IC INVERTER 6CH 1-INP 14TSSOP |
5,065 | - |
|
Datasheet | 4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 15V | 4 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT2G14GW-Q100HIC INVERT SCHMITT 2CH 2IN 6TSSOP |
4,293 | - |
|
Datasheet | 74HCT | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
CD4049UBPWRIC INVERTER 6CH 1-INP 16TSSOP |
3,672 | - |
|
Datasheet | 4000B | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 4.3mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74ALVC08BQ,115IC GATE AND 4CH 2-INP 14DHVQFN |
2,068 | - |
|
Datasheet | 74ALVC | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 20 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|

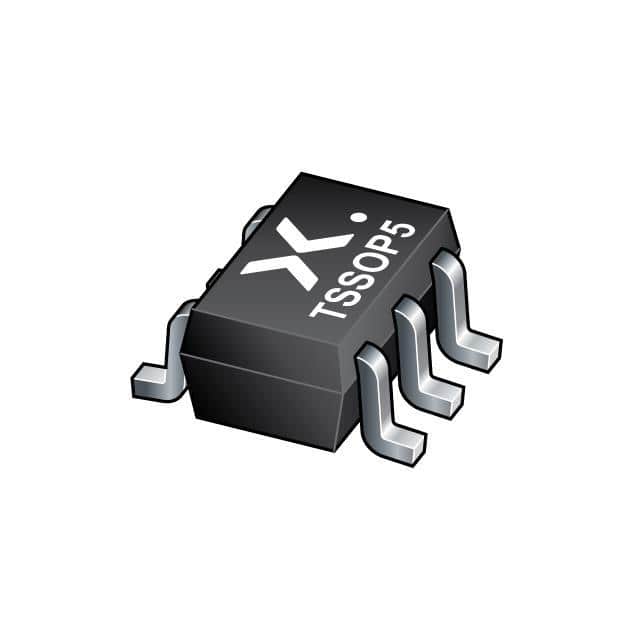

74AUP1T08GW-Q100HIC GATE AND 1CH 2-INP 5TSSOP |
1,514 | - |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | Schmitt Trigger | 2.3V ~ 3.6V | 1.2 µA | 4mA, 4mA | 0.6V ~ 0.85V | 1.1V ~ 1.16V | 7ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
CD74HCT27EIC GATE NOR 3CH 3-INP 14DIP |
1,271 | - |
|
Datasheet | 74HCT | 14-DIP (0.300", 7.62mm) | Tube | Active | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 23ns @ 4.5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LVC3G04DCURIC INVERTER 3CH 3-INP 8VSSOP |
5,170 | - |
|
Datasheet | 74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74AHC14NIC INVERT SCHMITT 6CH 1INP 14DIP |
10,418 | - |
|
Datasheet | 74AHC | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74LVC2G86DP,125IC GATE XOR 2CH 2-INP 8TSSOP |
10,873 | - |
|
Datasheet | 74LVC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
SN74AC08PWRIC GATE AND 4CH 2-INP 14TSSOP |
6,995 | - |
|
Datasheet | 74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC3G14DC,125IC INVERT SCHMITT 3CH 3IN 8VSSOP |
6,485 | - |
|
Datasheet | 74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 1.1V ~ 2.5V | 1.7V ~ 3.8V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74AC00DRIC GATE NAND 4CH 2-INP 14SOIC |
5,998 | - |
|
Datasheet | 74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
CD4077BM96IC GATE XNOR 4CH 2-INP 14SOIC |
1,844 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XNOR (Exclusive NOR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
CD74HC4002PWRIC GATE NOR 2CH 4-INP 14TSSOP |
2,251 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74ACT08PWRIC GATE AND 4CH 2-INP 14TSSOP |
3,141 | - |
|
Datasheet | 74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74AHC2G32DP,125IC GATE OR 2CH 2-INP 8TSSOP |
2,740 | - |
|
Datasheet | 74AHC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74HC30D,653IC GATE NAND 1CH 8-INP 14SO |
2,441 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74AC00PWRIC GATE NAND 4CH 2-INP 14TSSOP |
2,261 | - |
|
Datasheet | 74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
