Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ALS04BDRIC INVERTER 6CH 1-INP 14SOIC |
6,478 | - |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74ALS08DRIC GATE AND 4CH 2-INP 14SOIC |
8,186 | - |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 14ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
SN74HC00NSRIC GATE NAND 4CH 2-INP 14SO |
5,112 | - |
|
Datasheet | 74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
SN74LS02NIC GATE NOR 4CH 2-INP 14DIP |
2,549 | - |
|
Datasheet | 74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | NOR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 16mA | 0.8V | 2V | 15ns @ 5V, 15pF | 0°C ~ 70°C (TA) | - | - | Through Hole | 14-PDIP |
|
CD74AC00EIC GATE NAND 4CH 2-INP 14DIP |
2,284 | - |
|
Datasheet | 74AC | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND Gate | 4 | 2 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 7.3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74AC14EIC INVERT SCHMITT 6CH 6IN 14DIP |
267 | - |
|
Datasheet | 74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 1.6V | 3.4V | 10.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LVC2G86DCTRIC GATE XOR 2CH 2-INP SM8 |
10,434 | - |
|
Datasheet | 74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
HCF4093YM013TRIC GATE NAND SCHMIT 4CH 2IN 14SO |
4,901 | - |
|
Datasheet | 4000 | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 20V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 130ns @ 15V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
NC7WZ08K8XIC GATE AND 2CH 2-INP US8 |
4,658 | - |
|
Datasheet | 7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
CD74AC04EIC INVERTER 6CH 1IN 14DIP |
2,323 | - |
|
Datasheet | 74AC | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 6.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LV21APWRIC GATE AND 2CH 4-INP 14TSSOP |
1,546 | - |
|
Datasheet | 74LV | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HCT32NIC GATE OR 4CH 2-INP 14DIP |
1,592 | - |
|
Datasheet | 74HCT | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
SN74LV21ADGVRIC GATE AND 2CH 4-INP 14TVSOP |
1,344 | - |
|
Datasheet | 74LV | 14-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TVSOP |
|
|
SN74LV21ADRIC GATE AND 2CH 4-INP 14SOIC |
13,966 | - |
|
Datasheet | 74LV | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
NC7WZ132K8XIC GATE NAND SCHMITT 2CH 2IN US8 |
8,242 | - |
|
Datasheet | 7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|

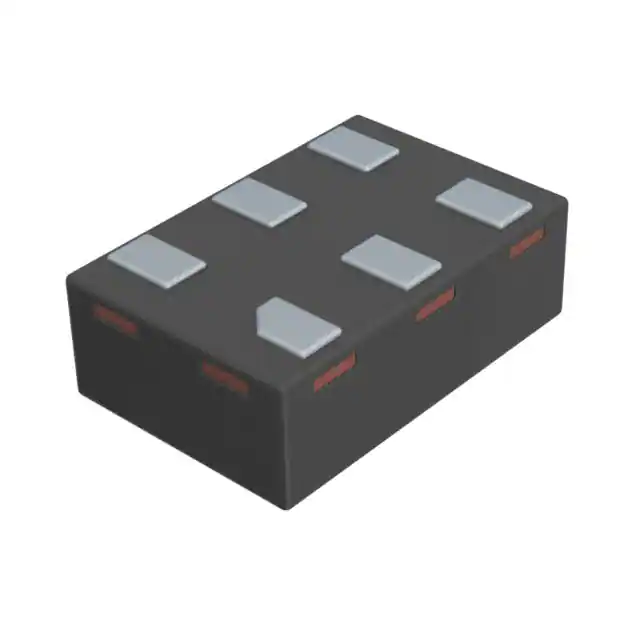

1P2GU04QDRYRQ1IC INVERTER 2CH 2-INP 6SON |
7,551 | - |
|
Datasheet | 74LVC | 6-UFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-SON (1.45x1) |
|
|
NC7WZ32K8XIC GATE OR 2CH 2-INP US8 |
6,014 | - |
|
Datasheet | 7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
SN74LS32NIC GATE OR 4CH 2-INP 14DIP |
2,133 | - |
|
Datasheet | 74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 8mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
CD74ACT05EIC INVERTER OD 6CH 1IN 14DIP |
1,882 | - |
|
Datasheet | 74ACT | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | Open Drain | 4.5V ~ 5.5V | 4 µA | -, 24mA | 0.8V | 2V | 10.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
SN74LVC2G08IDCTRQ1IC GATE AND 2CH 2-INP SM8 |
4,164 | - |
|
Datasheet | 74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 5V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | SM8 |
