Gates and Inverters
Browse available Gates and Inverters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4081BNIC GATE AND 4CH 2-INP DIP-14 |
4,479 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | AND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
|
TC74HC132AF(EL,F)IC GATE NAND 4CH 2-INP 14SOIC |
4,615 | - |
|
Datasheet | 74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.9V ~ 2.6V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HC21AF(EL,F)IC GATE AND 2CH 4-INP 14SOIC |
4,641 | - |
|
Datasheet | 74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HCU04AF(EL,F)IC INVERTER 6CH 1-INP 14SOIC |
4,359 | - |
|
Datasheet | 74HCU | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 10ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HCT04AF(EL,F)IC INVERTER 6CH 1-INP 14SOIC |
2,870 | - |
|
Datasheet | 74HCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 16ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
NL17SG32MU3TCGIC GATE OR 1CH 2-INP 6UDFN |
4,277 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.9V ~ 3.6V | 500 nA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 3.3V, 30pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
MC74VHC1G86MU3TCGIC GATE XOR 1CH 2-INP 6UDFN |
3,775 | - |
|
Datasheet | 74HC | 6-UFDFN | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
NL17SG08CMUTCGSINGLE 2-INPUT AND GATE |
1,045 | - |
|
Datasheet | NL17SG08 MiniGate™ | 6-UFDFN | Bulk | Discontinued at Digi-Key | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 500 nA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 30pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
NLV74HCU04ADR2GUNBUFFERED HEX INVERTER |
4,899 | - |
|
Datasheet | 74HCU | 14-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.1V | 1.7V ~ 4.8V | 12ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
MC74VHC1G86MU2TCGSINGLE 2-INPUT EXCLUSIVE OR GATE |
4,360 | - |
|
Datasheet | 74VHC | 6-UFDFN | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
MC74VHC1GT32MU2TCGSINGLE 2-INPUT OR GATE, TTL LEVE |
2,105 | - |
|
Datasheet | 74VHC | 6-UFDFN | Bulk | Discontinued at Digi-Key | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
M74VHC1GT08DFT2GSINGLE 2-INPUT AND GATE, TTL LEV |
4,444 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | AND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|

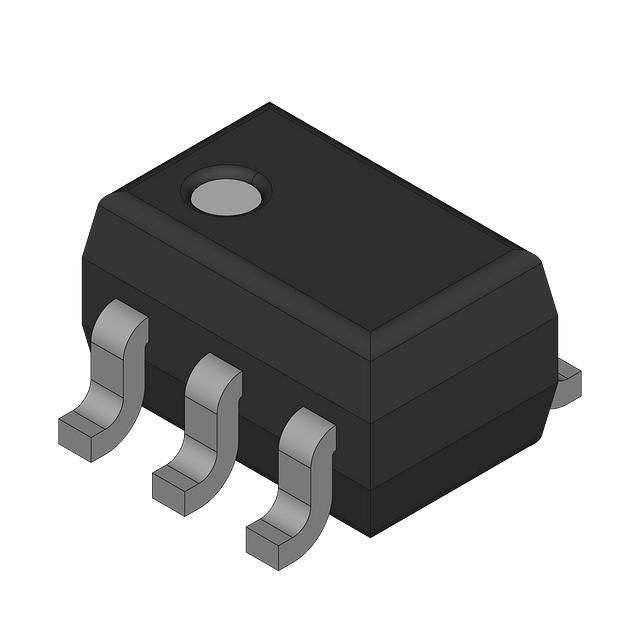

M74VHC1GT04DFT1GSINGLE INVERTER, TTL LEVEL |
2,906 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC74VHC04DTR2G-QHEX INVERTER |
4,198 | - |
|
Datasheet | 74VHC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
NL17SZ02MU3TCGSINGLE 2-INPUT NOR GATE |
3,273 | - |
|
Datasheet | 17SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
NLV74HCT04ADR2GHEX INVERTER WITH LSTTL-COMPLIAN |
2,771 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 17ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
MC74VHC1GT86DFT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
3,035 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC74VHC1GT86DFT2G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
1,862 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NLV74AC86DTR2GQUAD 2-INPUT EXCLUSIVE OR GATE |
3,208 | - |
|
Datasheet | 74AC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
MC74VHC1G86DFT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
1,454 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
