Compass, Magnetic Field (Modules)
Use the filters and product table below to compare Compass, Magnetic Field (Modules) components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Axis | Measuring Range | For Measuring | Resolution | Interface | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC63433-AXIS DIGITAL COMPASS SOLUTION |
1,906 | - |
|
Datasheet | HMC | 36-LCC | Tube | Active | Digital Compass | X, Y, Z | ±2 Gauss | Heading, Pitch and Roll | 0.1° | I2C | -40°C ~ 85°C |
|
HMR3300MODULE DIG COMPASS UART 3 AXIS |
4,079 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Active | Digital Compass | X, Y, Z | ±2 Gauss, ±60° | Heading, Pitch and Roll | 100µGauss, 0.1° | UART, SPI | -20°C ~ 70°C |
|
HMR3300-D00-232MODULE DIGITAL COMPASS 3-AXIS |
2,000 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Active | Digital Compass | X, Y, Z | ±2 Gauss, ±60° | Heading, Pitch and Roll | 100µGauss, 0.1° | RS-232 | -20°C ~ 70°C |
|
HMR2300-D00-232MAGNETOMETER RS232 |
1,168 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Active | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-232 | -40°C ~ 85°C |
|
HMC2003SENSOR HYBRID MAGN 3 AXIS 20-DIP |
4,205 | - |
|
Datasheet | HMC | 20-DIP Module | Bulk | Active | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 40µGauss | Analog | -40°C ~ 85°C |
|
HMR2300-D00-485MAGNETOMETER RS485 |
1,225 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Active | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-485 | -40°C ~ 85°C |
|
HMR2300-D21-485MAGNETOMETER RS485 W/CASE |
4,507 | - |
|
Datasheet | HMR | Module with Case | Bulk | Active | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-485 | -40°C ~ 85°C |
|

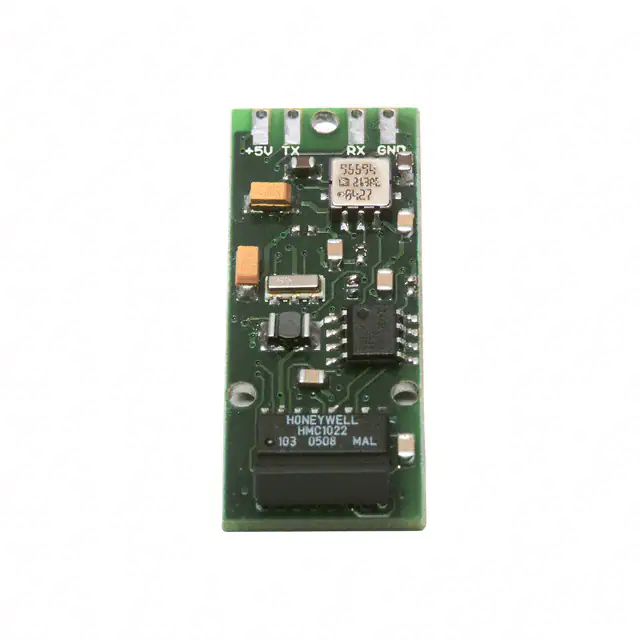

HMR34003-AXIS TILT COMPENSATED COMPASS |
2,794 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±2 Gauss, ±60° | Heading, Pitch and Roll | 100µGauss, 0.1° | UART, SPI | -20°C ~ 70°C |
|

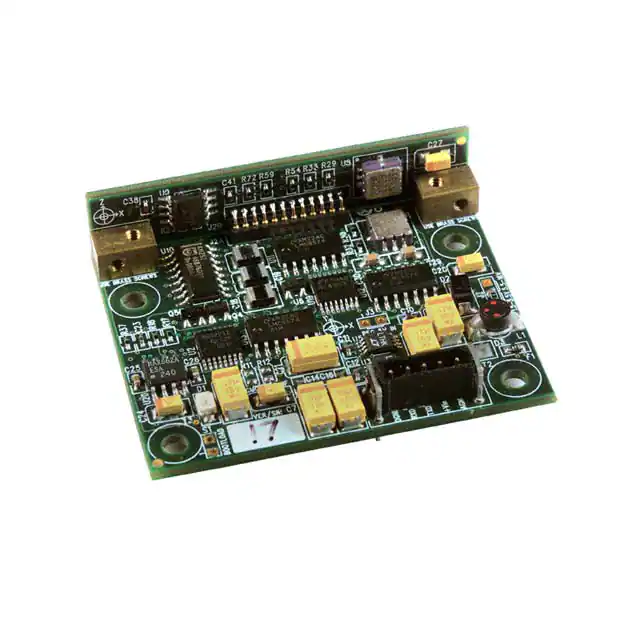

HMR35003-AXIS COMPASS MODULE |
3,380 | - |
|
Datasheet | TruePoint™ | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±700 mGauss, ±180° (X), ±80° (Y) | Heading, Pitch and Roll | 450µGauss, 0.04° | RS-232 | -40°C ~ 85°C |
|
HMR3601COMPASS |
3,519 | - |
|
Datasheet | µPOINT® | 3-SMD Module | Box | Obsolete | Digital Magnetometer | X, Y, Z | ±0.9 Gauss | Heading, Pitch and Roll | 150µGauss, 0.15°, 0.2° | Serial | - |
Compass, Magnetic Field (Modules) FAQ
Common questions about filtering, comparing and sourcing Compass, Magnetic Field (Modules) components.
How can I narrow the Compass, Magnetic Field (Modules) selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Compass, Magnetic Field (Modules) part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
