Compass, Magnetic Field (Modules)
Browse available Compass, Magnetic Field (Modules) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Axis | Measuring Range | For Measuring | Resolution | Interface | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMR34003-AXIS TILT COMPENSATED COMPASS |
2,794 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±2 Gauss, ±60° | Heading, Pitch and Roll | 100µGauss, 0.1° | UART, SPI | -20°C ~ 70°C |
|
HMR35003-AXIS COMPASS MODULE |
3,380 | - |
|
Datasheet | TruePoint™ | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±700 mGauss, ±180° (X), ±80° (Y) | Heading, Pitch and Roll | 450µGauss, 0.04° | RS-232 | -40°C ~ 85°C |
|
HMR3601COMPASS |
3,519 | - |
|
Datasheet | µPOINT® | 3-SMD Module | Box | Obsolete | Digital Magnetometer | X, Y, Z | ±0.9 Gauss | Heading, Pitch and Roll | 150µGauss, 0.15°, 0.2° | Serial | - |
|
HMR2300-D21-232MAGNETOMETER RS232 W/CASE |
2,455 | - |
|
Datasheet | HMR | Module with Case | Bulk | Active | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-232 | -40°C ~ 85°C |
|

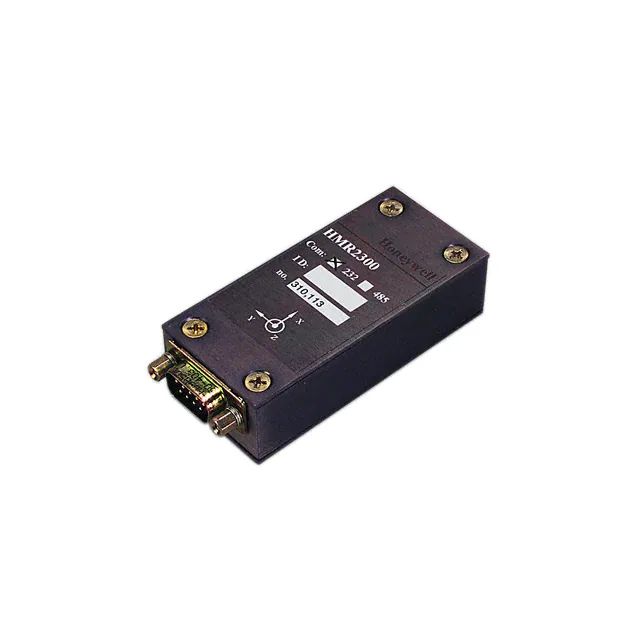

HMR2300-D20-232MAGNETOMETER RS232 W/CASE |
4,720 | - |
|
Datasheet | HMR | Module with Case | Bulk | Obsolete | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-232 | -40°C ~ 85°C |
|
HMR2300-D20-485MAGNETOMETER RS485 W/CASE |
3,234 | - |
|
Datasheet | HMR | Module with Case | Bulk | Obsolete | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-485 | -40°C ~ 85°C |
|
HMR2300R-485MAGNETOMETER RS485 3 AXIS |
1,012 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-485 | -40°C ~ 85°C |
|
|
HMR2300R-422MAGNETOMETER RS232 3 AXIS |
2,357 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Magnetometer | X, Y, Z | ±2 Gauss | Strength, Direction of Magnetic Field | 67µGauss | RS-232 | -40°C ~ 85°C |
|

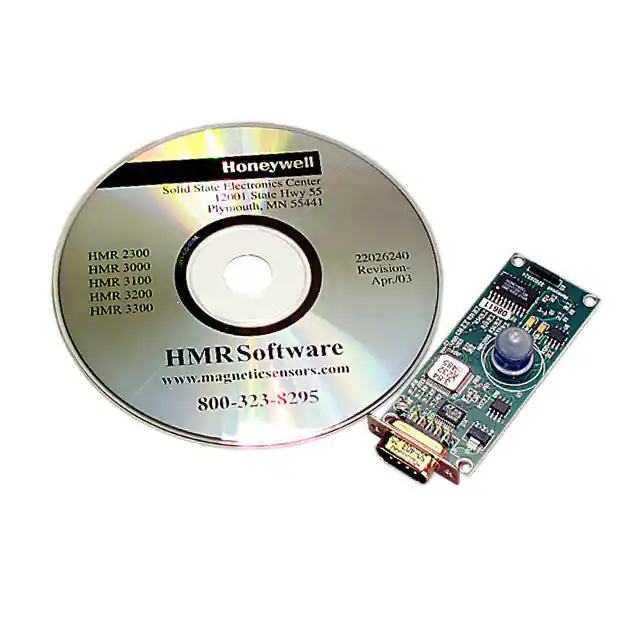

HMR3000-D00-232MODULE DIGITAL COMPASS RS232 |
3,748 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±1 Gauss, ±40° | Heading, Pitch and Roll | 1µGauss, 0.1° | RS-232 | -20°C ~ 70°C |
|
HMR3000-D21-232MODULE DIG COMPASS W/CASE RS232 |
2,672 | - |
|
Datasheet | HMR | Module with Case | Bulk | Obsolete | Digital Compass | X, Y, Z | ±1 Gauss, ±40° | Heading, Pitch and Roll | 1 mGauss, 0.1° | RS-232 | -20°C ~ 70°C |
|

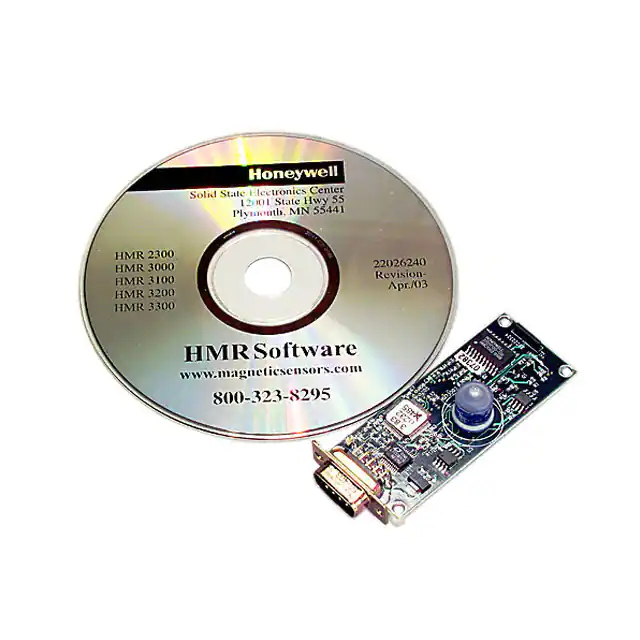

HMR3000-D00-485MODULE DIGITAL COMPASS RS485 |
1,114 | - |
|
Datasheet | HMR | Module (No Case) | Bulk | Obsolete | Digital Compass | X, Y, Z | ±1 Gauss, ±40° | Heading, Pitch and Roll | 1µGauss, 0.1° | RS-485 | -20°C ~ 70°C |
|

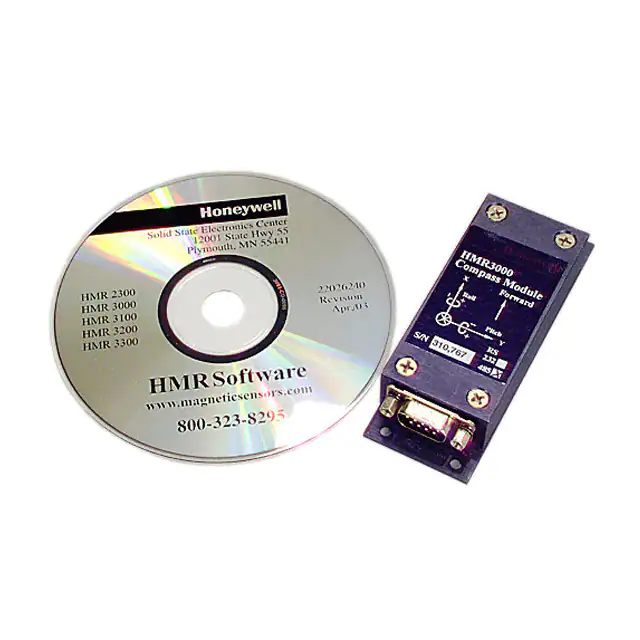

HMR3000-D21-485MODULE DIG COMPASS W/CASE RS485 |
4,558 | - |
|
Datasheet | HMR | Module with Case | Bulk | Obsolete | Digital Compass | X, Y, Z | ±1 Gauss, ±40° | Heading, Pitch and Roll | 1µGauss, 0.1° | RS-485 | -20°C ~ 70°C |
|

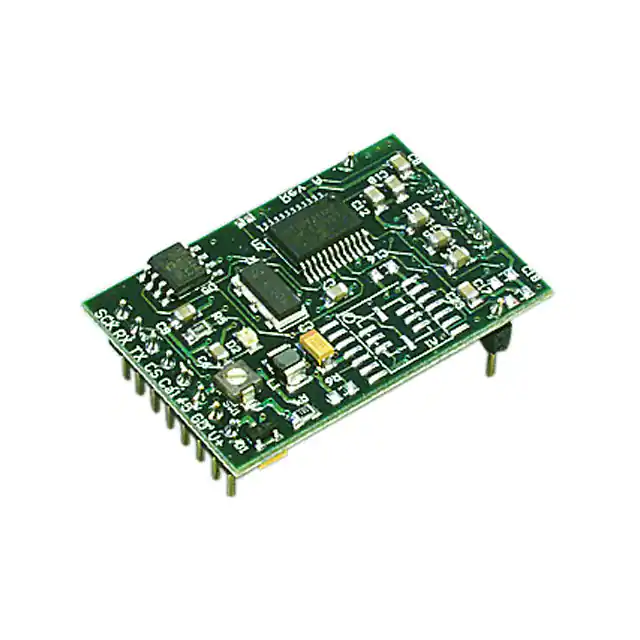

HMR3200MODULE DIG COMPASS UART 2 AXIS |
2,445 | - |
|
Datasheet | HMR | Module (No Case) | - | Obsolete | Digital Compass | X, Y | ±2 Gauss | Heading | 100µGauss | UART, SPI | -40°C ~ 85°C |
|

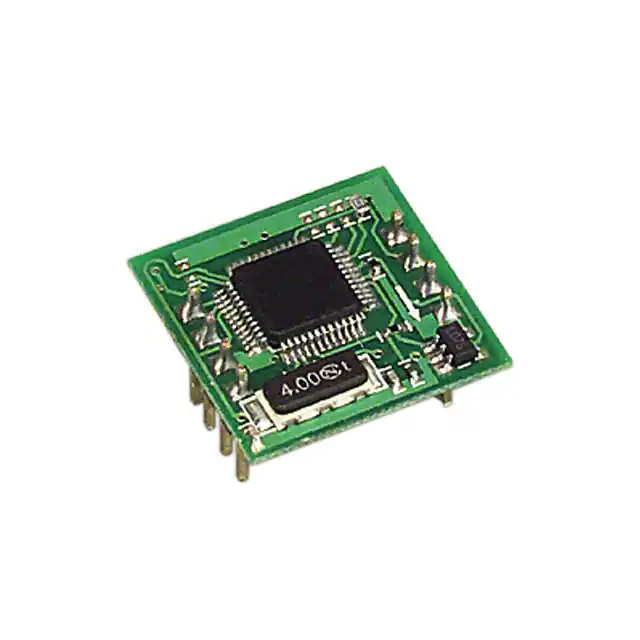

HMR3100MODULE DIGITAL COMPASS 2-AXIS |
1,555 | - |
|
Datasheet | HMR | Module | - | Obsolete | Digital Compass | X, Y | ±2 Gauss | Heading | 0.5° | Digital | 0°C ~ 70°C |
|

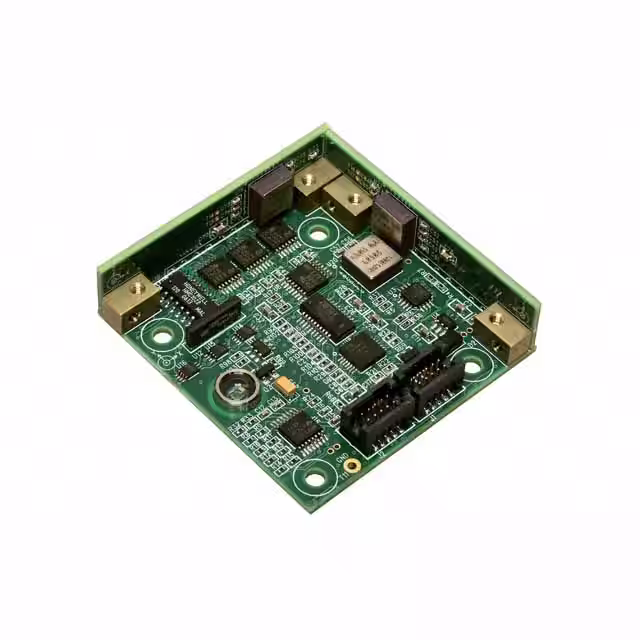

DRM4000-N00-232DRM 4000 MODULE |
3,439 | - |
|
Datasheet | DRM™ | Module | Bulk | Obsolete | Dead Reckoning Module | X, Y, Z | - | Heading | - | RS-232 | -40°C ~ 85°C |
|

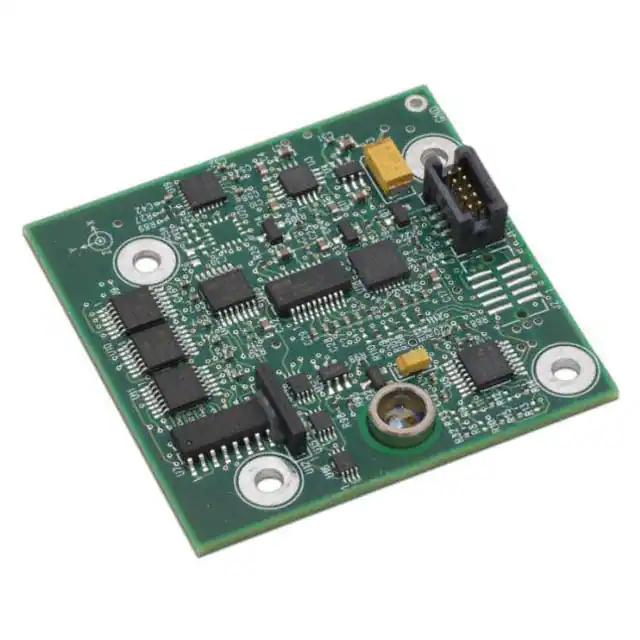

DRM4000L-N00-232MODULE DEAD RECKONING RS-232 |
3,530 | - |
|
Datasheet | DRM™ | Module | Bulk | Obsolete | Dead Reckoning Module | X, Y, Z | - | Heading | - | RS-232 | -40°C ~ 85°C |
|
S18MB W/50S18MB W/50 MAGNETIC SENSOR |
2,334 | - |
|
Datasheet | S18M | Cylinder, Threaded - M12 | Box | Obsolete | Digital Magnetometer | X, Y, Z | - | Heading | - | Digital | -40°C ~ 70°C |
|
USB2510AAX MAGNETOMETER HIGH-FIELD USB |
4,079 | - |
|
Datasheet | - | Probe | Bulk | Active | Digital Magnetometer | X | ±30 kGauss | Strength, Direction of Magnetic Field | - | I2C, USB 2.0 | -40°C ~ 125°C |
|
USB251033D MAGNETOMETER HIGH-FIELD USB |
4,394 | - |
|
Datasheet | - | Probe | Bulk | Obsolete | Digital Magnetometer | X, Y, Z | ±20 kGauss | Strength, Direction of Magnetic Field | - | I2C, USB 2.0 | -40°C ~ 85°C |
|
|
USB2510TTXVS MAGNETOMETER HIGH-FIELD USB |
4,734 | - |
|
Datasheet | - | Probe | Bulk | Active | Digital Magnetometer | X | ±30 kGauss | Strength, Direction of Magnetic Field | - | I2C, USB 2.0 | -40°C ~ 125°C |
Compass, Magnetic Field (Modules) FAQ
Common questions about selecting, comparing and sourcing Compass, Magnetic Field (Modules) components through Winsun (HK) Electronics.
What should I check when selecting Compass, Magnetic Field (Modules) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Compass, Magnetic Field (Modules) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Compass, Magnetic Field (Modules) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Compass, Magnetic Field (Modules) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
