Multi Purpose Magnets
Browse available Multi Purpose Magnets part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSM-313MAGNET 0.500"LX0.138"WX0.390"H |
468 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Acrylonitrile Butadiene Styrene (ABS) | N48H | 13950G | 0.500" L x 0.138" W x 0.390" H (12.70mm x 3.50mm x 9.90mm) | 85°C (TA) |
|

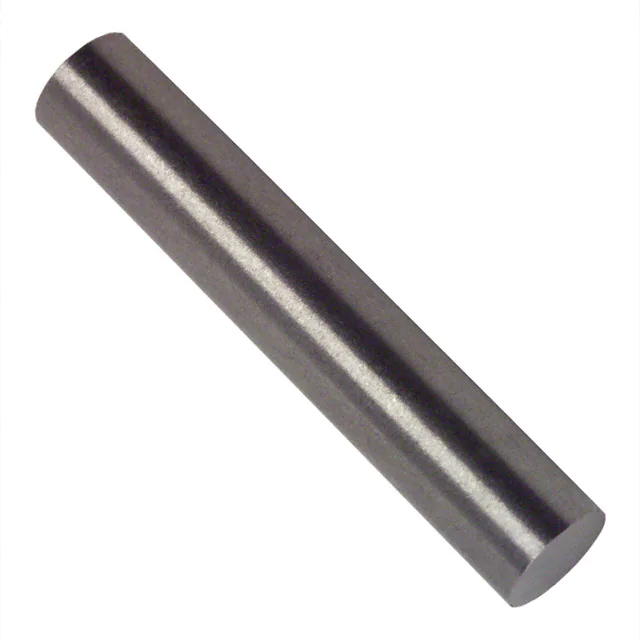

H-36-MAGNETMAGNET 0.182"D X 1.000"THICK CYL |
109 | - |
|
Datasheet | - | Tray | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 12800G (Flux Density) | 0.182" Dia x 1.000" H (4.62mm x 25.4mm) | 450°C (TA) |
|
MSM-332MAGNET 1.260"LX0.236"WX0.394"H |
699 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Acrylonitrile Butadiene Styrene (ABS) | N30H | 11050G | 1.260" L x 0.236" W x 0.394" H (32.00mm x 6.00mm x 10.00mm) | 85°C (TA) |
|
9168MAGNET 1.500"LX0.250"WX0.250"H |
181 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 3799.69G | 1.500" L x 0.250" W x 0.250" H (38.10mm x 6.35mm x 6.35mm) | 80°C (TA) |
|
9161MAGNET 1.000"D X 0.125"THICK CYL |
6,183 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 1803G | 1.000" Dia x 0.125" H (25.40mm x 3.18mm) | 80°C (TA) |
|

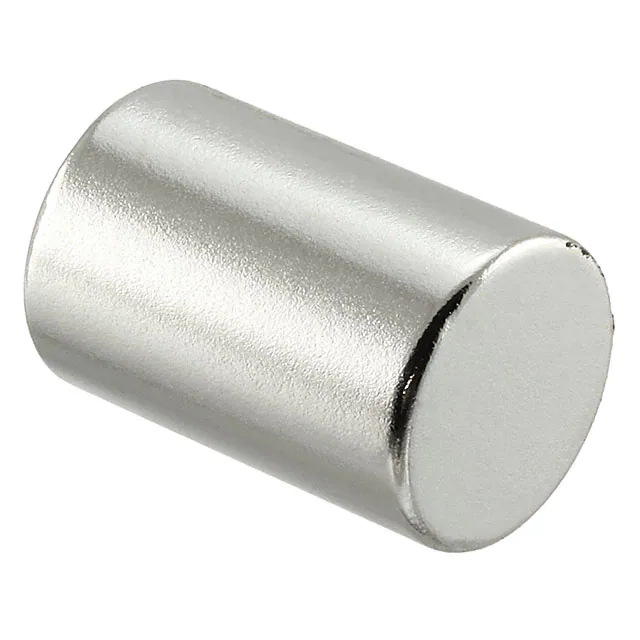

8197MAGNET 0.500"D X 0.750"THICK CYL |
166 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | - | - | 5505G (Surface Gauss) | 0.500" Dia x 0.750" H (12.7mm x 19.0mm) | - |
|
8223MAGNET 0.980"D X 0.310"THICK RND |
215 | - |
|
Datasheet | - | Bulk | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.980" Dia x 0.310" H (25.0mm x 8.00mm) | 80°C (TA) |
|
8168MAGNET 1.000"D X 0.375"THICK CYL |
115 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3570G (Surface Gauss) | 1.000" Dia x 0.375" H (25.4mm x 9.53mm) | 80°C (TA) |
|

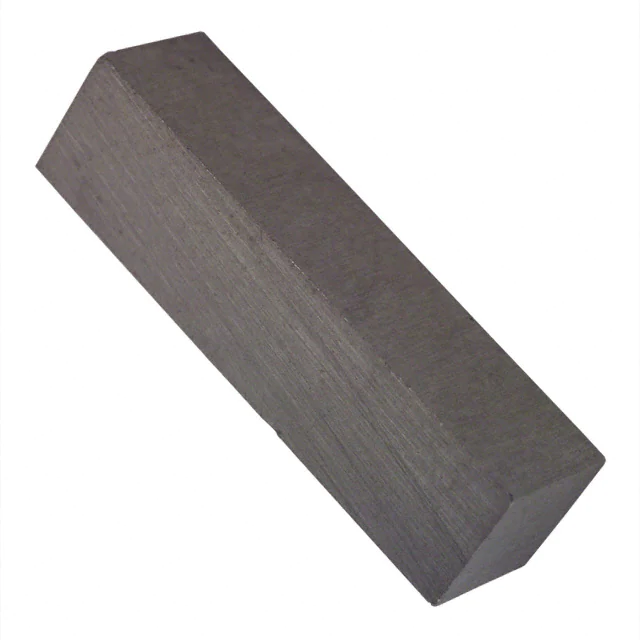

H-34-MAGNETMAGNET 0.250" SQ X 1.000" H RECT |
299 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | 1300G (Flux Density) | 0.250" Sq x 1.000" H (6.35mm x 25.4mm) | 450°C (TA) |
|

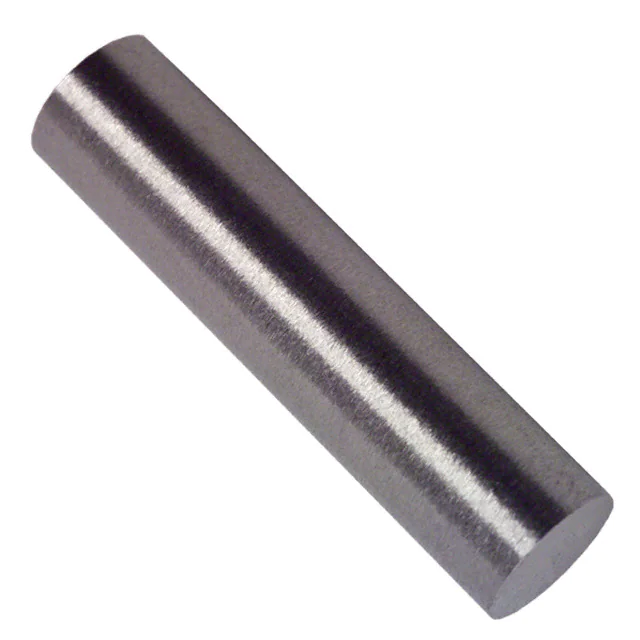

625-MAGNETMAGNET 0.236"D X 0.984"THICK CYL |
180 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 11000G (Flux Density) | 0.236" Dia x 0.984" H (6.00mm x 25.0mm) | - |
|

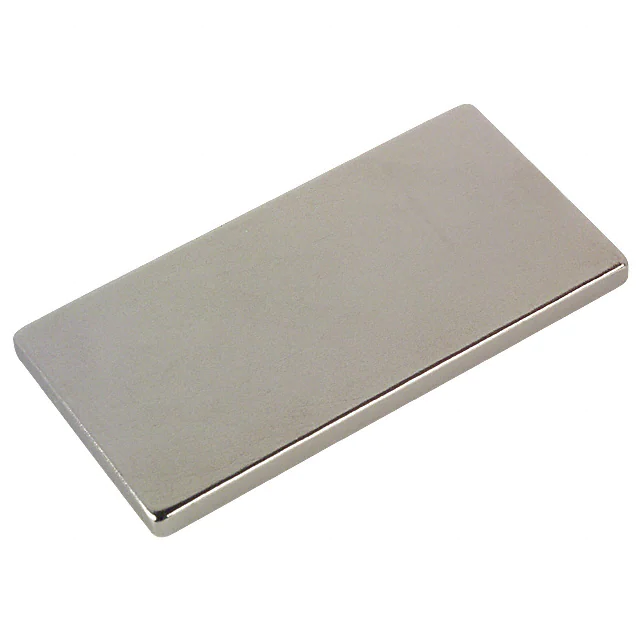

8027MAGNET 2.000"LX1.000"WX0.125"H |
586 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3423G (Surface Gauss) | 2.000" L x 1.000" W x 0.125" H (50.80mm x 25.4mm x 3.18mm) | 80°C (TA) |
|
8340MAGNET 1.650"D X 0.350"THICK RND |
103 | - |
|
Datasheet | - | Box | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 1.650" Dia x 0.350" H (42.0mm x 9.00mm) | 80°C (TA) |
|

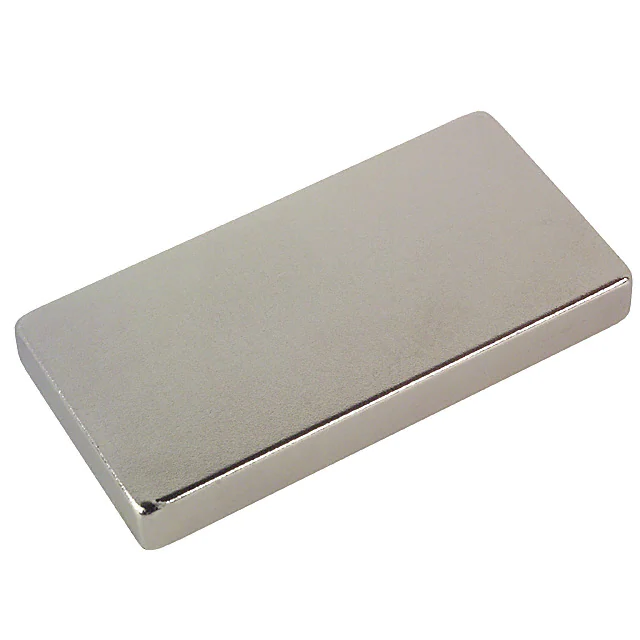

8117MAGNET 2.000"LX1.000"WX0.250"H |
979 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4499G (Surface Gauss) | 2.000" L x 1.000" W x 0.250" H (50.8mm x 25.4mm x 6.35mm) | 80°C (TA) |
|
101MG7-BPMAGNET 0.248"D X 0.248"THICK CYL |
3,320 | - |
|
Datasheet | MG | Bulk | Active | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.248" Dia x 0.248" H (6.30mm x 6.30mm) | 250°C (TA) |
|
102MG11-BPMAGNET 0.311"D X 0.669"THICK CYL |
119 | - |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|
102MG11MAGNET 0.311"D X 0.669"THICK CYL |
1,451 | - |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|
8177MAGNET 0.500"D X 0.200"THICK CYL |
185 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3649G (Surface Gauss) | 0.500" Dia x 0.200" H (12.7mm x 5.08mm) | 80°C (TA) |
|
|
8023MAGNET 0.750"D X 0.187"THICK CYL |
226 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 2663G (Surface Gauss) | 0.750" Dia x 0.187" H (19.0mm x 4.76mm) | 80°C (TA) |
|
MSM-320MAGNET 0.787"LX0.236"WX0.276"H |
288 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Polyamide, Glass Filled (PA-GF) | N35SH | 11900G | 0.787" L x 0.236" W x 0.276" H (20.00mm x 6.00mm x 7.00mm) | 85°C (TA) |
|
MSM-228MAGNET 0.315"D X 1.496"THICK CYL |
116 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Polyamide | N35H | 11900G | 0.315" Dia x 1.496" H (8.00mm x 38.00mm) | 85°C (TA) |
Multi Purpose Magnets FAQ
Common questions about selecting, comparing and sourcing Multi Purpose Magnets components through Winsun (HK) Electronics.
What should I check when selecting Multi Purpose Magnets components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Multi Purpose Magnets part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Multi Purpose Magnets parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Multi Purpose Magnets components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
