Photodiodes
Browse available Photodiodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KPDEA005-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
1,135 | - |
|
Datasheet | - | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.95 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 10nA | 0.06mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
KPDEA005B-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
2,835 | - |
|
Datasheet | - | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.95 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 20nA | 50µm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
UVG12SENSOR PHOTODIODE UV 4.1MM |
1,770 | - |
|
Datasheet | UVG | - | Tray | Active | - | - | - | - | 0.115 A/W @ 254nm | 4µs | - | - | 13.2mm² | 45° | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-014SENSOR PHOTODIODE UV TO5 |
3,348 | - |
|
Datasheet | - | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Discontinued at Digi-Key | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 4µs | 10 V | - | 13.2mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
444-12-12-171SENSOR PHOTODIODE 660NM |
2,427 | - |
|
Datasheet | - | - | Bulk | Active | 660nm | Blue | 350nm ~ 1100nm | PIN | 0.28 A/W @ 450nm | 13ns | 75 V | 13nA | 99.93mm² | 95° | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
KPDEA007-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
1,094 | - |
|
Datasheet | - | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.9 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 15nA | 0.08mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|

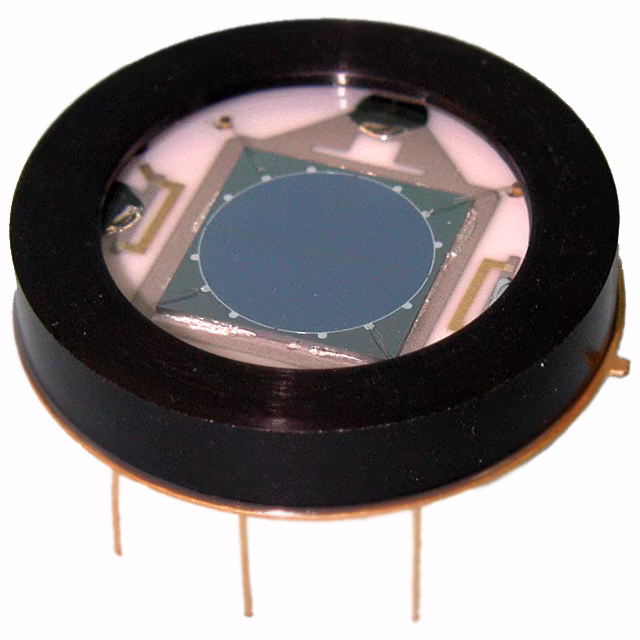

380-23-21-251SENSOR PHOTODIODE 660NM TO8 |
1,189 | - |
|
Datasheet | - | - | Bulk | Active | 660nm | Red | 350nm ~ 1100nm | - | 0.55 A/W @ 900nm | 13ns | 50 V | 5nA | 5.338mm² (x4) | 120° | -40°C ~ 125°C | - | - | Through Hole |
|
UVG20CSENSOR PHOTODIODE 19MM2 |
1,663 | - |
|
Datasheet | UVG | - | Bulk | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 1.7µs | 50 V | - | - | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-004SENSOR PHOTODIODE UV TO233AA |
3,751 | - |
|
Datasheet | - | TO-233AA, TO-8-3 Lens Top Metal Can | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 1.7µs | 20 V | 30nA | 19mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
C30950EHSENSOR PHOTODIODE 900NM TO8 |
4,763 | - |
|
Datasheet | C30950 | TO-8 Style, 12 Leads | Box | Active | 900nm | - | 400nm ~ 1100nm | Avalanche | 560 KV/W @ 900nm | 10ns | 425 V | - | 0.5mm² | 130° | -40°C ~ 70°C | - | - | Through Hole |
|
|
ARRAYC-30020-16P-PCBSENSOR PHOTODIODE 420NM 84CLCC |
3,564 | - |
|
Datasheet | C-SERIES SIPM | 84-CLCC Window (J-Lead) | Bulk | Active | 420nm | - | - | - | - | - | - | - | 9mm² | - | - | - | - | Surface Mount |
|
|
C30665GHSENSOR PHOTODIODE 850/1300NM TO5 |
2,533 | - |
|
Datasheet | C30665 | TO-205AA, TO-5-3 Metal Can | Box | Active | 850nm, 1300nm, 1550nm | - | 800nm ~ 1700nm | PIN | 0.2 A/W @ 850nm, 0.9 A/W @ 1300nm, 0.95 A/W @ 1550nm | - | 50 V | 25nA | 3mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
UVG5SSENSOR PHOTODIODE UV 5MM2 |
4,973 | - |
|
Datasheet | UVG | - | Tray | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 1µs | - | 1nA | 5mm² | 45° | -20°C ~ 80°C | - | - | Through Hole |
|
UVG20SSENSOR PHOTODIODE UV 24MM2 |
4,267 | - |
|
Datasheet | UVG | - | Tray | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 4µs | 50 V | - | 24mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-013SENSOR PHOTODIODE 2DIP MOD |
1,415 | - |
|
Datasheet | - | 2-DIP Module | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 4µs | 50 V | - | 24mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-007SENSOR PHOTODIODE TO5 |
1,276 | - |
|
Datasheet | - | TO-205AA, TO-5-3 Metal Can | Bulk | Active | - | Ultraviolet (UV) | 225nm ~ 400nm | - | - | 1µs | 50 V | 1nA | 5mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
PIN-10DFSENSOR PHOTODIODE 450-950NM MOD |
1,137 | - |
|
Datasheet | Photovoltaic | Module | Canister | Active | - | - | - | Planar Diffusion | 0.15 A/W @ 550nm | - | - | - | 100mm² | - | 0°C ~ 70°C | - | - | Panel Mount |
|
|
AXUV100TF030SENSOR PHOTODIODE 3NM |
4,854 | - |
|
Datasheet | AXUV | - | Bulk | Active | 3nm | - | 1nm ~ 12nm | - | - | - | 10 V | - | 100mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
|
ODD-UVG-002SENSOR PHOTODIODE 2DIP MOD |
3,861 | - |
|
Datasheet | - | 2-DIP Module | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 10µs | 10 V | - | 100mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
C30662ECERHSENSOR PHOTODIODE 1550NM 2SMD |
3,743 | - |
|
Datasheet | C30662 | 2-SMD | Box | Active | 1550nm | - | 1100nm ~ 1700nm | Avalanche | 9.3 A/W @ 1550nm | - | 70 V | 150nA | 200µm | - | -20°C ~ 70°C | - | - | Surface Mount |
Photodiodes FAQ
Common questions about selecting, comparing and sourcing Photodiodes components through Winsun (HK) Electronics.
What should I check when selecting Photodiodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Photodiodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Photodiodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Photodiodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
