Logic Output Optoisolators
Use the filters and product table below to compare Logic Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11N1OPTOCOUPLER SCMITT TRIGGER OUT |
3,246 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
|
H11N1300OPTOCOUP VDE SCHM TRIG OUT 6DIP |
1,717 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
H11N1300WOPTOCOUP VDE WIDE SCHM TRIG 6DIP |
3,093 | - |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
H11N13SOPTOCOUP VDE SCHM TRIG OUT SMD |
4,919 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Bag | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Surface Mount | 6-SMD |
|
|
H11N1SOPTOCOUPLER SCHMITT TRIG OUT SMD |
2,317 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Bag | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Surface Mount | 6-SMD |
|
|
H11N1WOPTOCOUP WIDE SCHM TRIG OUT 6DIP |
3,828 | - |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
HCPL0661OPTOISO 3.75KV 2CH OPEN COLL 8SO |
4,723 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
FOD063LOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,508 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | - | 1.75V (Max) | 50mA | 2.7V ~ 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|

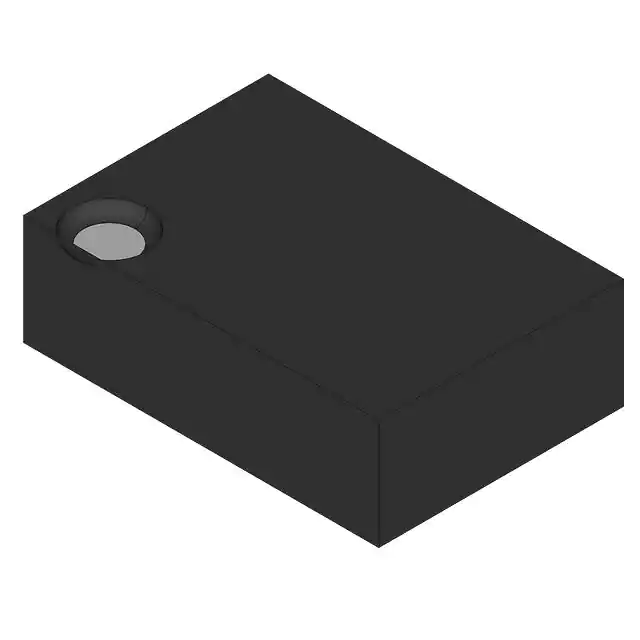

H11N2SR2MOPTOISO 4.17KV OPN COLL 6SMD |
3,563 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11N2SR2VMOPTOISO 4.17KV OPN COLL 6SMD |
4,917 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
Logic Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Logic Output Optoisolators components.
How can I narrow the Logic Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Logic Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
