Logic Output Optoisolators
Browse available Logic Output Optoisolators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9122-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,616 | - |
|
Datasheet | NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
HCPL-2201#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
1,340 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACSL-6210-06REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
2,854 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
HCPL-0211#500OPTOISO 3.75KV PUSH PULL 8SO |
1,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL2631SDOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
1,248 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6750-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
1,364 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 100V/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
VO2630-X009TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
138 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
HCPL-7720-060EOPTOISO 3.75KV PUSH PULL 8DIP |
4,679 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ACFL-6212T-560EOPTOISO 5KV 2CH PSH PULL SO12 |
2,651 | - |
|
Datasheet | R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
PS9113-V-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,217 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
ACPL-W70L-060EOPTOISO 5KV PUSH PULL 6SSO |
2,134 | - |
|
Datasheet | - | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SSO |
|
|
PS9817A-1-F3-AXOPTOISO 2.5KV OPEN COLL 8SSOP |
2,664 | - |
|
Datasheet | NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
HCPL-J456-500EOPTOISO 3.75KV OPEN COLL 8DIP GW |
3,000 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
.jpg "PS9324L2-AX")
|
PS9324L2-AXOPTOISO 5KV OPEN COLLECTOR 6SMD |
3,021 | - |
|
Datasheet | - | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
SFH6755TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
718 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 4000Vrms | 100V/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
PS9317L-AXOPTOISO 5KV OPEN COLL 6DIP GW |
3,701 | - |
|
Datasheet | NEPOC | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 6-SDIP Gull Wing |
|
FOD0738LOGIC IC OUTPUT OPTOCOUPLER |
2,352 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
FOD0738R1LOGIC IC OUTPUT OPTOCOUPLER |
1,887 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|

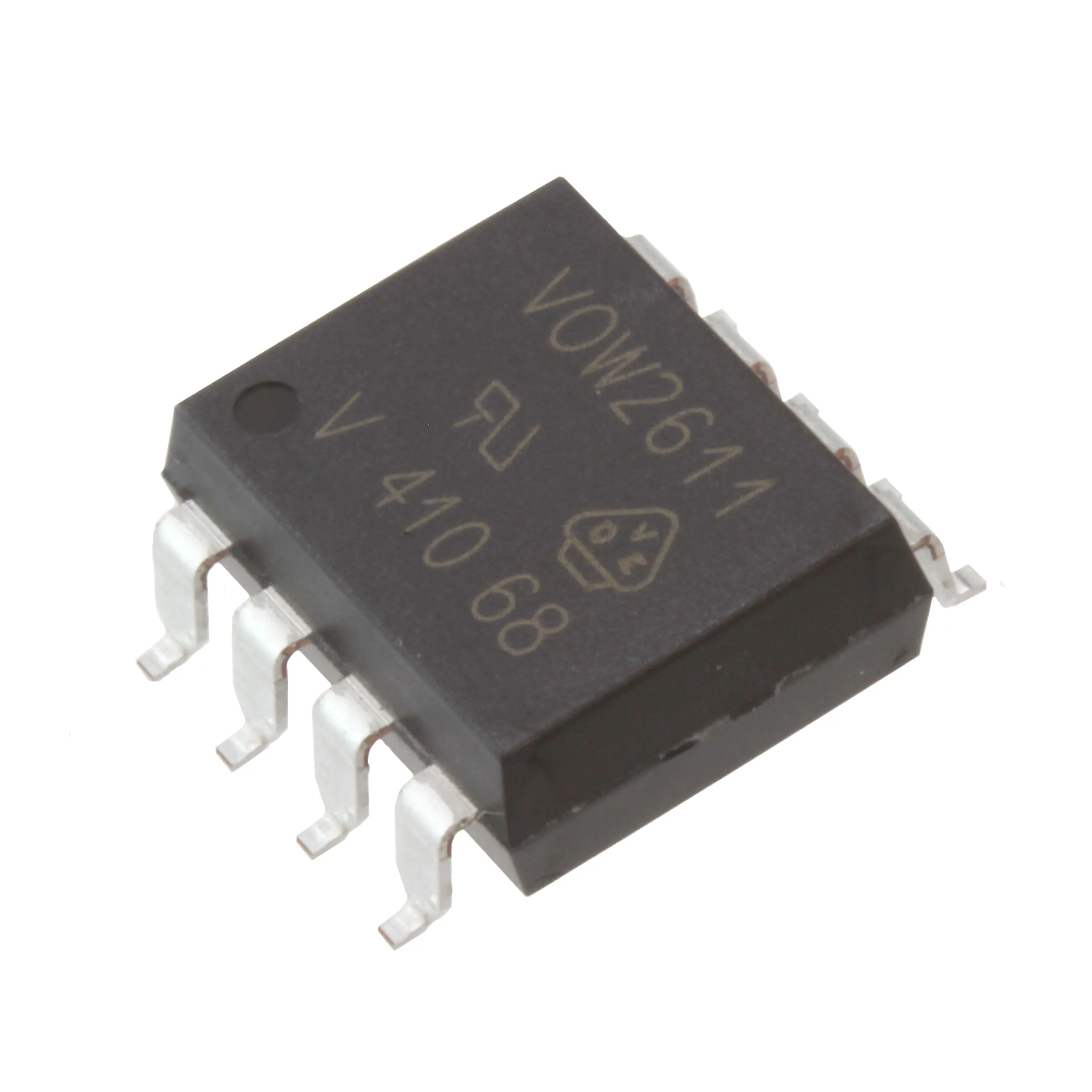

VOW2611-X017TOPTOISO 5.3KV OPN COLLECTOR 8SMD |
498 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
ACPL-W456-500EOPTOISO 5KV OPEN COLLECTOR 6SO |
3,000 | - |
|
Datasheet | - | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
Logic Output Optoisolators FAQ
Common questions about selecting, comparing and sourcing Logic Output Optoisolators components through Winsun (HK) Electronics.
What should I check when selecting Logic Output Optoisolators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Logic Output Optoisolators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Logic Output Optoisolators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Logic Output Optoisolators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
