Transistor, Photovoltaic Output Optoisolators
Browse available Transistor, Photovoltaic Output Optoisolators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

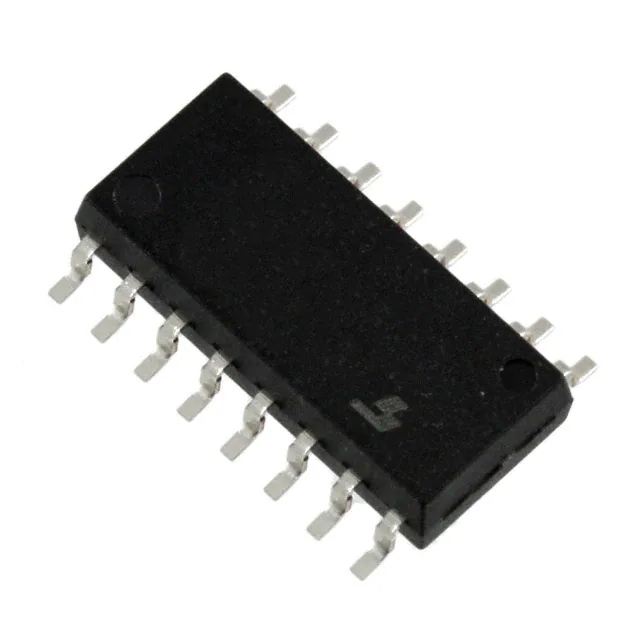

TLP293-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
9,335 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
6,134 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
FOD2712AR2OPTOISO 2.5KV TRANSISTOR 8SOIC |
5,323 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
TLP293-4(GB,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,918 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tube | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
3,730 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP290-4(TP,EOPTOISOLTR 2.5KV 4CH TRANS 16-SO |
2,348 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
TLP290-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
476 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|

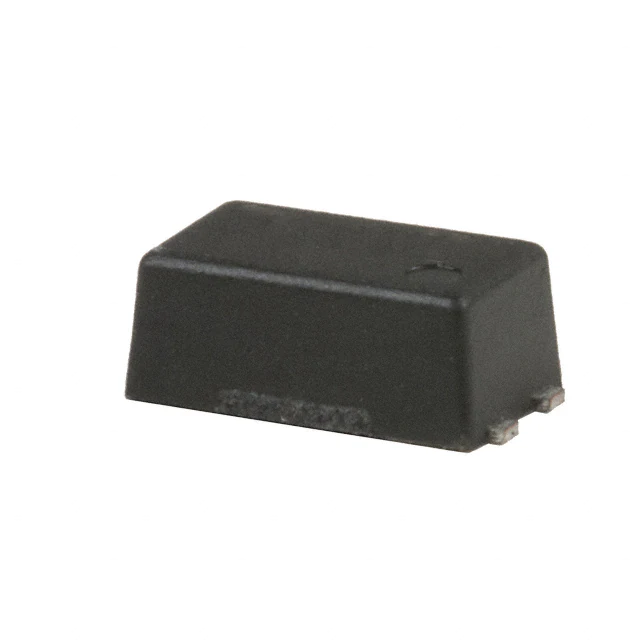

APV2111VYOPTOISO 1.5KV PHOTOVOLTAIC 4SSOP |
9,146 | - |
|
Datasheet | - | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 1500Vrms | - | - | 800µs, 100µs | - | DC | Photovoltaic | 8.2V | 8µA | 1.15V | 50 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 4-SSOP |
|
6N139-000EOPTOISO 3.75KV DARL W/BASE 8DIP |
9,837 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
FODM8801CR2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
7,055 | - |
|
Datasheet | OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 1mA | 400% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
|
TLP292-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
43,953 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTR,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,772 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
781 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
6N136SDMOPTOISO 5KV TRANS W/BASE 8SMD |
3,567 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
6N136-000EOPTOISO 3.75KV TRANS W/BASE 8DIP |
6,176 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
TLP3905(TPR,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
2,874 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PS2501-4XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
1,768 | - |
|
Datasheet | - | 16-SMD, Gull Wing | Tube | Active | 4 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
TLP3905(TPL,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
384 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PC452J00000FOPTOISOLATOR 3.75KV DARL 4SMD |
20,880 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
ILD256TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
3,406 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | 2 | 4000Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about selecting, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components through Winsun (HK) Electronics.
What should I check when selecting Transistor, Photovoltaic Output Optoisolators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Transistor, Photovoltaic Output Optoisolators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Transistor, Photovoltaic Output Optoisolators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
