Transistor, Photovoltaic Output Optoisolators
Use the filters and product table below to compare Transistor, Photovoltaic Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC853XIOPTOISOLATOR 5KV DARL 4SMD |
4,643 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC957L0NSZ0FOPTOISOLTR 5KV TRANSISTOR 8-DIP |
1,475 | - |
|
Datasheet | OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 85°C | Through Hole | 8-DIP |
|
PC817X0J000FOPTOISOLATOR 5KV TRANS 4DIP |
3,663 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC81411NSZ0FOPTOISOLATOR 5KV TRANS 4DIP |
4,891 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC817XI1J00FOPTOISOLATOR 5KV TRANS 4SMD |
4,464 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|

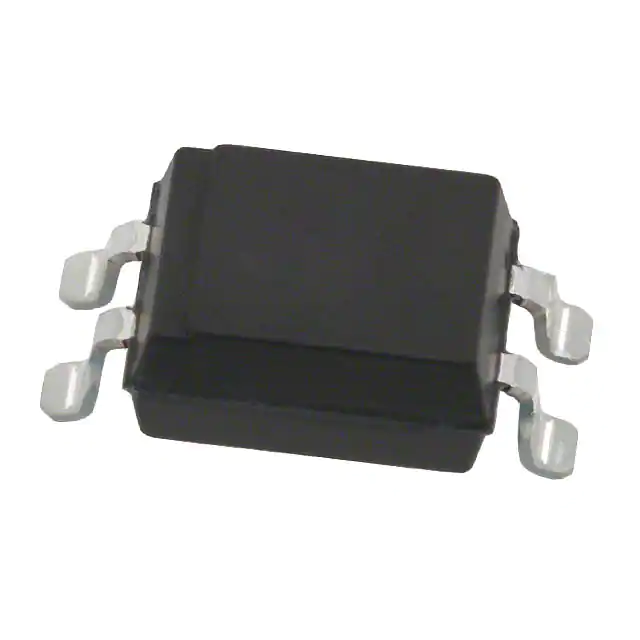

PC817X2NIP0FOPTOISOLATOR 5KV TRANS 4SMD |
2,647 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 5000Vrms | 130% @ 5mA | 230% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC844X1J000FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
2,846 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
|
PC844IJ1J00FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
1,290 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
|

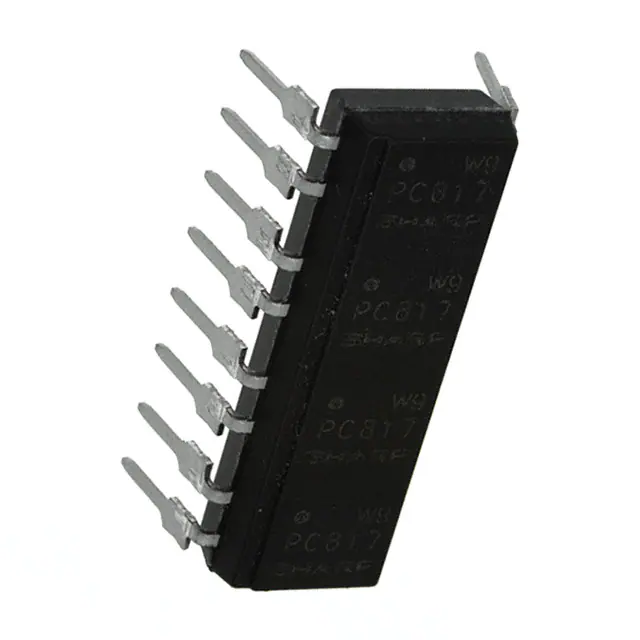

PC847XJ0000FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
4,911 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
|
|
PC844XJ0000FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
3,686 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components.
How can I narrow the Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Transistor, Photovoltaic Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
