Transistor, Photovoltaic Output Optoisolators
Use the filters and product table below to compare Transistor, Photovoltaic Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

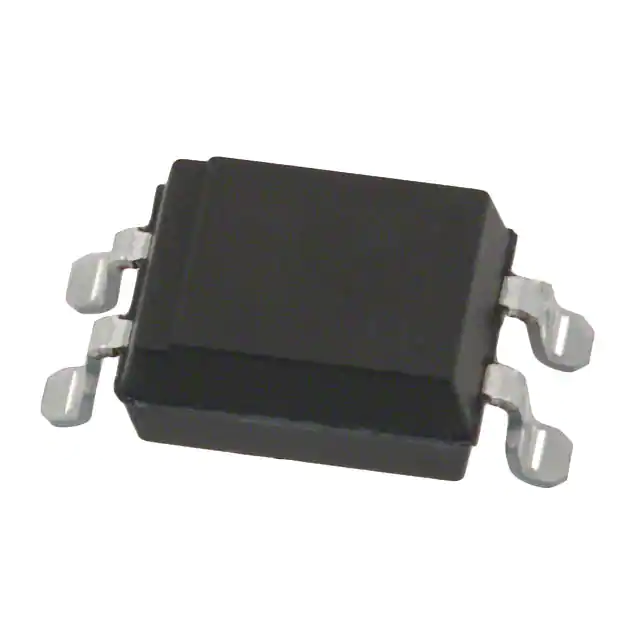

PC123XNYIP0FOPTOISOLATOR 5KV TRANSISTOR 4SMD |
4,400 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC123XNYSZ0FOPTOISOLATOR 5KV TRANSISTOR 4DIP |
1,948 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC81510NSZ0XOPTOISOLATOR 5KV DARL 4DIP |
3,539 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC815XNNSZ0FOPTOISOLATOR 5KV DARL 4DIP |
2,855 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC815XNYSZ0FOPTOISOLATOR 5KV DARL 4DIP |
2,659 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | - |
|
|
PC81711NSZ0XOPTOISOLATOR 5KV TRANS 4DIP |
1,663 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 120% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
PC81712NIP0XOPTOISOLATOR 5KV TRANS 4SMD |
4,133 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 160% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC81716NIP0XOPTOISOLATOR 5KV TRANS 4SMD |
1,604 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 5000Vrms | 160% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC81718NIP0XOPTOISOLATOR 5KV TRANS 4SMD |
2,279 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 120% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
PC817X9NSZ0FOPTOISOLATOR 5KV TRANS 4DIP |
3,870 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 130% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components.
How can I narrow the Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Transistor, Photovoltaic Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
