Transistor, Photovoltaic Output Optoisolators
Use the filters and product table below to compare Transistor, Photovoltaic Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N48OPTOISO 1KV TRANS W/BASE TO78-6 |
1,568 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 100% @ 1mA | 500% @ 1mA | - | 20µs, 20µs | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JANTXV4N48OPTOISO 1KV TRANS W/BASE TO78-6 |
4,925 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 100% @ 1mA | 500% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JANTXV4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
2,848 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
OPI150TXOPTOISO 50KV TRANS W/BASE AXIAL |
2,467 | - |
|
Datasheet | - | Axial - 5 Leads | Bulk | Obsolete | 1 | 50000VDC | 10% @ 10mA | - | - | 8µs, 8µs | DC | Transistor with Base | 50V | 50mA | 1.4V | 100 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | Axial |
|
|
OPI153OPTOISOLTR 50KV DARLINGTON AXIAL |
1,722 | - |
|
Datasheet | - | Axial - 5 Leads | Bulk | Active | 1 | 50000VDC | 25% @ 20mA | - | 120µs, 70µs | - | DC | Darlington | 15V | 25mA | 1.3V | 50 mA | 1.2V | - | - | -40°C ~ 85°C | Through Hole | Axial |
|

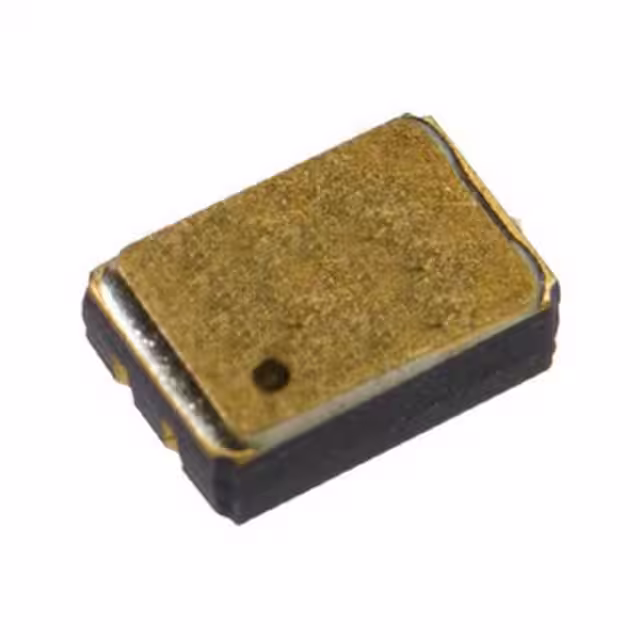

HCC1002RADIATION CAPABLE OPTOISOLATOR 4 |
4,693 | - |
|
Datasheet | - | 4-CLCC | Tray | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | - | - | -55°C ~ 150°C | Surface Mount | 4-LCC (3.81x5.59) |
|
|
HCC1001RADIATION CAPABLE OPTOISOLATOR 6 |
4,119 | - |
|
Datasheet | - | 6-LCC | Tray | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | - | - | -55°C ~ 150°C | Surface Mount | 6-LCC (4.32x6.22) |
|
|
HCC1000RADIATION CAPABLE OPTOISOLATOR M |
4,255 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | - | - | -55°C ~ 150°C | Through Hole | TO-78-6 |
|
3C92CTXVOPTOISOLATOR 1KV TRANS TO72-4 |
3,315 | - |
|
Datasheet | - | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
3N244TXOPTOISOLATOR 1KV TRANS TO72-4 |
3,812 | - |
|
Datasheet | - | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 30% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components.
How can I narrow the Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Transistor, Photovoltaic Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
