Transistor, Photovoltaic Output Optoisolators
Use the filters and product table below to compare Transistor, Photovoltaic Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPI123OPTOISOLTR 15KV DARLINGTON AXIAL |
100 | - |
|
Datasheet | - | Axial - 5 Leads | Bulk | Active | 1 | 15000VDC | 50% @ 10mA | - | - | 40µs, 40µs | DC | Darlington | 20V | - | 1.5V (Max) | 150 mA | 1.2V | - | - | -55°C ~ 125°C | Through Hole | Axial |
.jpg "HCC242")
|

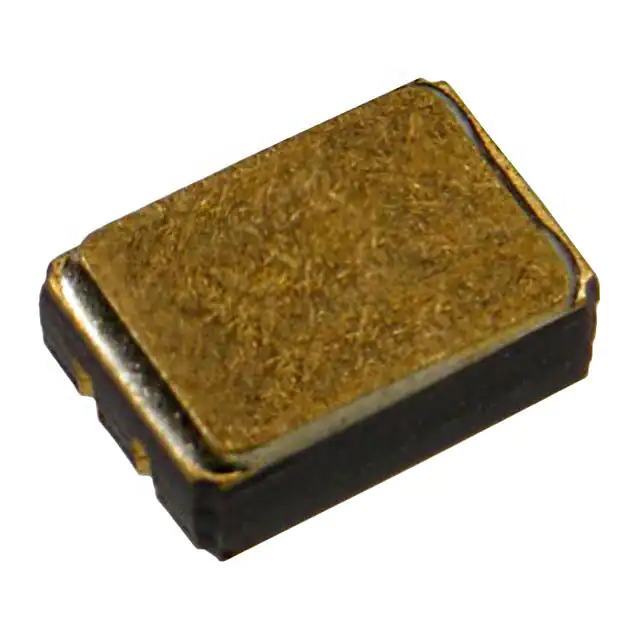

HCC242OPTOISOLATOR 1KV TRANS 4-CLCC |
1,603 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-CLCC (5.59x3.81) |
|
|
HCC242TXVOPTOISOLATOR 1KV TRANS 4-CLCC |
2,217 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Obsolete | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-CLCC (5.59x3.81) |
|
4N24ATXVOPTOISO 1KV TRANS W/BASE TO78-6 |
1,278 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.3V (Max) | 40 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JAN4N22AOPTOISO 1KV TRANS W/BASE TO78-6 |
2,738 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 25% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JANTX4N23U6 PIN, SMT OPTICALLY COUPLED ISO |
4,856 | - |
|
Datasheet | - | 6-LCC | Bulk | Obsolete | 1 | 1000VDC | 60% @ 10mA | - | - | 15µs, 15µs (Max) | DC | Transistor with Base | 35V | 6mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-LCC (4.32x6.22) |
|
4N49UOPTOISO 1KV TRANS W/BASE 6LCC |
1,189 | - |
|
Datasheet | - | 6-SMD, No Lead | Bulk | Active | 1 | 1000Vrms | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.5V | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-LCC (6.22x4.32) |
|
|
JANTX4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
2,301 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
3C91COPTOISOLATOR 1KV TRANS TO72-4 |
1,498 | - |
|
Datasheet | - | TO-206AF, TO-72-4 Metal Can | Bulk | Active | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
JANTX4N24AOPTOISO 1KV TRANS W/BASE TO78-6 |
4,445 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components.
How can I narrow the Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Transistor, Photovoltaic Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
