Transistor, Photovoltaic Output Optoisolators
Browse available Transistor, Photovoltaic Output Optoisolators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP388(TPL,ETRANSISTOR OPTOCOUPLER HIGH VCEO |
10,404 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 4 Lead |
|
|
TLP388(D4GB-TL,ETRANSISTOR OPTOCOUPLER HIGH VCEO |
8,032 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 4 Lead |
|
SFH690BTOPTOISOLATOR 3.75KV TRANS 4-SOP |
6,823 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|

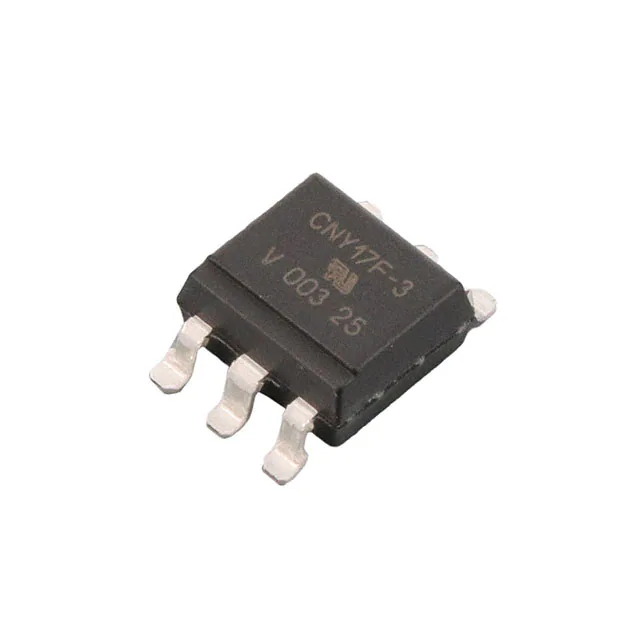

CNY17F-3X007TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
5,883 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
SFH690ATOPTOISOLATOR 3.75KV TRANS 4-SOP |
5,501 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 150% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
CNY17-3X007TOPTOISO 5KV TRANS W/BASE 6SMD |
5,339 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
SFH690DTOPTOISOLATOR 3.75KV TRANS 4SOP |
5,214 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
SFH615A-3OPTOISOLATOR 5.3KV TRANS 4-DIP |
4,377 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH615A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
4,071 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
VOL628A-3X001TOPTOISOLATOR 5KV TRANS LSOP-4 |
3,662 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
SFH6156-2OPTOISOLATOR 5.3KV TRANS 4SMD |
3,505 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6156-4OPTOISOLATOR 5.3KV TRANS 4SMD |
3,456 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6156-1OPTOISOLATOR 5.3KV TRANS 4SMD |
3,390 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6156-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,288 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
ACPL-214-50AEOPTOISOLATOR 3KV TRANS 4SOIC |
8,679 | - |
|
Datasheet | - | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3000Vrms | 50% @ 1mA | 250% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
CNY173SR2MOPTOISO 4.17KV TRANS W/BASE |
15,093 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
LTV-824SOPTOISOLATOR 5KV 2CH TRANS 8-SMD |
10,386 | - |
|
Datasheet | LTV-8x4 | 8-SMD, Gull Wing | Tube | Active | 2 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 8-SMD |
|
|
TCLT1013OPTOISOLATOR 5KV TRANS SOP-6L4 |
8,265 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
.JPG "TLP2303(TPL,E")
|
TLP2303(TPL,EOPTOISO 3.75KV TRANS 6-SO 5 LEAD |
4,879 | - |
|
Datasheet | - | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 500% @ 5mA | - | - | - | DC | Transistor | 18V | 80mA | - | 20 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
6N138OPTOISO 5KV DARL W/BASE 8DIP |
4,044 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 50mA | 1.1V | 20 mA | - | - | - | -20°C ~ 85°C | Through Hole | 8-DIP |
Transistor, Photovoltaic Output Optoisolators FAQ
Common questions about selecting, comparing and sourcing Transistor, Photovoltaic Output Optoisolators components through Winsun (HK) Electronics.
What should I check when selecting Transistor, Photovoltaic Output Optoisolators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Transistor, Photovoltaic Output Optoisolators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Transistor, Photovoltaic Output Optoisolators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
