Triac, SCR Output Optoisolators
Use the filters and product table below to compare Triac, SCR Output Optoisolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC1S3063NTZFOPTOISOLATOR 5KV TRIAC 6DIP |
4,887 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | UL |
|
|
PR36MF21YSZFOPTOISOLATOR 4KV PWR TRIAC 6DIP |
2,421 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac, Power | Yes | 1 | 4000Vrms | 600 V | 100V/µs | 10mA | 600 mA | 25mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
PR36MF51NSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
4,257 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Discontinued at Digi-Key | Triac, Power | No | 1 | 4000Vrms | 600 V | 100V/µs | 10mA | 600 mA | 25mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
PR39MF22YSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
1,024 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Triac, Power | Yes | 1 | 4000Vrms | 600 V | 100V/µs | 5mA | 900 mA | 25mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 8-DIP | CSA, UR, VDE |
|
|
PR49MF11NSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
3,348 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Triac, Power | No | 1 | 4000Vrms | 800 V | 50V/µs | 10mA | 900 mA | 50mA | 100µs (Max) | 1.2V | 50 mA | -25°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|

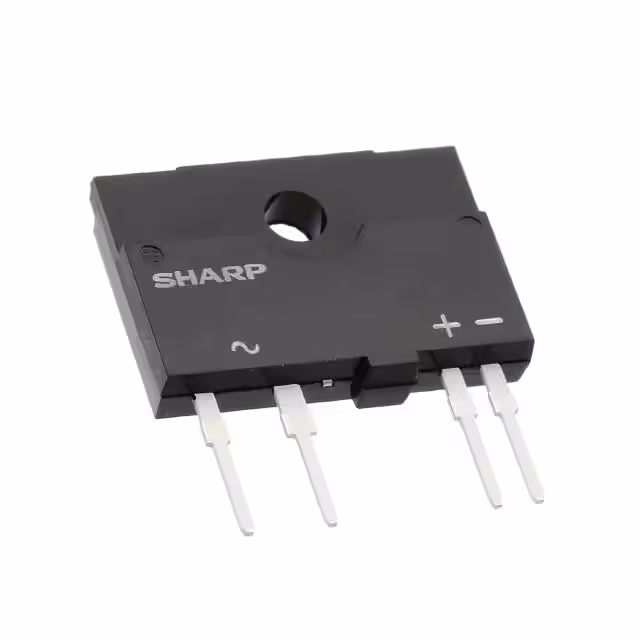

S208T01FOPTOISOLATOR 3KV PWR TRIAC 4SIP |
4,668 | - |
|
Datasheet | - | 4-SIP | Tube | Obsolete | Triac, Power | No | 1 | 3000Vrms | 600 V | 30V/µs | 8mA | 8 A | 50mA | 1ms (Max) | 1.2V | 50 mA | -25°C ~ 100°C | Through Hole | 4-SIP | UL |
|
|
PC3SD12YTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
2,481 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PC3SF11YXPBFOPTOISOLATOR 5KV TRIAC 6SMD |
4,134 | - |
|
Datasheet | - | 6-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC1S3063YTZFELECTRONIC COMPONENT OPTO |
4,125 | - |
|
Datasheet | - | - | Bulk | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | - | 5mA | 100 mA | - | - | - | - | - | Through Hole | - | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SH11YFZVFELECTRONIC COMPONENT OPTO |
3,222 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Triac, SCR Output Optoisolators FAQ
Common questions about filtering, comparing and sourcing Triac, SCR Output Optoisolators components.
How can I narrow the Triac, SCR Output Optoisolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Triac, SCR Output Optoisolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
