Triac, SCR Output Optoisolators
Browse available Triac, SCR Output Optoisolators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

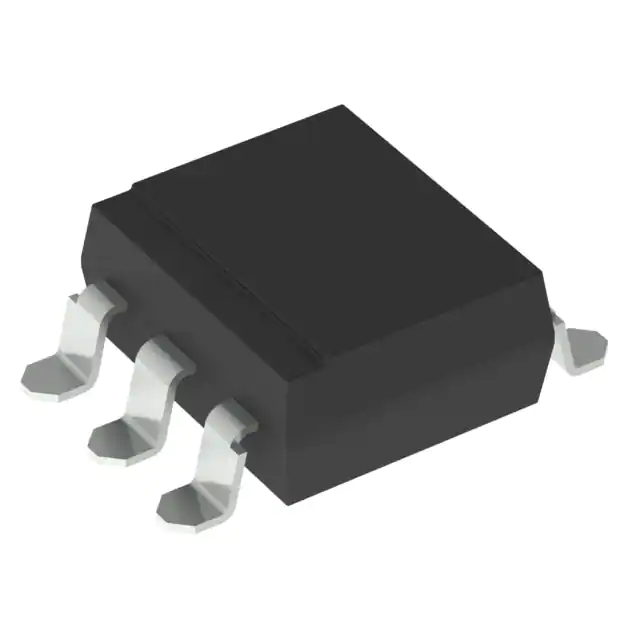

VOT8125AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD5 |
2,303 | - |
|
Datasheet | - | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
MOC3031SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
218 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
VOT8024AB-TPHOTOTRIAC 800V ZC SMD4 |
3,634 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
VOT8024AB-T1PHOTOTRIAC 800V ZC SMD4 90 |
2,365 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
VOT8026AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD6 |
2,100 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
|
MOC3073SMRAND PHASE TRIAC SM |
29,761 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 6mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3083SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,043 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
VOT8024AD-VPHOTOTRIAC 800V ZC DIP4 VDE |
4,000 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Through Hole | 4-DIP | CQC, cUL, UL, VDE |
|
FODM3012R2V-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,410 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR, VDE |
|
MOC3062VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,000 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
.jpg "VO3052")
|
VO3052OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,987 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR |
|
|
VOT8025AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD5 |
122 | - |
|
Datasheet | - | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
|
MOC3062SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
12,281 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3061TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
900 | - |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3083SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
467 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3081SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,966 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
APT1231SOPTOISOLATOR 3.75KV TRIAC 4SOP |
6,309 | - |
|
Datasheet | APT | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
|
MOC3033MOPTOISOLATOR 4.17KV TRIAC 6DIP |
779 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3033SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,868 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3042SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
847 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
Triac, SCR Output Optoisolators FAQ
Common questions about selecting, comparing and sourcing Triac, SCR Output Optoisolators components through Winsun (HK) Electronics.
What should I check when selecting Triac, SCR Output Optoisolators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Triac, SCR Output Optoisolators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Triac, SCR Output Optoisolators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Triac, SCR Output Optoisolators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
