Oscillators
Use the filters and product table below to compare Oscillators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASTX-H12-22.5792MHZ-TXTAL OSC TCXO 22.5792MHZ 3.3V HC |
7,184 | - |
|
Datasheet | ASTX-H12 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 22.5792 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 75°C | - | 5.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
AK2DCF2-156.2500TXTAL OSC XO 156.25MHZ 1.8V LVDS |
9,191 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 1.8V | ±30ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2DCF1-125.0000TXTAL OSC XO 125MHZ 1.8V LVDS |
8,802 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 1.8V | ±30ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|

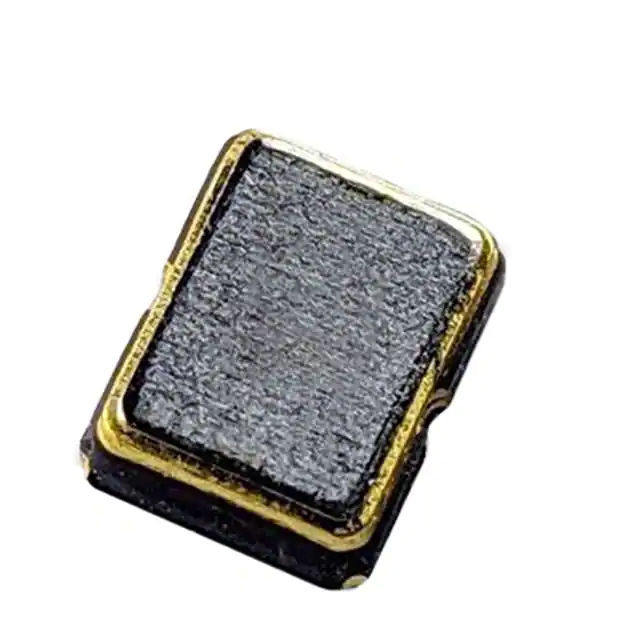

AK2PAF2-156.2500TXTAL OSC XO 156.25MHZ 3.3V LVPEC |
6,436 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 50mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2HBF1-156.2500TXTAL OSC XO 156.25MHZ 2.5V HCSL |
3,773 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | HCSL | 2.5V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2DAF1-200.0000TXTAL OSC XO 200MHZ 3.3V LVDS |
5,560 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2DCD1-100.0000T3XTAL OSC XO 100MHZ 1.8V LVDS |
6,482 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 1.8V | ±25ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2DCD1-200.0000T3XTAL OSC XO 200MHZ 1.8V LVDS |
5,731 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 1.8V | ±25ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2DAD1-125.0000TXTAL OSC XO 125MHZ 3.3V LVDS |
7,208 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±25ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
|
|
AK2HAF1-100.0000TXTAL OSC XO 100MHZ 3.3V HCSL |
8,848 | - |
|
Datasheet | ClearClock™ AK2 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 6-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.043" (1.10mm) |
Oscillators FAQ
Common questions about filtering, comparing and sourcing Oscillators components.
How can I narrow the Oscillators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Oscillators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
