Oscillators
Browse available Oscillators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASDDV-26.000MHZ-LC-TOSC XO 26.000MHZ CMOS SMD |
498 | - |
|
Datasheet | ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | HCMOS, LVCMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
ECS-3225MV-500-CN-TRXTAL OSC XO 50.0000MHZ HCMOS SMD |
3,706 |
1+：$1.15000 10+：$1.00200 25+：$0.94760 50+：$0.90840 100+：$0.87070 250+：$0.82340 500+：$0.78936 |
|
Datasheet | ECS-3225MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | HCMOS | 1.62V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ECS-327MVATX-2-CN-TR3XTAL OSC XO 32.7680KHZ SMD |
35,094 | - |
|
Datasheet | ECS-327MVATX MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 200µA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ECS-3225MV-250-CN-TRXTAL OSC XO 25.0000MHZ HCMOS SMD |
25,840 |
1+：$1.13000 10+：$0.98500 25+：$0.93120 50+：$0.89280 100+：$0.85590 250+：$0.80944 500+：$0.77594 |
|
Datasheet | ECS-3225MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS | 1.62V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ASE-50.000MHZ-L-C-TXTAL OSC XO 50.0000MHZ CMOS SMD |
17,732 | - |
|
Datasheet | ASE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 19mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
MC2520Z25.0000C19XSHXTAL OSC XO 25.0000MHZ CMOS SMD |
67,101 | - |
|
Datasheet | MC2520Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | ±30ppm | - | -40°C ~ 125°C | - | 7.3mA | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
CB3LV-3I-24M000000XTAL OSC XO 24.0000MHZ HCMOS TTL |
39,699 | - |
|
Datasheet | CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 40mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CB3LV-5I-20M000000XTAL OSC XO 20.0000MHZ HCMOS TTL |
40,418 | - |
|
Datasheet | CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 12mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
ECS-3225MV-080-BN-TRXTAL OSC XO 8.0000MHZ HCMOS SMD |
6,846 | - |
|
Datasheet | ECS-3225MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 8 MHz | Enable/Disable | HCMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 3mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
CB3LV-3C-12M000000XTAL OSC XO 12.0000MHZ HCMOS TTL |
5,590 | - |
|
Datasheet | CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 12mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
ECS-2520MV-160-CN-TROSC XO 16.0000MHZ CMOS SMD |
138,224 |
1+：$1.23000 10+：$1.06500 25+：$1.00720 50+：$0.96560 100+：$0.92560 250+：$0.87536 500+：$0.83916 1000+：$0.80446 |
|
Datasheet | ECS-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
ECS-2520MV-250-CN-TRXTAL OSC XO 25.0000MHZ CMOS SMD |
61,032 |
1+：$1.25000 10+：$1.08500 25+：$1.02600 50+：$0.98380 100+：$0.94300 250+：$0.89180 500+：$0.85490 1000+：$0.81956 |
|
Datasheet | ECS-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
ECS-2520MV-333.3-BN-TRXTAL OSC XO 33.3333MHZ CMOS SMD |
59,586 | - |
|
Datasheet | ECS-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 33.3333 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
ECS-5032MV-250-CN-TRXTAL OSC XO 25.0000MHZ HCMOS SMD |
8,785 |
1+：$1.22000 10+：$1.06200 25+：$1.00440 50+：$0.96300 100+：$0.92310 250+：$0.87300 500+：$0.83688 |
|
Datasheet | ECS-5032MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ECS-2520MV-240-BN-TRXTAL OSC XO 24.0000MHZ CMOS SMD |
55,285 | - |
|
Datasheet | ECS-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|

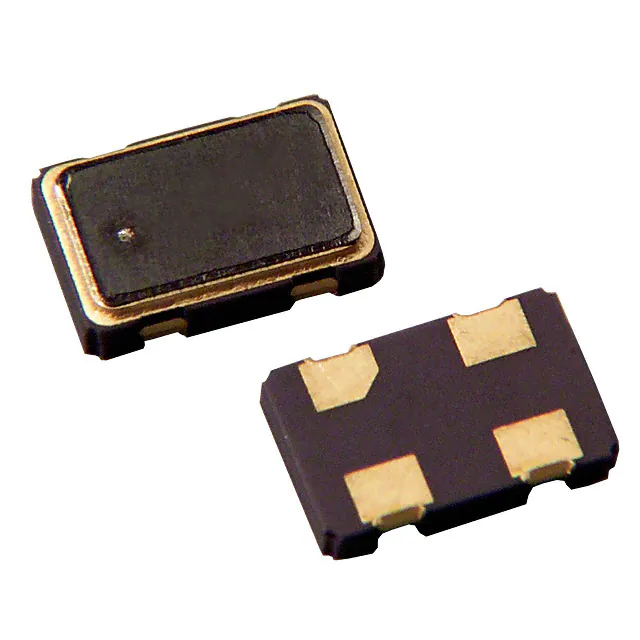

ASFL1-20.000MHZ-EC-TXTAL OSC XO 20.0000MHZ HCMOS TTL |
4,896 | - |
|
Datasheet | ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ASFL1-24.000MHZ-L-TXTAL OSC XO 24.0000MHZ HCMOS TTL |
2,303 | - |
|
Datasheet | ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ECS-2520MV-080-CN-TROSC XO 8.0000MHZ CMOS SMD |
62,323 |
1+：$1.18000 10+：$1.02500 25+：$0.96960 50+：$0.92940 100+：$0.89100 250+：$0.84256 500+：$0.80770 1000+：$0.77431 |
|
Datasheet | ECS-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 8 MHz | Enable/Disable | HCMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
ECS-3225MVQ-240-BP-TRXTAL OSC XO 24.0000MHZ CMOS SMD |
7,833 | - |
|
Datasheet | ECS-3225MVQ MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 1.7V ~ 3.6V | ±50ppm | - | -40°C ~ 105°C | - | 10mA | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

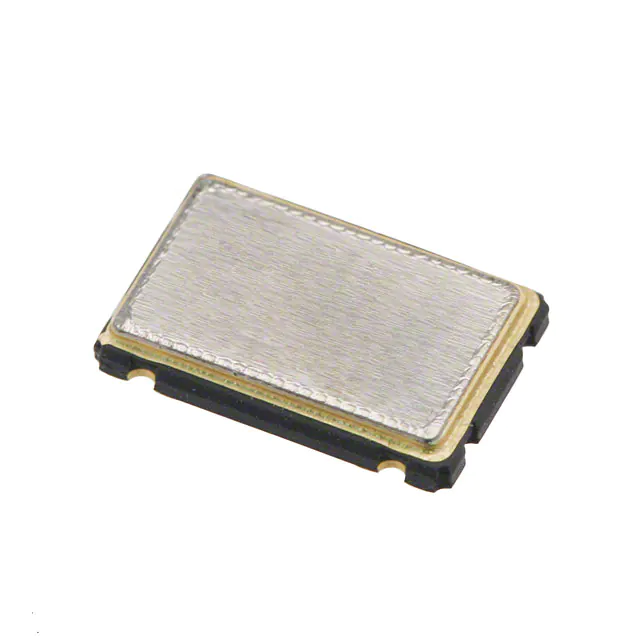

CB3-3C-20M000000XTAL OSC XO 20.0000MHZ HCMOS TTL |
17,750 | - |
|
Datasheet | CB3 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | -20°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
Oscillators FAQ
Common questions about selecting, comparing and sourcing Oscillators components through Winsun (HK) Electronics.
What should I check when selecting Oscillators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Oscillators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Oscillators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Oscillators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
