Oscillators
Use the filters and product table below to compare Oscillators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NA-10M-2453XTAL OSC OCXO 10.0000MHZ LVTTL |
2,120 | - |
|
Datasheet | NA-10M-2400 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | LVTTL | 5V | ±3ppb | - | -40°C ~ 85°C | - | 800mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.500" (12.70mm) |
|
|
NA-10M-2553XTAL OSC OCXO 10.0000MHZ SNWV TH |
2,955 | - |
|
Datasheet | NA-10M-2500 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | Sine Wave | 5V | ±3ppb | - | -40°C ~ 85°C | - | 800mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.500" (12.70mm) |
|
|
NA-10M-2003XTAL OSC OCXO 10.0000MHZ LVTTL |
6,414 | - |
|
Datasheet | NA-10M-2000 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | LVTTL | 3.3V | ±3ppb | - | -40°C ~ 85°C | - | 1A | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.500" (12.70mm) |
|
|
NA-10M-2403XTAL OSC OCXO 10.0000MHZ LVTTL |
5,208 | - |
|
Datasheet | NA-10M-2400 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | LVTTL | 5V | ±3ppb | - | -40°C ~ 85°C | - | 800mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.500" (12.70mm) |
|

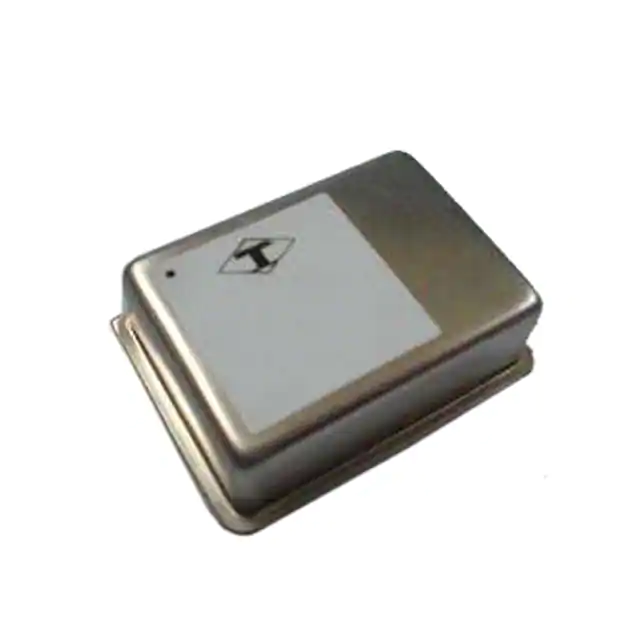

NI-100M-2901XTAL OSC OCXO 100.0000MHZ SNWV |
7,662 | - |
|
Datasheet | NI-100M-2900 | 6-DIP (1.000", 25.40mm), 5 Leads | Box | Active | Crystal | OCXO | 100 MHz | - | Sine Wave | 12V | ±50ppb | - | -40°C ~ 85°C | - | 350mA | - | Through Hole | - | 1.430" L x 1.070" W (36.32mm x 27.18mm) | 0.630" (16.00mm) |
|
NA-10M-6815XTAL OSC OCXO 10.0000MHZ SNWV TH |
8,051 | - |
|
Datasheet | NA-10M-6800 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | Sine Wave | 12V | ±30ppb | - | -20°C ~ 70°C | - | 400mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.583" (14.80mm) |
|
|
NA-10M-6825XTAL OSC OCXO 10.0000MHZ SNWV TH |
5,853 | - |
|
Datasheet | NA-10M-6800 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | Sine Wave | 12V | ±20ppb | - | -20°C ~ 70°C | - | 400mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.583" (14.80mm) |
|
NJ-100M-6815XTAL OSC OCXO 100.0000MHZ SNWV |
7,214 | - |
|
Datasheet | NJ-100M-6800 | 6-SMD, No Lead, 5 Leads | Strip | Active | Crystal | OCXO | 100 MHz | - | Sine Wave | 12V | ±50ppb | - | -20°C ~ 70°C | - | 380mA | - | Surface Mount | - | 1.000" L x 0.870" W (25.40mm x 22.10mm) | 0.520" (13.20mm) |
|
|
NA-10M-6835XTAL OSC OCXO 10.0000MHZ SNWV TH |
2,911 | - |
|
Datasheet | NA-10M-6800 | 6-DIP (0.750", 19.05mm), 5 Leads | Box | Active | Crystal | OCXO | 10 MHz | - | Sine Wave | 12V | ±10ppb | - | -20°C ~ 70°C | - | 400mA | - | Through Hole | - | 1.015" L x 1.015" W (25.78mm x 25.78mm) | 0.583" (14.80mm) |
|
|
NJ-100M-6825XTAL OSC OCXO 100.0000MHZ SNWV |
3,026 | - |
|
Datasheet | NJ-100M-6800 | 6-SMD, No Lead, 5 Leads | Strip | Active | Crystal | OCXO | 100 MHz | - | Sine Wave | 12V | ±100ppb | - | -40°C ~ 85°C | - | 380mA | - | Surface Mount | - | 1.000" L x 0.870" W (25.40mm x 22.10mm) | 0.520" (13.20mm) |
Oscillators FAQ
Common questions about filtering, comparing and sourcing Oscillators components.
How can I narrow the Oscillators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Oscillators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
