Oscillators
Use the filters and product table below to compare Oscillators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCLD-033-50-100.000XTAL OSC XO 100.0000MHZ LVDS SMD |
513 | - |
|
Datasheet | CCLD | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 66mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CCLD-033-50-125.000XTAL OSC XO 125.0000MHZ LVDS SMD |
5,470 | - |
|
Datasheet | CCLD | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 66mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CCLD-033-50-156.250XTAL OSC XO 156.2500MHZ LVDS SMD |
2,934 | - |
|
Datasheet | CCLD | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 66mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
CCPD-034-50-200.000XTAL OSC XO 200.0000MHZ LVPECL |
545 | - |
|
Datasheet | CCPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVPECL | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 88mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|

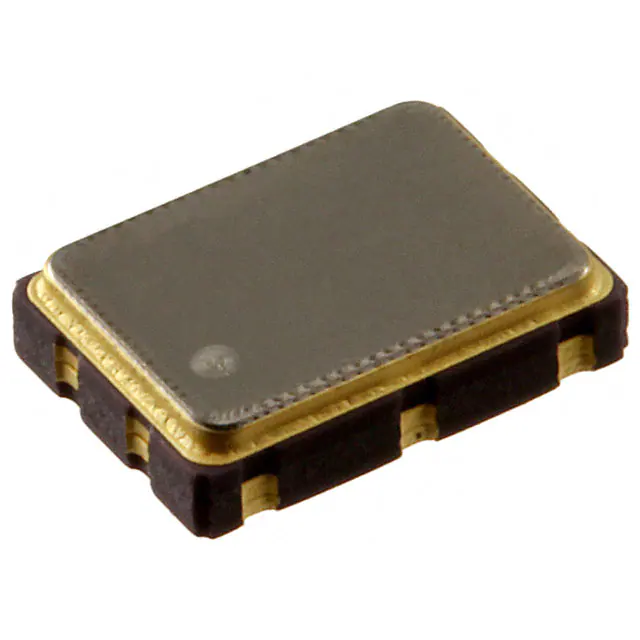

CVHD-037X-100XTAL OSC VCXO 100.0000MHZ CMOS |
1,207 | - |
|
Datasheet | CVHD-037X | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 100 MHz | Enable/Disable | CMOS | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 15mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |

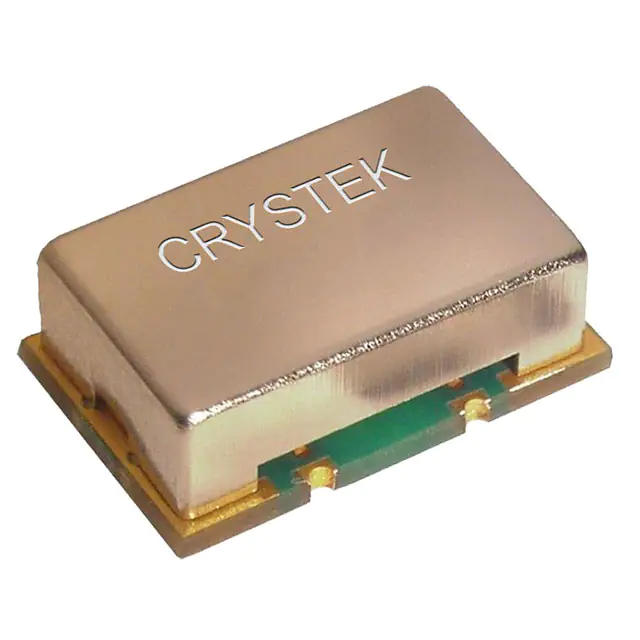

HD-950_Series.jpg "CVHD-950-122.880")
|
CVHD-950-122.880XTAL OSC VCXO 122.8800MHZ CMOS |
1,047 | - |
|
Datasheet | CVHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 122.88 MHz | - | CMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CVHD-950X-122.880XTAL OSC VCXO 122.8800MHZ CMOS |
415 | - |
|
Datasheet | CVHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 122.88 MHz | - | CMOS | 3.3V | - | ±20ppm | -40°C ~ 85°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CVHD-950-50.000XTAL OSC VCXO 50.0000MHZ CMOS |
380 | - |
|
Datasheet | CVHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 50 MHz | - | CMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CVHD-950-100.000XTAL OSC VCXO 100.0000MHZ CMOS |
805 | - |
|
Datasheet | CVHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 100 MHz | - | CMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CCHD-575-50-100.000XTAL OSC XO 100.0000MHZ HCMOS |
156 | - |
|
Datasheet | CCHD-575 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.295" L x 0.200" W (7.50mm x 5.08mm) | 0.098" (2.50mm) |
Oscillators FAQ
Common questions about filtering, comparing and sourcing Oscillators components.
How can I narrow the Oscillators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Oscillators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
