Oscillators
Use the filters and product table below to compare Oscillators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-100A-050XTAL OSC XO 5.0000MHZ TTL TH |
208 | - |
|
Datasheet | ECS-100 | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | 5 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.821" L x 0.520" W (20.86mm x 13.20mm) | 0.200" (5.08mm) |
|
ECS-3953M-800-B-TRXTAL OSC XO 80.0000MHZ HCMOS SMD |
5,260 | - |
|
Datasheet | ECS-3953M | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 80 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|

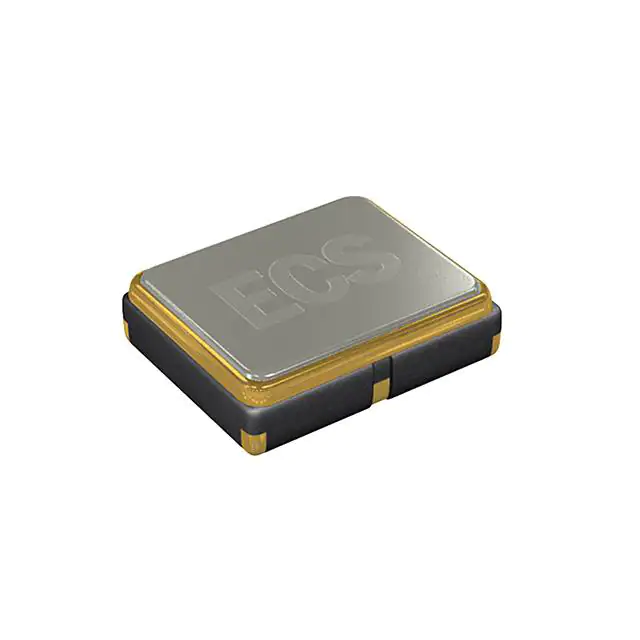

ECS-TXO-25CSMV-AC-260-AY-TRXTAL OSC TCXO 26MHZ CLPSNW SMD |
2,545 | - |
|
Datasheet | ECS-TXO-25CSMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 1.7V ~ 3.6V | ±500ppb | - | -30°C ~ 85°C | - | 1.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
ECS-3951M-800-BN-TRXTAL OSC XO 80.0000MHZ HCMOS SMD |
1,596 | - |
|
Datasheet | ECS-3951M-BN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 80 MHz | Enable/Disable | HCMOS | 5V | ±50ppm | - | -40°C ~ 85°C | - | 60mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
ECS-2100AX-049XTAL OSC XO 4.9152MHZ HCMOS TTL |
326 | - |
|
Datasheet | ECS-2100X | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | 4.9152 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.213" (5.40mm) |
|
|
ECS-2100A-400XTAL OSC XO 40.0000MHZ HCMOS TTL |
140 | - |
|
Datasheet | ECS-2100 | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | 40 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 46mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.213" (5.40mm) |
|
ECS-2012MV-327KE-TRXTAL OSC XO 32.7680KHZ CMOS SMD |
7,910 | - |
|
Datasheet | ECS-2012MV-327KE MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 3.3V | -150ppm, +10ppm | - | -40°C ~ 85°C | - | 0.8µA | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.033" (0.85mm) |
|
ECS-3225SMV-120-FP-TRXTAL OSC XO 12MHZ HCMOS SMD |
7,316 | - |
|
Datasheet | ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
ECS-3225SMV-240-FP-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
2,940 | - |
|
Datasheet | ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ECS-TXO-5032-122.8-TRXTAL OSC TCXO 12.2880MHZ HCMOS |
4,548 | - |
|
Datasheet | ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 12.288 MHz | - | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
Oscillators FAQ
Common questions about filtering, comparing and sourcing Oscillators components.
How can I narrow the Oscillators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Oscillators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
