Oscillators
Use the filters and product table below to compare Oscillators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG2520SMN 32.0000M-ECGNNM3XTAL OSC TCXO 32.0000MHZ CSWV |
922 | - |
|
Datasheet | TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
TG2520SMN 40.0000M-MCGNNM3XTAL OSC TCXO 40.0000MHZ CSWV |
469 | - |
|
Datasheet | TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
TG2520SMN 32.0000M-MCGNNM3XTAL OSC TCXO 32.0000MHZ CSWV |
1,506 | - |
|
Datasheet | TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
TG-3541CE 32.7680KXA0XTAL OSC TCXO 32.7680KHZ CMOS |
2,690 | - |
|
Datasheet | TG-3541CE | 10-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32.768 kHz | Enable/Disable | CMOS | 1.5V ~ 5.5V | ±8ppm | - | -40°C ~ 105°C | - | 3µA | - | Surface Mount | 10-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
TG2016SMN 26.0000M-MCGNNM3XTAL OSC TCXO 26.0000MHZ CSWV |
1,815 | - |
|
Datasheet | TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
SG3225VAN 156.250000M-KEGA3XTAL OSC XO 156.2500MHZ LVDS SMD |
8,510 | - |
|
Datasheet | SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG3225VAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVDS SMD |
1,962 | - |
|
Datasheet | SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

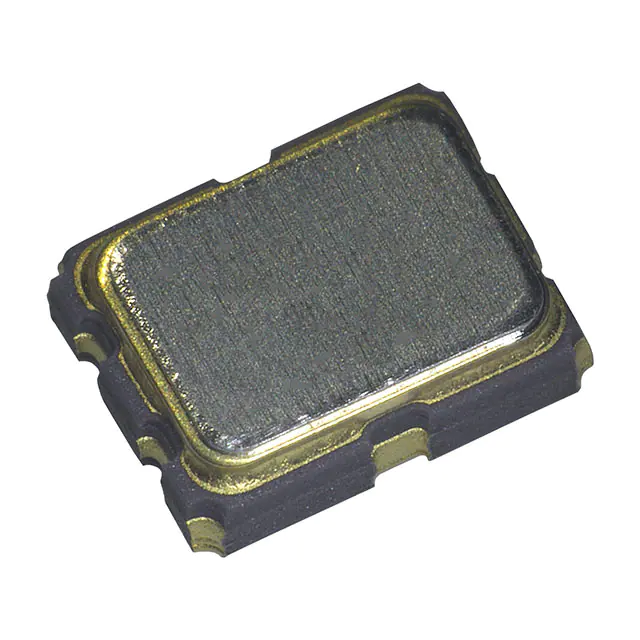

SG3225HBN 100.000000M-CJGA0XTAL OSC XO 100.0000MHZ HCSL SMD |
322 | - |
|
Datasheet | SG3225HBN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

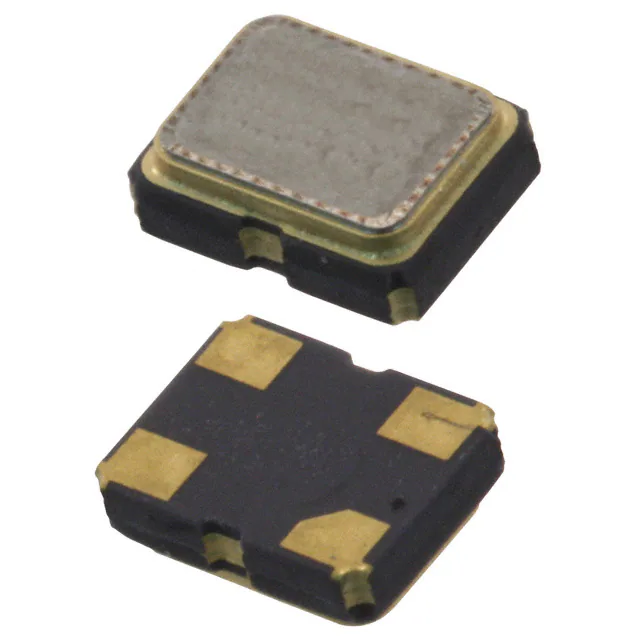

VG-4231CE 27.0000M-PSCM3XTAL OSC VCXO 27.0000MHZ CMOS |
11,168 | - |
|
Datasheet | VG-4231CE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | VCXO | 27 MHz | - | CMOS | 3.3V | ±37ppm | ±95ppm | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TG2016SMN 19.2000M-MCGNNM3XTAL OSC TCXO 19.2000MHZ CSWV |
368 | - |
|
Datasheet | TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 19.2 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
Oscillators FAQ
Common questions about filtering, comparing and sourcing Oscillators components.
How can I narrow the Oscillators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Oscillators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
