Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTN70301EPAXUMA1IC HALF BRIDGE DRVR 7A TSDSO-14 |
2,062 | - |
|
Datasheet | - | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic | Inductive | SMART7 | 20mOhm LS, 12mOhm HS | 7A | 17A | 6V ~ 18V | - | -40°C ~ 150°C (TJ) | - | - | Diagnostic Enable, Enable, SENSE | Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit | Surface Mount | PG-TSDSO-14 |
|
TDA21520AUMA1IFX POWERSTAGE/DRIVER PG-IQFN-25 |
8,979 | - |
|
Datasheet | EiceDRIVER™ | 25-PowerTFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-IQFN-25-1 |
|
IRSM005-301MHTRIC HALF BRIDGE DRIVER 30A 27QFN |
1,397 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 16mOhm | 30A | - | 10V ~ 20V | 100V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
IRSM005-301MHIC HALF BRIDGE DRIVER 30A 27QFN |
1,168 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tray | Active | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 16mOhm | 30A | - | 10V ~ 20V | 100V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|

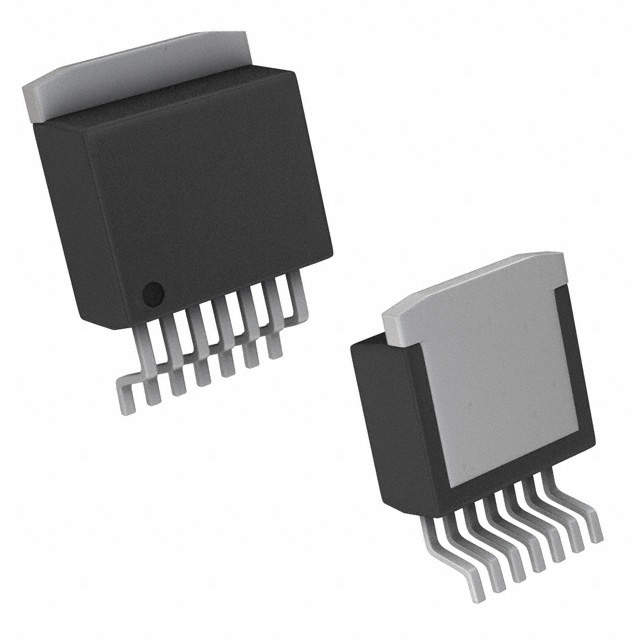

IFX007TAUMA1IC HALF BRIDGE DRVR 55A TO263-7 |
6,580 | - |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 4.7mOhm LS, 5.3mOhm HS | 55A | - | 8V ~ 40V | 8V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|

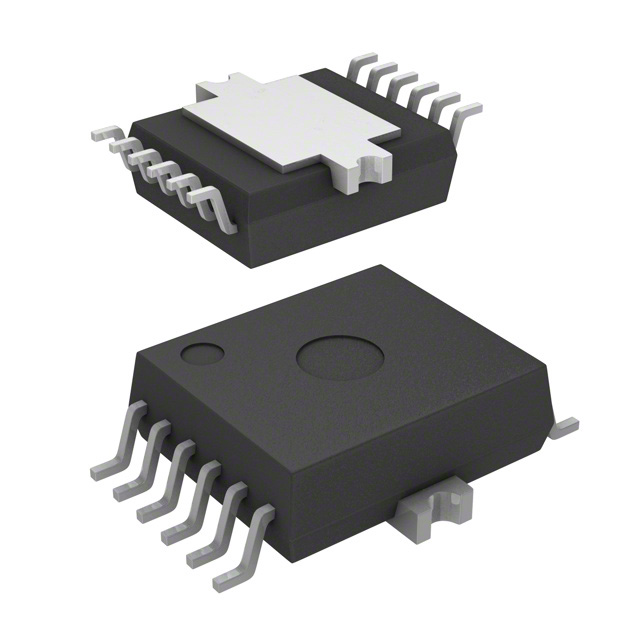

IFX9201SGAUMA1IC HALF BRIDGE DRIVER 6A 12DSO |
2,664 | - |
|
Datasheet | - | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | PWM, SPI | Inductive | Power MOSFET | 100mOhm LS, 100mOhm HS | 6A | - | 5V ~ 36V | 5V ~ 36V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-DSO-12-17 |
|
|
TLE9201SGAUMA1IC HALF BRIDGE DRIVER 6A 12DSO |
3,478 | - |
|
Datasheet | - | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | PWM, SPI | Inductive | Power MOSFET | 100mOhm LS, 100mOhm HS | 6A | - | 5V ~ 28V | 5V ~ 28V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | - | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-DSO-12-17 |
|
|
BTN9970LVAUMA1IC HALF BRIDGE DRIVER HSOF-7 |
3,488 | - |
|
Datasheet | NovalithIC™ | 7-PowerSFN | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | MOSFET (Metal Oxide) | - | - | - | 8V ~ 18V | 8V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Over Current, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-HSOF-7-1 |
|
|
TDA21570AUMA1IFX POWERSTAGE/DRIVER PG-IQFN-39 |
2,917 | - |
|
Datasheet | - | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-IQFN-39 |
|
|
TDA21490AUMA1IFX POWERSTAGE/DRIVER |
6,890 | - |
|
Datasheet | OptiMOS™ Powerstage | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-IQFN-39-7 |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
