Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX13256ATB+TIC HALF BRIDGE DRVR 850MA 10TDFN |
9,225 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | Transformers | Logic | Inductive | Power MOSFET | 600mOhm LS, 1Ohm HS | 850mA | - | 8V ~ 36V | 8V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Internal Oscillator, Status Flag, Watchdog Timer | Current Limiting, Over Temperature, UVLO | Surface Mount | 10-TDFN (3x3) |
|
MAX256ASA+TIC HALF BRIDGE DRIVER 1A 8SOIC |
4,220 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | Transformers | Logic | Inductive | Power MOSFET | 500mOhm LS + HS | 1A | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Internal Oscillator, Watchdog Timer | ESD, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|
|
MAX256ASA+IC HALF BRIDGE DRIVER 1A 8SOIC |
710 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Half Bridge (2) | Transformers | Logic | Inductive | Power MOSFET | 500mOhm LS + HS | 1A | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Internal Oscillator, Watchdog Timer | ESD, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|

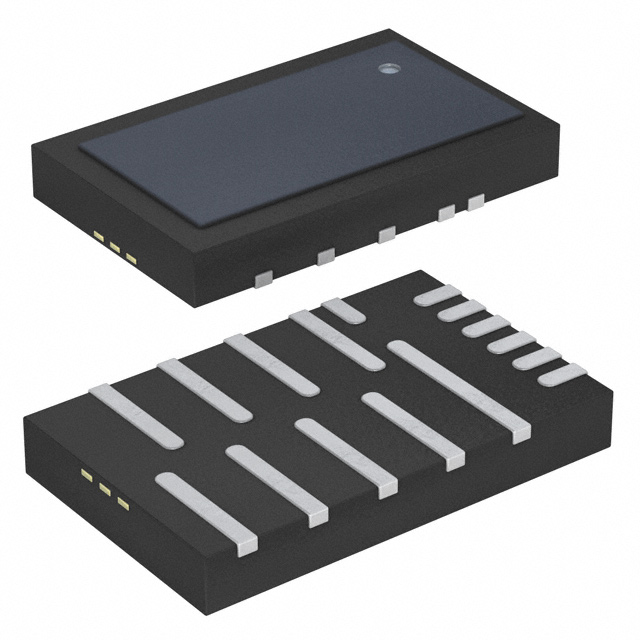

VT1697SBFQXIC HALF BRIDGE DRIVER 16QFN |
2,111 | - |
|
Datasheet | - | 16-VFQFN | Tape & Reel (TR) | Active | Half Bridge | General Purpose | PWM | Inductive | Power MOSFET | - | - | 55A | 1.71V ~ 1.98V | 8.5V ~ 14V | -40°C ~ 125°C (TJ) | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 16-FCQFN (6x3.75) |
|
|
MAX25256ATBA/V+IC HALF BRIDGE DRVR 300MA 10TDFN |
193 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Half Bridge | General Purpose | I2C, Logic, SPI | Inductive, Capacitive, Resistive | - | 1Ohm LS, 1.8Ohm HS | 300mA | 300mA | 8V ~ 36V | 8V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Current, Over Temperature, Shoot-Through, UVLO | Surface Mount | 10-TDFN (3x3) |
|
|
MAX22256AATB+IC HALF BRIDGE DRIVER 1A 10TDFN |
204 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tray | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | - | 260mOhm LS, 520mOhm HS | 1A | 1A | 5V ~ 36V | 5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount | 10-TDFN (3x3) |
|
MAX22216ATJY+TQUAD SERIAL PROGRAMMABLE 2A HALF |
1,267 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | SPI | Inductive | - | 170mOhm LS + HS | - | - | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C (TA) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount, Wettable Flank | 32-WETQFN (5x5) |
|
|
MAX22216ATJY+QUAD SERIAL PROGRAMMABLE 2A HALF |
162 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tray | Active | Half Bridge (4) | DC Motors, General Purpose | SPI | Inductive | - | 170mOhm LS + HS | - | - | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C (TA) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount, Wettable Flank | 32-WETQFN (5x5) |
|
MAX22258AUD+IC HALF BRIDGE DRIVER 1A 14TSSOP |
621 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | - | 260mOhm LS, 520mOhm HS | 1A | 1A | 5V ~ 36V | 5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount | 14-TSSOP-EP |
|
|
VT1697SBFQIC HALF BRIDGE DRIVER 16QFN |
576 | - |
|
Datasheet | - | 16-VFQFN | Tray | Active | Half Bridge | General Purpose | PWM | Inductive | Power MOSFET | - | - | 55A | 1.71V ~ 1.98V | 8.5V ~ 14V | -40°C ~ 125°C (TJ) | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 16-QFN (6x3.75) |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
