Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV7726DQBR2GIC HALF BRIDGE DRVR 500MA 24SSOP |
2,500 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (12) | DC Motors, General Purpose | Logic, SPI | Inductive | NMOS | 850mOhm LS, 850mOhm HS | 500mA | 1.1A | 3.15V ~ 5.25V | 5.5V ~ 32V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP-EP |
|
NCV7547MWTXGIC HALF BRIDGE DRIVER 48QFNW |
2,475 | - |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (7) | General Purpose | PWM, SPI | Capacitive and Resistive | NMOS | - | - | - | 4.5V ~ 5.5V | 7V ~ 18V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Load | Surface Mount, Wettable Flank | 48-QFNW (7x7) |
|
NCV7728DPAR2GIC HALF BRIDGE DRVR 550MA 24SSOP |
2,500 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Half Bridge (6) | DC Motors, General Purpose | SPI | Capacitive | DMOS | 1Ohm LS + HS | 550mA | 550mA | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP |
|
NCV7544MWTXGIC HALF BRIDGE DRIVER 12MA 32QFN |
5,000 | - |
|
Datasheet | - | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | General Purpose | PWM, SPI | Capacitive and Resistive | Power MOSFET | - | 12mA | - | 4.5V ~ 5.5V | 7V ~ 18V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over/Under Voltage | Surface Mount | 32-QFN (5x5) |
|
|
SDC1368T1ANA INDUCTIVE LOAD DRVR |
72,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

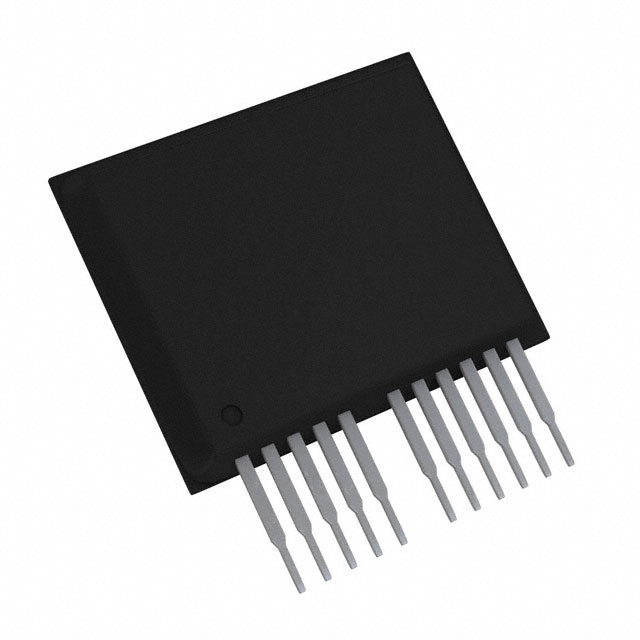

STK681-210-EIC HALF BRIDGE DRIVER 5.2A 12SIP |
4,806 | - |
|
Datasheet | - | 12-SIP, 11 Leads | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 5.2A | 8A | 4.75V ~ 5.25V | 10V ~ 42V | 150°C (TJ) | - | - | - | - | Through Hole | 12-SIP |
|
|
LV8163QA-BHIC BRIDGE DRIVER 700MA 10UDFN |
2,595 | - |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | DC Motors, General Purpose | PWM | Inductive | Bi-CMOS | - | 700mA | - | 2V ~ 6V | 2V ~ 6V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature | Surface Mount | 10-UDFN (2.6x2.6) |
|
LV8401V-TLM-EIC HALF BRIDGE DRVR 1.2A 16SSOP |
1,555 | - |
|
Datasheet | - | 16-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 330mOhm | 1.2A | 2A, 3.8A | 2.7V ~ 5.5V | 4V ~ 15V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 16-SSOP |
|
LA6597FMC-AHIC HALF BRIDGE DRIVER 1A 10SOIC |
2,994 | - |
|
Datasheet | - | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 110°C (TA) | - | - | - | Over Temperature, Short Circuit | Surface Mount | 10-SOIC |
|
LA6586FA-BHIC HALF BRIDGE DRV 600MA 10MICRO |
1,305 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 600mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-Micro |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
