Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN771KPTR-EIC HALF BRIDGE DRIVER 9A 28SO |
1,305 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
VNH7013XPTR-EIC HALF BRIDGE DRVR 40A 36PWRSSO |
2,465 | - |
|
Datasheet | VIPower™ | 36-PowerBFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 7.3mOhm LS, 5.7mOhm HS | 40A | - | 72V (Max) | - | -40°C ~ 175°C (TJ) | - | - | - | Over Temperature | Surface Mount | PowerSSO-36 TP |
|
|
VN770K13TRIC HALF BRIDGE DRIVER 9A 28SO |
2,098 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 160mOhm (Max) | 9A | - | 5.5V ~ 36V | 40V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
VN771KP-EIC HALF BRIDGE DRIVER 9A 28SO |
1,963 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
VN772K13TRIC HALF BRIDGE DRIVER 9A 28SO |
1,972 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|

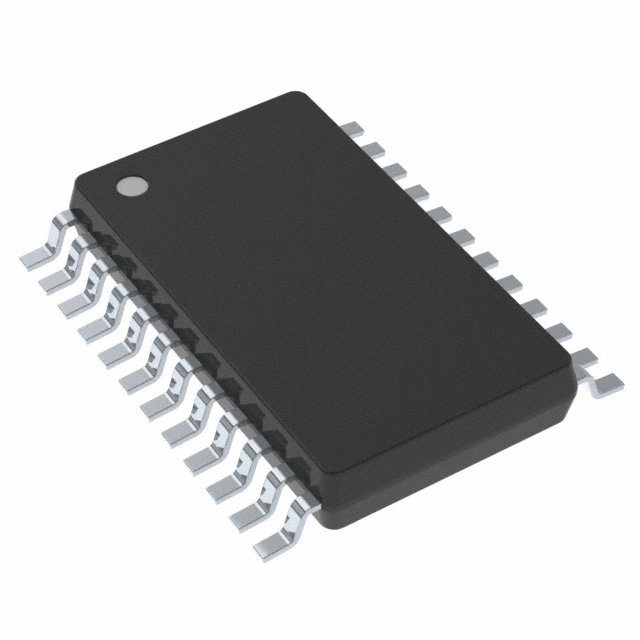

L9959S-TR-DIC HALF BRIDGE DRVR 3A PWRSSO-24 |
4,620 | - |
|
Datasheet | - | 24-PowerBSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | SPI | Inductive, Capacitive, Resistive | PMOS | - | 3A | - | 4.5V ~ 5.5V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit | Surface Mount | PowerSSO-24 |
|
L6206NIC HALF BRIDG DRV 2.8A 24PWRDIP |
1,038 | - |
|
Datasheet | - | 24-PowerDIP (0.300", 7.62mm) | Tube | Obsolete | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Through Hole | 24-PowerDIP |
|
|
VN772KIC HALF BRIDGE DRIVER 9A 28SO |
1,576 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
VN772KTR-EIC HALF BRIDGE DRIVER 9A 28SO |
3,908 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
VN771KTR-EIC HALF BRIDGE DRIVER 9A 28SO |
1,417 | - |
|
Datasheet | OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
