Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

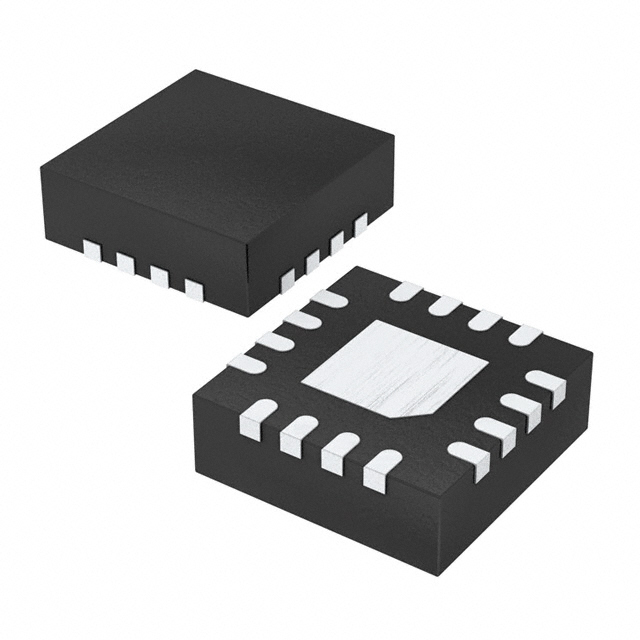

AP1013CENIC HALF BRIDGE DRIVER 1.3A 16QFN |
13,163 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1013DENIC HALF BRIDGE DRIVER 1.3A 16QFN |
9,779 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1016AENIC HALF BRIDGE DRIVER 1A 16QFN |
1,914 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 270mOhm LS, 270mOhm HS | 1A | 1.4A | 2.7V ~ 5.5V | 2V ~ 9V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
AP1023AENIC HALF BRIDGE DRVR 1.45A 24QFN |
958 | - |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | - | 1.45A | - | 2.7V ~ 5.5V | 1.6V ~ 6.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|

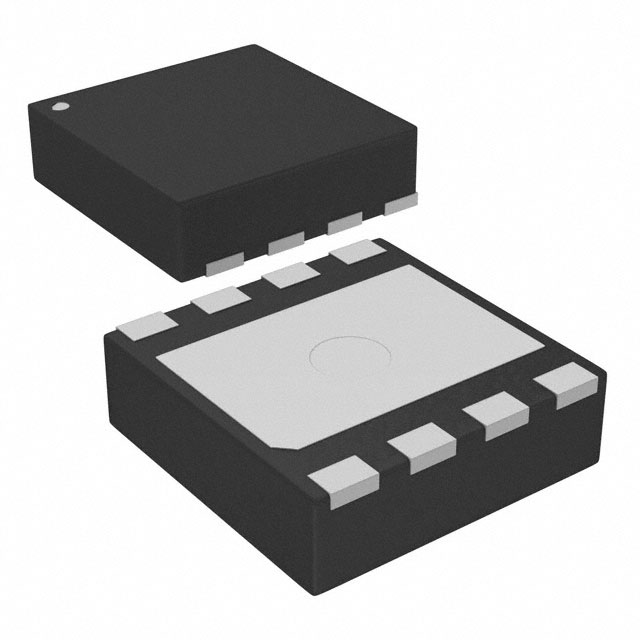

AP1017AENIC HALF BRIDGE DRIVER 1.56A 8SON |
2,321 | - |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 470mOhm LS + HS | 1.56A | 3.3A | 2.7V ~ 3.6V | 1.8V ~ 12V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 8-SON (2x2) |
|
|
AP1012AIC HALF BRIDGE DRIVER 1.3A 24QFN |
2,986 | - |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 180mOhm LS, 180mOhm HS | 1.3A | 3A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|

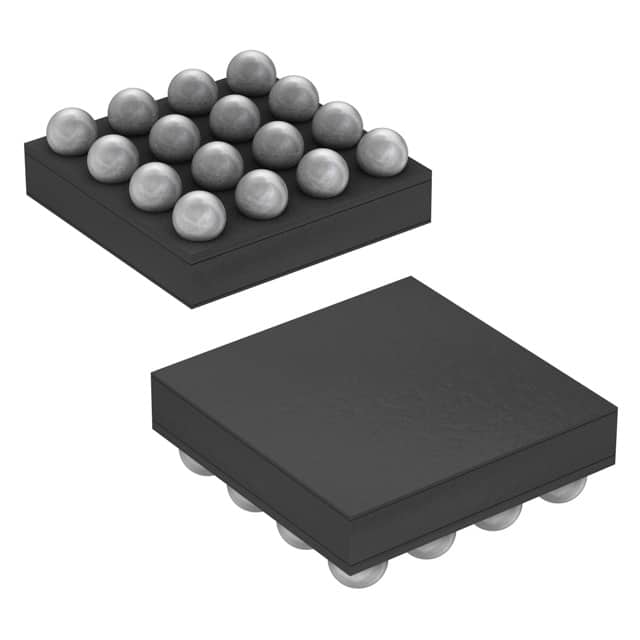

AP1014AECIC HALF BRIDGE DRVR 1.1A 16WLCSP |
4,785 | - |
|
Datasheet | - | 16-UFBGA, WLCSP | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 350mOhm LS + HS | 1.1A | 2A | 2.7V ~ 5.5V | 2V ~ 7V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-WLCSP (1.96x1.96) |
|

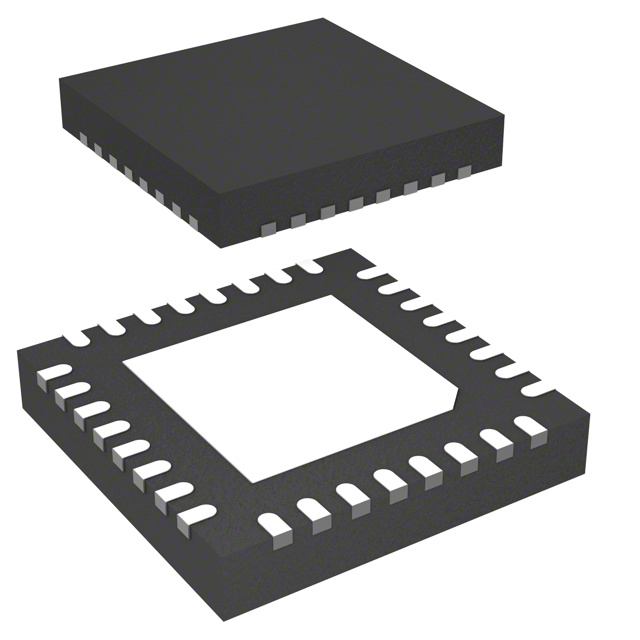

AP1025BENIC HALF BRIDGE DRIVER 1.6A 32QFN |
4,521 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 850mOhm LS + HS | 1.6A | - | 3V ~ 5.5V | 9V ~ 45V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 32-QFN (5x5) |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
