Gate Drivers
Use the filters and product table below to compare Gate Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

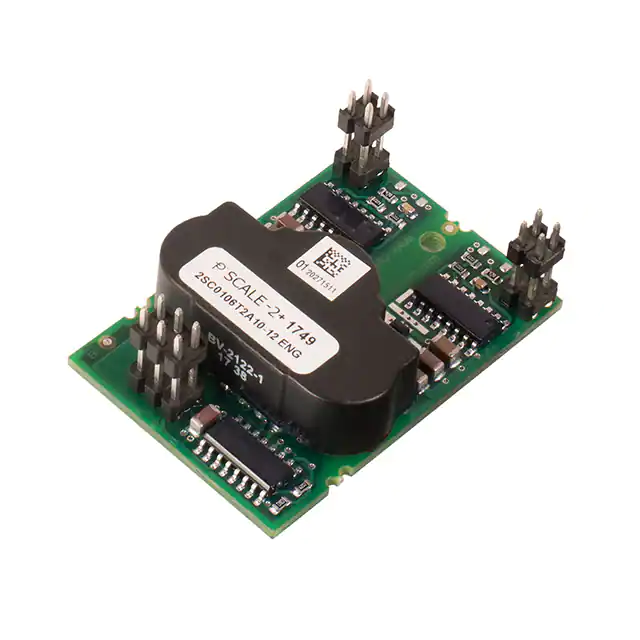

2SC0106T2A1-12IC GATE DRVR HALF-BRIDGE MODULE |
585 | - |
|
Datasheet | SCALE™-2+ | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | - | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | - | - | Surface Mount | Module |
|

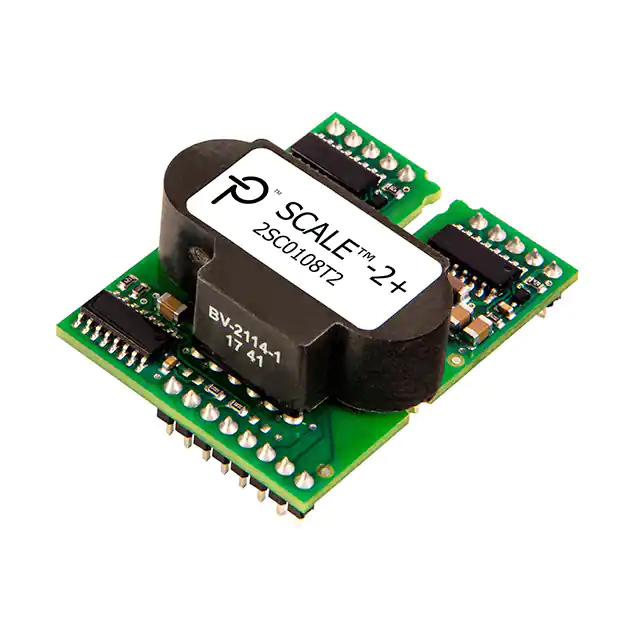

2SC0108T2F1-17IC GATE DRVR HI/LOW SIDE MODULE |
4,839 | - |
|
Datasheet | SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SC0108T2H0-17IC GATE DRVR HI/LOW SIDE MODULE |
228 | - |
|
Datasheet | SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1200 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

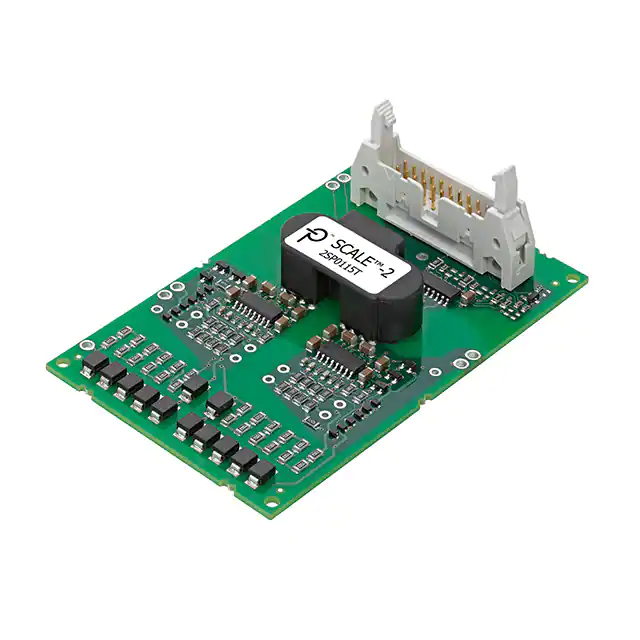

2SP0115T2A0-12IC GATE DRVR HALF-BRIDGE MODULE |
2,078 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1200 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0115T2B0-17IC GATE DRVR HALF-BRIDGE MODULE |
1,489 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1700 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

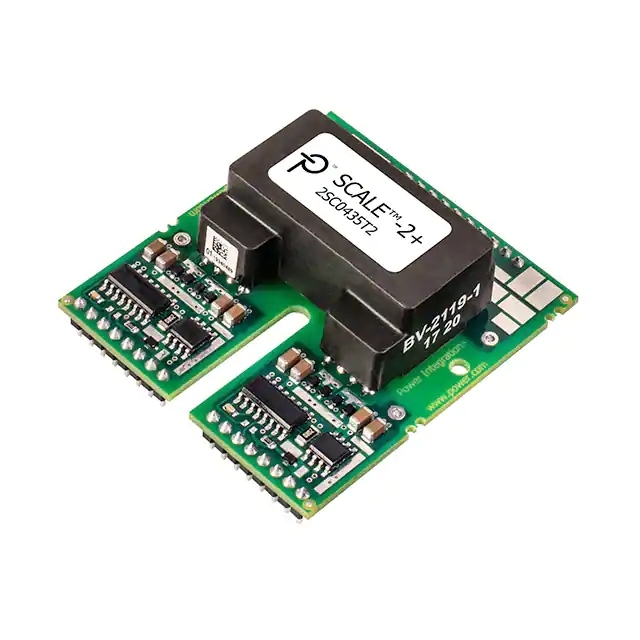

2SC0435T2H0-17IC GATE DRVR HI/LOW SIDE MODULE |
544 | - |
|
Datasheet | SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SC0435T2F1-17IC GATE DRVR HI/LOW SIDE MODULE |
133 | - |
|
Datasheet | SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SD106AI-17 UCIC GATE DRVR HALF-BRIDGE MODULE |
2,101 | - |
|
Datasheet | SCALE™-1 | Module | Tray | Not For New Designs | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 6A, 6A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

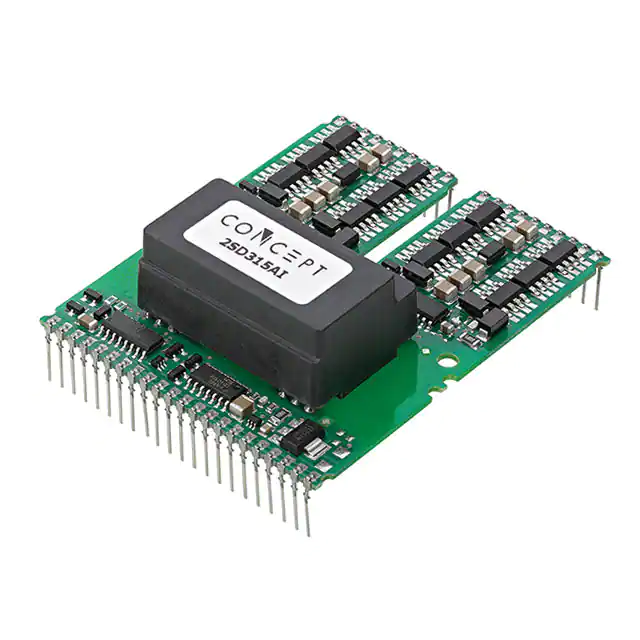

2SD315AIIC GATE DRVR HALF-BRIDGE MODULE |
511 | - |
|
Datasheet | SCALE™-1 | 44-DIP Module, 42 Leads | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | - | - | 18A, 18A | - | - | 160ns, 130ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|

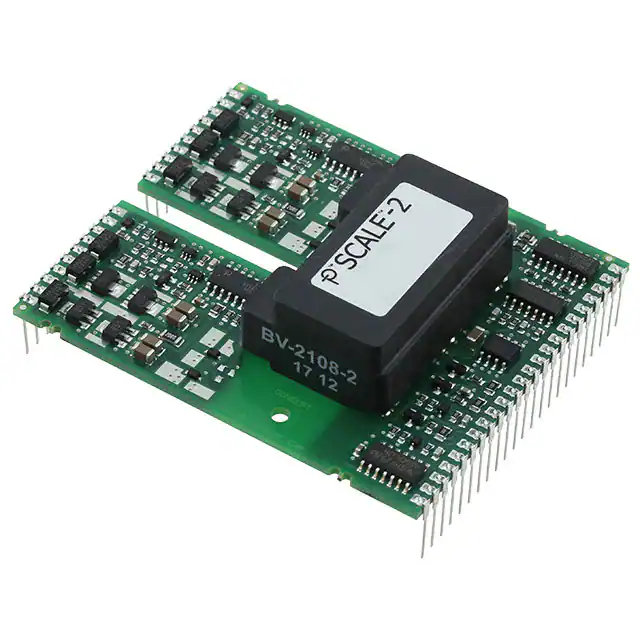

2SD300C17A1IC GATE DRVR HALF-BRIDGE MODULE |
387 | - |
|
Datasheet | SCALE™-2 | 45-DIP Module, 43 Leads | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT | 14V ~ 16V | - | 30A, 30A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
Gate Drivers FAQ
Common questions about filtering, comparing and sourcing Gate Drivers components.
How can I narrow the Gate Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gate Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
