Gate Drivers
Use the filters and product table below to compare Gate Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLA567-11RIC GATE DRVR HALF-BRIDGE MODULE |
4,232 | - |
|
Datasheet | - | 44-DIP Module, 28 Leads | Bulk | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | - | Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C (TA) | - | - | Through Hole | Module |
|
VLA502-01IC GATE DRVR LOW-SIDE MODULE |
3,690 | - |
|
Datasheet | - | 21-SIP Module | Bulk | Active | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|

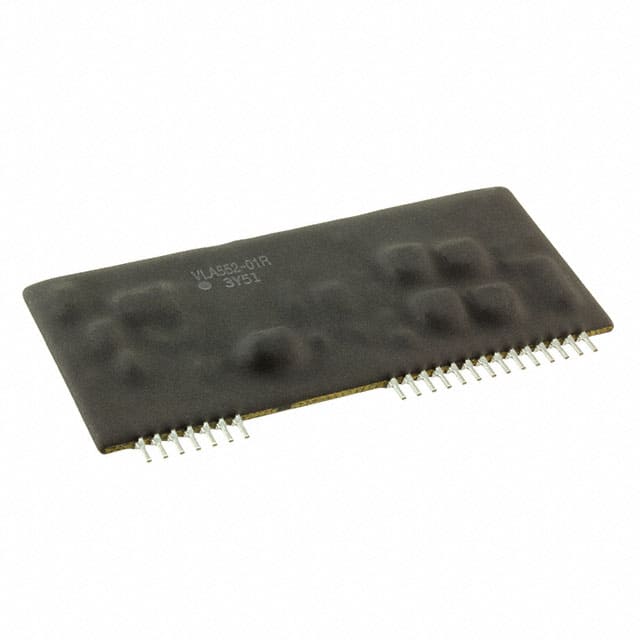

VLA552-01RIC GATE DRVR LOW-SIDE MODULE |
1,378 | - |
|
Datasheet | - | 30-SIP Module, 21 Leads | Bulk | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | - | Inverting, Non-Inverting | - | 600ns, 300ns | -25°C ~ 70°C (TA) | - | - | Through Hole | Module |
.jpg "VLA591-01R")
|

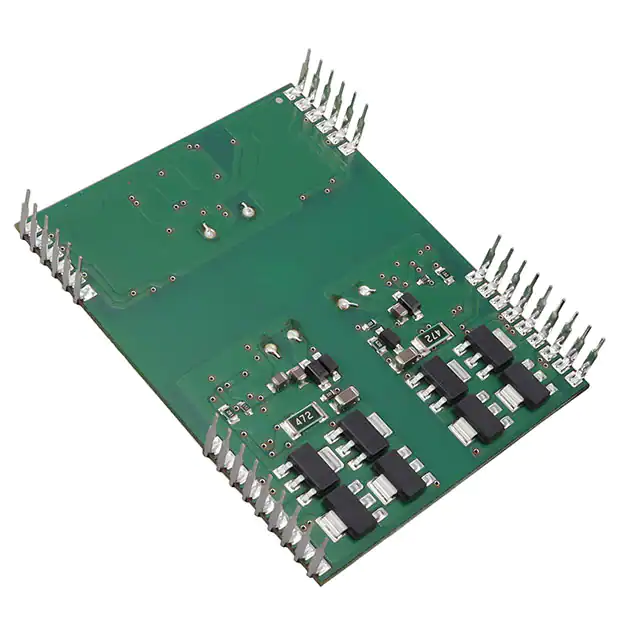

VLA591-01RIC GATE DRVR FULL-BRIDGE MODULE |
1,020 | - |
|
Datasheet | - | 50-DIP Module, 30 Leads | Tray | Discontinued at Digi-Key | Not Verified | Full-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | Non-Inverting | - | 520ns, 120ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
VLA553-01RIC GATE DRVR HALF-BRIDGE OCTAPAK |
2,819 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | OctaPAK 7+1 |
|
|
VLA553-02RIC GATE DRVR HALF-BRIDGE MODULE |
3,412 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | Module |
|
VLA503-01IC GATE DRVR LOW-SIDE MODULE |
4,842 | - |
|
Datasheet | - | 12-SIP | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
M57160AL-01IC GATE DRVR LOW-SIDE MODULE |
1,738 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 500ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57161L-01IC GATE DRVR LOW-SIDE MODULE |
1,165 | - |
|
Datasheet | - | 28-SIP, 15 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14.3V ~ 15.7V | - | 7A, 7A | Non-Inverting | - | 400ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57959LIC GATE DRVR LOW-SIDE MODULE |
3,614 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 2A, 2A | Non-Inverting | - | 500ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
Gate Drivers FAQ
Common questions about filtering, comparing and sourcing Gate Drivers components.
How can I narrow the Gate Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gate Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
