Power Distribution Switches, Load Drivers
Use the filters and product table below to compare Power Distribution Switches, Load Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BV1HL045EFJ-CE2BUILT-IN OUTPUT DIAGNOSIS 1CH HI |
3,024 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 2.5A | 45mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
BM2LC300FJ-CE2AUTOMOTIVE IPD 2CH LOW SIDE SWIT |
1,739 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 2.7A | 350mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOP-J |
|
BD8LA700EFV-CE2IC PWR SWTCH N-CHAN 4:8 24HTSSOP |
9,034 | - |
|
Datasheet | 24-VSSOP (0.220", 5.60mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 8 | 4:8 | Low Side | N-Channel | SPI | 3V ~ 5.5V | 3V ~ 5.5V | 200mA | 1.3Ohm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 24-HTSSOP-B |
|
BM2LC120FJ-CE2AUTOMOTIVE IPD 2CH LOW SIDE SWIT |
6,928 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 6A | 120mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOP-J |
|

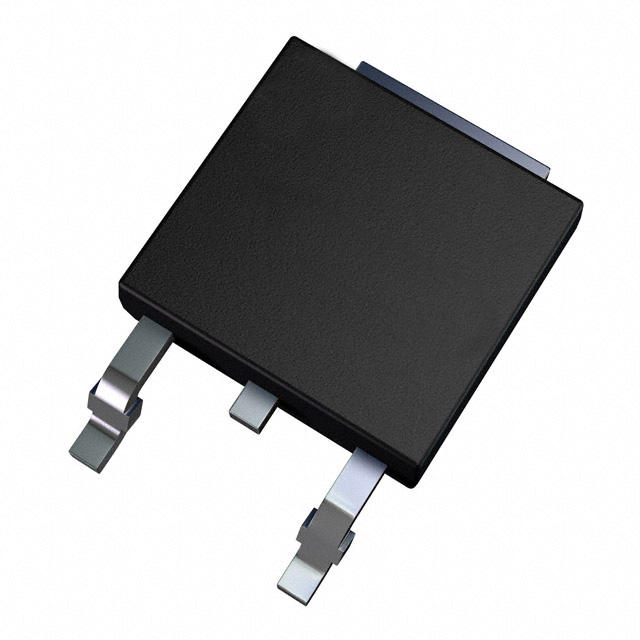

BV1LB045FPJ-CE1IC PWR SWTCH N-CHAN 1:1 TO252-J3 |
5,583 | - |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 18A | 45mOhm | CMOS | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-J3 |
|
|
BV1LB028FPJ-CE1BV1LB028FPJ-C IS AN AUTOMOTIVE 1 |
13,845 | - |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | - | 3V ~ 5.5V | Not Required | 40A | 28mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-J3 |
|
BD6522F-E2IC PWR SWITCH N-CHANNEL 1:1 8SOP |
2,241 | - |
|
Datasheet | 8-SOIC (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 2A | 50mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Over Temperature, Reverse Current, UVLO | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
BD82030FVJ-GE2IC PWR SWITCH N-CHAN 1:1 8TSSOP |
7,250 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1.5A | 72mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TSSOP-BJ |
|
|
BD82061FVJ-LBE2IC HIGH SIDE SWITCH 1CH 8-TSSOP |
2,451 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 70mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TSSOP-BJ |
|
BD82038FVJ-GE21.0A CURRENT LIMIT HIGH SIDE SWI |
5,000 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 72mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP-BJ |
Power Distribution Switches, Load Drivers FAQ
Common questions about filtering, comparing and sourcing Power Distribution Switches, Load Drivers components.
How can I narrow the Power Distribution Switches, Load Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Distribution Switches, Load Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
