Voltage Reference
Browse available Voltage Reference part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1031CCH#PBFIC VREF PRECISION 10V TO39-3 |
1,724 | - |
|
Datasheet | TO-205AD, TO-39-3 Metal Can | - | Bulk | Obsolete | Series, Shunt, Buried Zener | Fixed | 10V | - | 10 mA | ±0.1% | 15ppm/°C | 6µVp-p | 11µVrms | 11V ~ 40V | 2mA | 1.5 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-39-3 |
|
LM4130AIM5X-2.0IC VREF SERIES 0.05% SOT23-5 |
3,722 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.048V | - | 20 mA | ±0.05% | 20ppm/°C | 150µVp-p | - | 2.448V ~ 6V | 90µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LT1236BIS8-10#TRPBFIC VREF PRECISION 0.1% 8SOIC |
4,439 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Shunt, Buried Zener | Fixed | 10V | - | 10 mA | ±0.1% | 10ppm/°C | 6µVp-p | 3.5µVrms | 11.5V ~ 40V | 2mA | 1.7 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
LT6656AIDC-2.048#TRPBFIC VREF SERIES 0.1% 6DFN |
2,028 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.1% | 10ppm/°C | 30ppmp-p | - | 2.548V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656AIDC-3.3#TRPBFIC VREF SERIES 0.1% 6DFN |
3,826 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 5 mA | ±0.1% | 10ppm/°C | 30ppmp-p | - | 3.8V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656AIDC-4.096#TRPBFIC VREF SERIES 0.1% 6DFN |
4,044 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.1% | 10ppm/°C | 30ppmp-p | - | 4.596V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656AIDC-5#TRPBFIC VREF SERIES 0.1% 6DFN |
3,742 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 5 mA | ±0.1% | 10ppm/°C | 30ppmp-p | 140µVrms | 5.5V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656AIDC-2.8#TRPBFIC VREF SERIES 2.8V 6WFDFN |
1,580 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.8V | - | 5 mA | ±0.1% | 10ppm/°C | 30ppmp-p | - | 3.3V ~ 18V | 1.5µA | - | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|

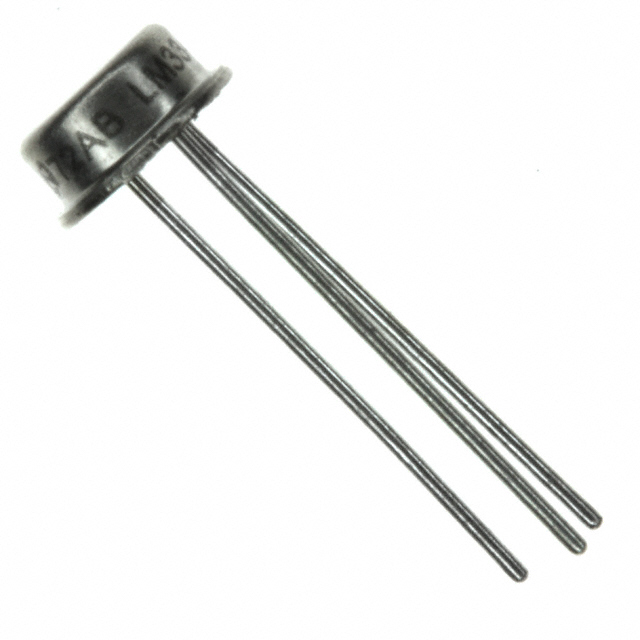

LT1029ACHIC VREF SHUNT 5V TO-46-3 |
3,675 | - |
|
Datasheet | TO-206AB, TO-46-3 Metal Can | - | Bulk | Obsolete | Shunt | - | 5V | - | - | ±0.2% | - | - | - | - | - | - | - | - | - | Through Hole | TO-46-3 |
|
|
LM4130AIM5-2.0IC VREF SERIES 0.05% SOT23-5 |
4,635 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.048V | - | 20 mA | ±0.05% | 20ppm/°C | 150µVp-p | - | 2.448V ~ 6V | 90µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX6072AAUB25+TIC VREF SERIES 0.05% 10UMAX |
3,150 | - |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V, 2.5V | - | 10 mA | ±0.05% | 6ppm/°C | 3.6µVp-p, 4.8µVp-p | 5µVrms, 6µVrms | 2.75V ~ 5.5V | 260µA, 320µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
MAX6072AAUB41+TIC VREF SERIES 0.05% 10UMAX |
4,846 | - |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V, 4.096V | - | 10 mA | ±0.05% | 6ppm/°C | 6.4µVp-p, 9.6µVp-p | 8.6µVrms, 12µVrms | 2.7V ~ 5.5V | 280µA, 350µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
MAX6072AAUB50+TIC VREF SERIES 0.05% 10UMAX |
1,782 | - |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V, 5V | - | 10 mA | ±0.05% | 6ppm/°C | 4.8µVp-p, 9µVp-p | 6µVrms, 15µVrms | 2.8V ~ 5.5V | 320µA, 350µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
REF5025IDG4IC VREF SERIES 0.05% 8SOIC |
1,371 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.05% | 3ppm/°C | 7.5µVpp/V | - | 2.7V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT1460HCS3-10#TRPBFIC VREF SERIES 0.2% SOT23-3 |
4,512 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 10V | - | 40 mA | ±0.2% | 20ppm/°C | 4ppmp-p | 4ppmrms | 10.9V ~ 20V | 350µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LT6658AIDE-1.2#TRPBFIC VREF SERIES 6V 0.05% 16DFN |
1,444 | - |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 1.2V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 0.8ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.2mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658AIDE-3.3#TRPBFIC VREF SERIES 6V 0.05% 16DFN |
4,686 | - |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658AIDE-3#TRPBFIC VREF SERIES 6V 0.05% 16DFN |
2,098 | - |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.6ppmp-p | 2ppmrms | 4.2V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658AIDE-2.5#TRPBFIC VREF SERIES 6V 0.05% 16DFN |
3,435 | - |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 2.5V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.5ppmp-p | 2ppmrms | 3.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658AIDE-1.8#TRPBFIC VREF SERIES 6V 0.05% 16DFN |
1,879 | - |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 1.8V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.0ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.6mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
Voltage Reference FAQ
Common questions about selecting, comparing and sourcing Voltage Reference components through Winsun (HK) Electronics.
What should I check when selecting Voltage Reference components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Reference part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Reference parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Reference components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
