Voltage Reference
Browse available Voltage Reference part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF01EZIC VREF SERIES 0.3% 8CERDIP |
3,780 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | REF01 | Tube | Active | Series | Fixed | 10V | - | 10 mA | ±0.3% | 8.5ppm/°C | 30µVp-p | - | 13V ~ 33V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
REF02CPIC VREF SERIES 1% 8DIP |
1,241 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±1% | 65ppm/°C | 15µVp-p | - | 8V ~ 36V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
REF02CSIC VREF SERIES 1% 8SOIC |
1,867 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±1% | 65ppm/°C | 15µVp-p | - | 8V ~ 36V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF02EZIC VREF SERIES 0.3% 8CERDIP |
4,613 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | REF02 | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.3% | 8.5ppm/°C | 15µVp-p | - | 8V ~ 36V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
REF191ESIC VREF SERIES 0.1% 8SOIC |
4,465 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.048V | - | 30 mA | ±0.1% | 5ppm/°C | 20µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF192ESIC VREF SERIES 0.08% 8SOIC |
3,485 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.5V | - | 30 mA | ±0.08% | 5ppm/°C | 25µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF192FSIC VREF SERIES 0.2% 8SOIC |
3,031 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.5V | - | 30 mA | ±0.2% | 10ppm/°C | 25µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF195ESIC VREF SERIES 0.04% 8SOIC |
3,701 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 5V | - | 30 mA | ±0.04% | 5ppm/°C | 50µVp-p | - | 5.1V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF195GSIC VREF SERIES 0.2% 8SOIC |
4,410 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 5V | - | 30 mA | ±0.2% | 25ppm/°C | 50µVp-p | - | 5.1V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF198ESIC VREF SERIES 0.05% 8SOIC |
1,950 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 4.096V | - | 30 mA | ±0.05% | 5ppm/°C | 40µVp-p | - | 4.5V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF43GSIC VREF SERIES 0.1% 8SOIC |
3,519 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tray | Obsolete | Series | Fixed | 2.5V | - | 20 mA | ±0.1% | 25ppm/°C | - | 10µVrms | 4.5V ~ 40V | 450µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD580SHIC VREF SERIES 1% TO52-3 |
2,747 | - |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 55ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|

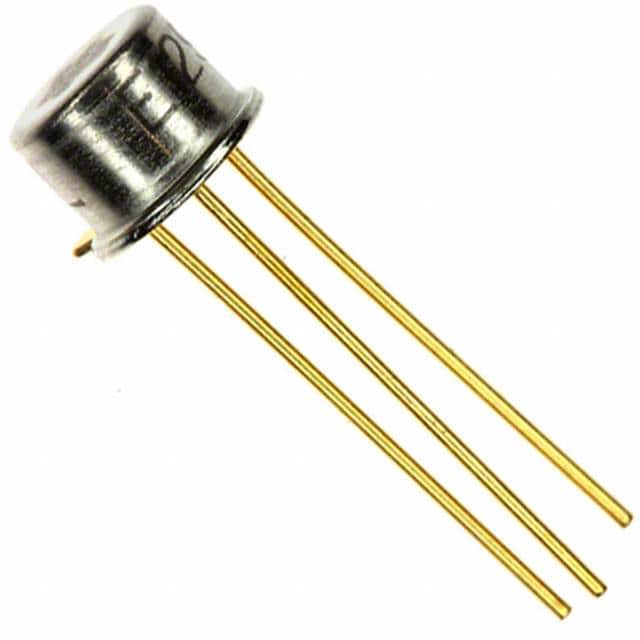

AD580THIC VREF SERIES 0.4% TO52-3 |
2,176 | - |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 25ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|

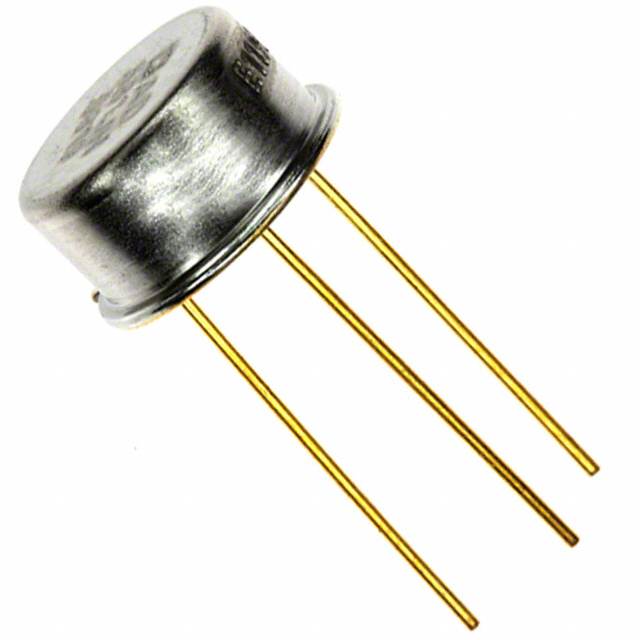

AD581SHIC VREF SERIES 0.3% TO5-3 |
1,639 | - |
|
Datasheet | TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.3% | 30ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-5-3 |
|
|
AD581THIC VREF SERIES 0.1% TO5-3 |
4,671 | - |
|
Datasheet | TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.1% | 15ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-5-3 |
|
|
AD586ARIC VREF SERIES 0.1% 8SOIC |
1,436 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.1% | 15ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AD586AR-REELIC VREF SERIES 0.1% 8SOIC |
4,170 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.1% | 15ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AD586BR-REEL7IC VREF SERIES 0.05% 8SOIC |
3,541 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.05% | 5ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AD586JQIC VREF SERIES 0.4% 8CERDIP |
4,197 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.4% | 25ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
AD586KQIC VREF SERIES 0.1% 8CERDIP |
1,363 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.1% | 15ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-CERDIP |
Voltage Reference FAQ
Common questions about selecting, comparing and sourcing Voltage Reference components through Winsun (HK) Electronics.
What should I check when selecting Voltage Reference components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Reference part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Reference parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Reference components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
