Voltage Reference
Browse available Voltage Reference part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X60008BIS8-25T1IC VREF SERIES 0.02% 8SO |
4,747 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 3ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008CIS8-25IC VREF SERIES 0.02% 8SO |
3,647 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 5ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008CIS8-25T1IC VREF SERIES 0.02% 8SO |
2,994 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 5ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008DIS8-25IC VREF SERIES 0.04% 8SO |
3,030 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 10ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008DIS8-25T1IC VREF SERIES 0.04% 8SO |
1,170 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 10ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008EIS8-41IC VREF SERIES 0.12% 8SO |
3,761 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.12% | 20ppm/°C | 30µVp-p | - | 4.5V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008EIS8-41T1IC VREF SERIES 0.12% 8SO |
2,294 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.12% | 20ppm/°C | 30µVp-p | - | 4.5V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
X60003BIG3-50T1IC VREF SERIES 0.02% SOT23-3 |
3,188 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.02% | 10ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
X60003CIG3-50T1IC VREF SERIES 0.05% SOT23-3 |
4,056 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.05% | 20ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
X60003DIG3-50T1IC VREF SERIES 0.1% SOT23-3 |
1,720 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.1% | 20ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

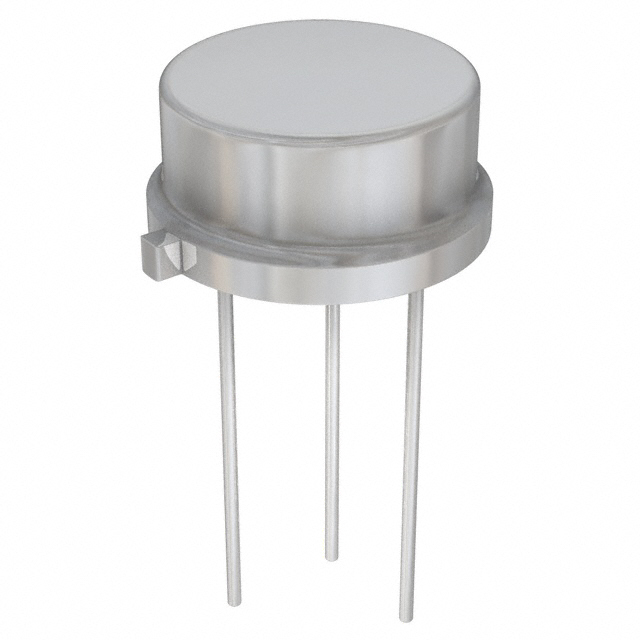

LH0070-1HIC VREF SERIES 0.1% TO39-3 |
3,431 | - |
|
Datasheet | TO-205AD, TO-39-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.1% | - | 6µVp-p | - | 11.4V ~ 40V | 5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-39-3 |
|
|
TL431ACDMIC VREF SHUNT ADJ 1% 8SOIC |
2,997 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg "TL431ACLP")
|
TL431ACLPIC VREF SHUNT ADJ 1% TO92-3 |
3,690 | - |
|
Datasheet | TO-226-2, TO-92-2 (TO-226AC) | - | Strip | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431AIDMIC VREF SHUNT ADJ 1% 8SOIC |
4,459 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431AILPIC VREF SHUNT ADJ 1% TO92-3 |
2,227 | - |
|
Datasheet | TO-226-3, TO-92-3 Long Body | - | Strip | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
TL431BCDMIC VREF SHUNT ADJ 0.4% 8SOIC |
4,759 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431BCLPIC VREF SHUNT ADJ 0.4% TO92-3 |
4,115 | - |
|
Datasheet | TO-226-2, TO-92-2 (TO-226AC) | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431BIDMIC VREF SHUNT ADJ 0.4% 8SOIC |
1,298 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431BILPIC VREF SHUNT ADJ 0.4% TO92-3 |
1,146 | - |
|
Datasheet | TO-226-2, TO-92-2 (TO-226AC) | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431CDMIC VREF SHUNT ADJ 2% 8SOIC |
4,838 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±2% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
Voltage Reference FAQ
Common questions about selecting, comparing and sourcing Voltage Reference components through Winsun (HK) Electronics.
What should I check when selecting Voltage Reference components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Reference part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Reference parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Reference components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
