Voltage Reference
Browse available Voltage Reference part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD584SH/883BIC VREF SERIES 0.3% TO99 |
3,210 | - |
|
Datasheet | TO-99-8 Metal Can | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.3% | 30ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-99-8 |
|
AD586TQ/883BIC VREF SERIES 5V 8CERDIP |
2,367 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 8-CERDIP |
|
AD588TE/883BIC VREF SERIES 20CLCC |
1,205 | - |
|
Datasheet | 20-CLCC | - | Tube | Active | Series | Programmable | 5V | - | 10 mA | - | 3ppm/°C | 6µVp-p | - | - | - | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Surface Mount | 20-CLCC (9x9) |
|
AD589SH/883BIC VREF SHUNT 48TQFP |
1,925 | - |
|
Datasheet | 48-TQFP | - | Tube | Active | Shunt | Fixed | 1.235V | - | - | - | 100ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C | Military | MIL-STD-883 | Surface Mount | 48-TQFP (7x7) |
|

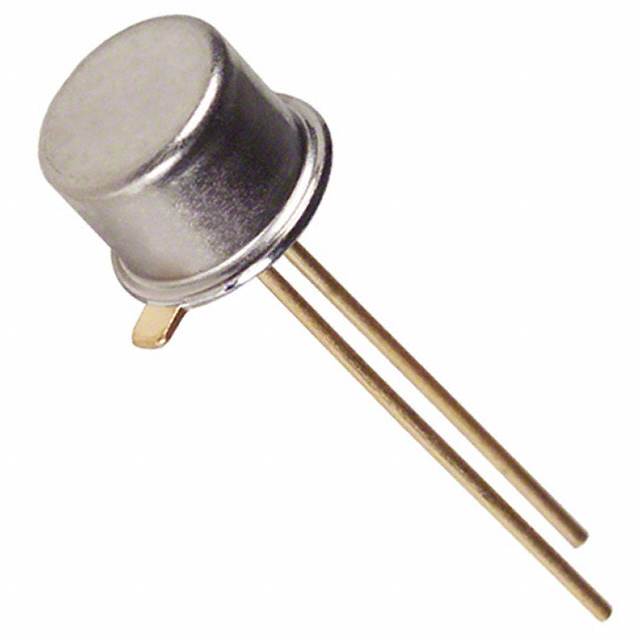

AD589TH/883BIC VREF SHUNT 1.235VTO51-2 |
1,010 | - |
|
Datasheet | TO-51-2 Metal Can | - | Tube | Active | Shunt | Fixed | 1.235V | - | - | - | 50ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-51-2 |
|
|
JM38510/12801BGAIC VREF SERIES TO99 |
2,276 | - |
|
Datasheet | TO-99-8 Metal Can | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | - | 30ppm/°C | - | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
|
REF02AJ/883CIC VREF SERIES 5V TO99-8 |
3,350 | - |
|
Datasheet | TO-99-8 Metal Can | REF02 | Tube | Active | Series | - | 5V | - | - | ±0.3% | - | - | - | - | - | - | - | - | - | Through Hole | TO-99-8 |
|
|
REF02RC/883CIC VREF SERIES 5V 20CLCC |
4,922 | - |
|
Datasheet | 20-CLCC | REF02 | Tube | Active | Series | - | 5V | - | - | ±0.5% | - | - | - | - | - | - | - | - | - | - | 20-CLCC |
|
ISL21090BFB875Z-TKIC VREF SERIES 0.035% 8SOIC |
1,562 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 7.5V | - | 20 mA | ±0.035% | 7ppm/°C | 6.2µVp-p | 4.8µVrms | 9V ~ 36V | 1.3mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg "NCP431ACLPRAG")
|
NCP431ACLPRAGIC VREF SHUNT ADJ 1% TO92 |
4,042 | - |
|
Datasheet | TO-226-3, TO-92-3 Long Body | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 40 µA | ±1% | 50ppm/°C Typical | - | - | - | - | 100 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
LM185BXH-2.5IC VREF SHUNT 1.5% TO2 |
2,525 | - |
|
Datasheet | TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 30ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM185BYH-2.5IC VREF SHUNT 1.5% TO2 |
3,498 | - |
|
Datasheet | TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 50ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM185H-1.2IC VREF SHUNT 1% TO2 |
4,919 | - |
|
Datasheet | TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM285H-1.2IC VREF SHUNT 1% TO2 |
1,099 | - |
|
Datasheet | TO-46-2 Metal Can | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-2 |
|
AP431AQG-7IC VREF SHUNT ADJ 0.5% SOT25 |
1,740 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP431AVG-AIC VREF SHUNT ADJ 0.5% TO92 |
4,405 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
AP431AYG-13IC VREF SHUNT ADJ 0.5% SOT89-3 |
3,804 | - |
|
Datasheet | TO-243AA | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AP431QG-7IC VREF SHUNT ADJ 1% SOT25 |
4,804 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
AP431VG-AIC VREF SHUNT ADJ 1% TO92 |
3,609 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
AP431YG-13IC VREF SHUNT ADJ 1% SOT89-3 |
2,632 | - |
|
Datasheet | TO-243AA | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
Voltage Reference FAQ
Common questions about selecting, comparing and sourcing Voltage Reference components through Winsun (HK) Electronics.
What should I check when selecting Voltage Reference components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Reference part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Reference parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Reference components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
