Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

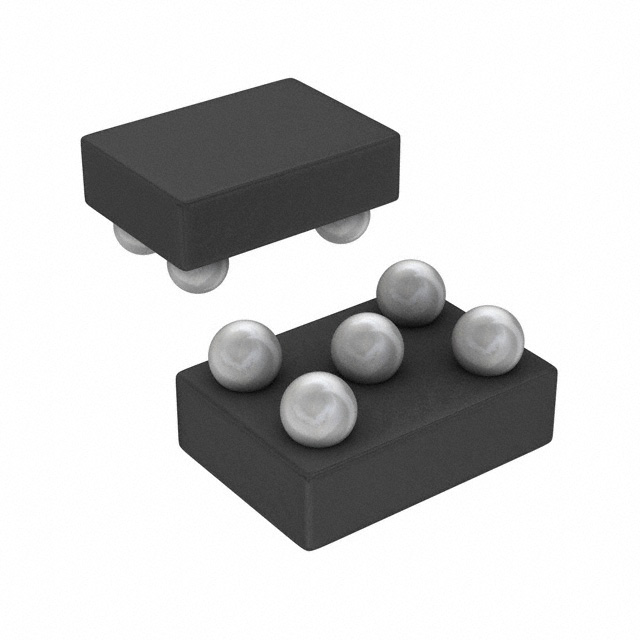

TPS79901YZURIC REG LIN POS ADJ 200MA 5DSBGA |
131 | - |
|
Datasheet | - | 5-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 1.2V | 6.5V | 0.18V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
LP2980AIM5-3.0/NOPBIC REG LINEAR 3V 50MA SOT23-5 |
14,630 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP2985AIM5-4.5/NOPBIC REG LINEAR 4.5V 150MA SOT23-5 |
12,046 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 4.5V | - | 0.58V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
L7824CVIC REG LINEAR 24V 1.5A TO220AB |
10,095 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 50dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TC1262-3.3VDBTRIC REG LIN 3.3V 500MA SOT223-3 |
52,694 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.65V @ 500mA | 500mA | 130 µA | - | 64dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
TPS79730DCKRIC REG LINEAR 3V 50MA SC70-5 |
25,265 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 10mA | 50mA | 2 µA | - | 50dB (100Hz) | Power Good | Over Current, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
LM79L05ACMX/NOPBIC REG LINEAR -5V 100MA 8SOIC |
17,638 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -5V | - | - | 100mA | 6 mA | - | 50dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|

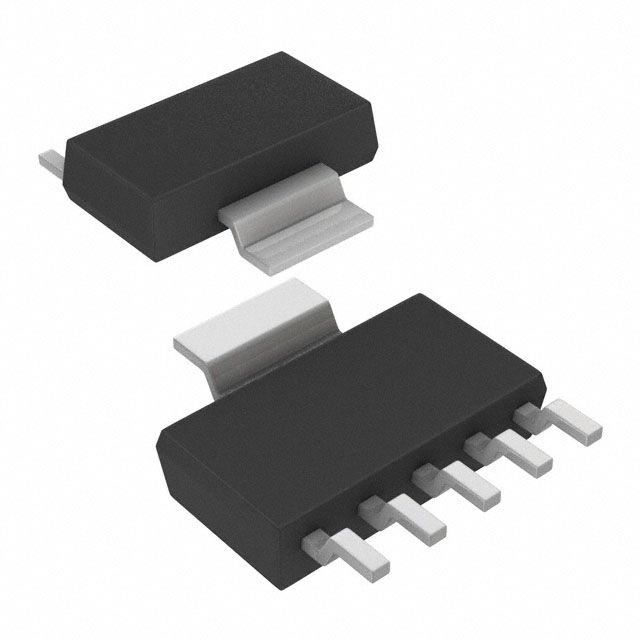

MCP1825T-ADJE/DCIC REG LIN POS ADJ 500MA SOT223 |
11,532 | - |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
TPS78227DDCRIC REG LINEAR 2.7V 150MA SOT23-5 |
11,204 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.25V @ 150mA | 150mA | 1.3 µA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-THIN |
|
L7805CD2T-TRIC REG LINEAR 5V 1.5A D2PAK |
10,241 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
|
TPS78330DDCRIC REG LINEAR 3V 150MA SOT23-5 |
7,211 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.25V @ 150mA | 150mA | 800 nA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 105°C | - | - | Surface Mount | SOT-23-THIN |
|
|
MCP1825ST-3302E/DBIC REG LIN 3.3V 500MA SOT223-3 |
5,802 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MCP1825T-3302E/DCIC REG LIN 3.3V 500MA SOT223-5 |
4,993 | - |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
MCP1825S-3302E/DBIC REG LIN 3.3V 500MA SOT223-3 |
4,903 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
TPS78233DDCRIC REG LINEAR 3.3V 150MA SOT23-5 |
6,097 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.25V @ 150mA | 150mA | 1.3 µA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-THIN |
|
TPS73001DBVRIC REG LIN POS ADJ 200MA SOT23-6 |
4,275 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.22V | 5.5V | 0.21V @ 200mA | 200mA | 250 µA | - | 68dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
MCP1701AT-3302I/CBIC REG LIN 3.3V 150MA SOT23A-3 |
4,211 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.7V @ 150mA | 150mA | 4.5 µA | - | - | - | Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23A-3 |
|
MCP1701AT-3302I/MBIC REG LINEAR 3.3V 150MA SOT89-3 |
2,086 | - |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.7V @ 150mA | 150mA | 4.5 µA | - | - | - | Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
|
|
TS78L05CS RLGIC REG LINEAR 5V 100MA 8SOP |
51,413 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
LP2980IM5-5.0/NOPBIC REG LINEAR 5V 50MA SOT23-5 |
43,855 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
