Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ018EH01ZZIC REG LINEAR 1.8V 1A TO263 |
750 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PQ025EH01ZZIC REG LINEAR 2.5V 1A TO263 |
674 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PQ070XH01ZZIC REG LINEAR POS ADJ 1A TO263 |
472 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCR2EE305,LM(CTIC REG LINEAR 3.05V 200MA ESV |
329 | - |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.05V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|
MIC5370-SPYMT-TRIC REG LINEAR 3V/3.3V 6TMLF |
310 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3V, 3.3V | - | 0.31V @ 150mA, 0.31V @ 150mA | 150mA, 150mA | 45 µA | 85 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
|
TCR2EE41,LM(CTIC REG LINEAR 4.1V 200MA ESV |
222 | - |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.1V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|
LD39030DTPU28RIC REG LINEAR 2.8V 300MA 4DFN |
103 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.33V @ 300mA | 300mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|

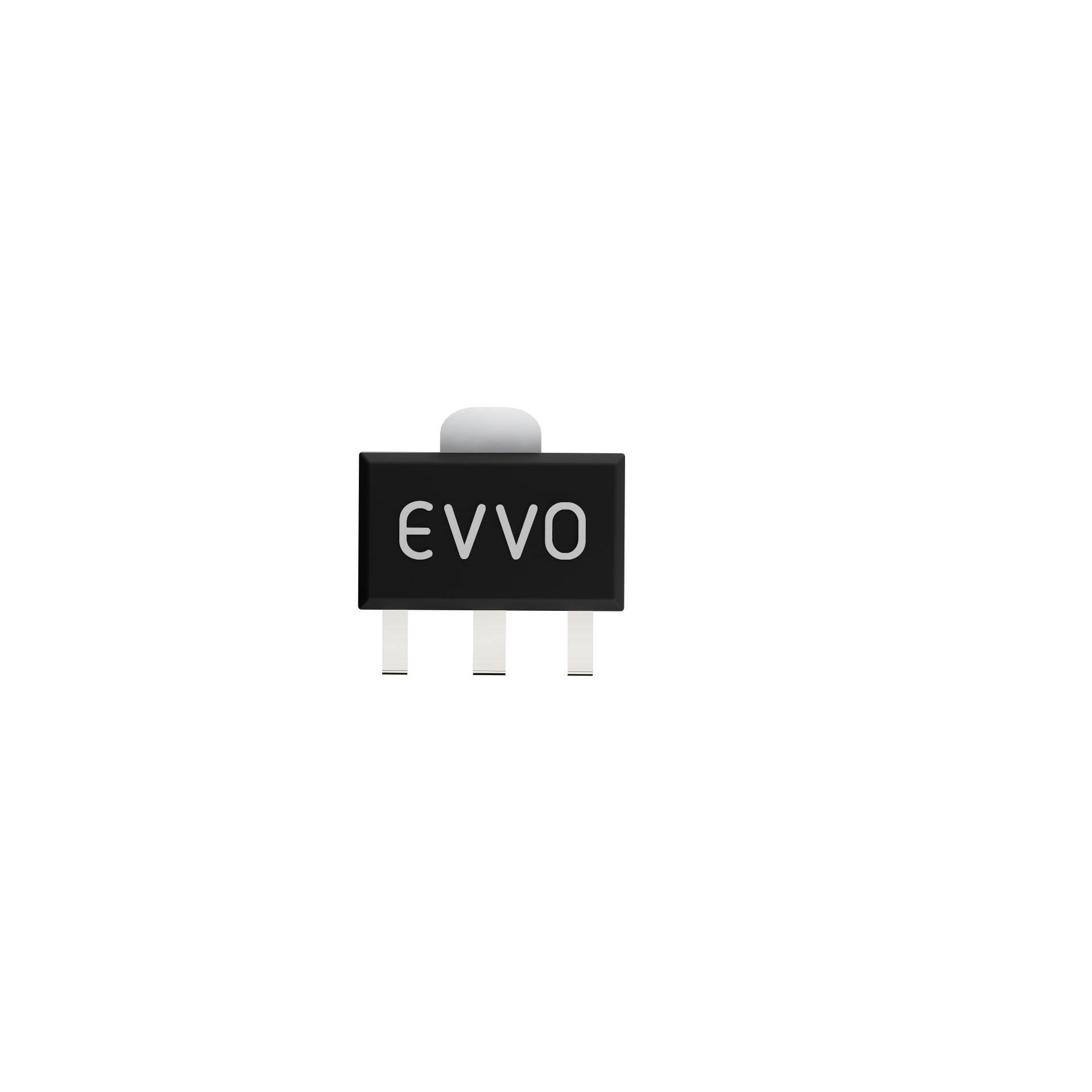

78L06IC REG LINEAR 6V 100MA SOT89-3 |
1,949 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HT7150-1SOT-89 MONITORS & RESET CIRCUITS |
1,064 | - |
|
Datasheet | 71xx | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 3 µA | - | - | - | Short Circuit | -20°C ~ 70°C | - | - | Surface Mount | SOT-89-3 |
|
78L15IC REG LINEAR 15V 100MA SOT89-3 |
1,000 | - |
|
Datasheet | 78LXX | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | 1.7V @ 40mA | 100mA | 6 mA | - | 39dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -20°C ~ 120°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
78L08-150IC REG LINEAR 8V 150MA SOT89-3 |
1,000 | - |
|
Datasheet | 78LXX | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 8V | - | 1.7V @ 40mA | 150mA | 5.5 mA | - | 45dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -20°C ~ 120°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
78L10IC REG LINEAR 10V 100MA SOT89 |
1,000 | - |
|
Datasheet | 78LXX | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | - | 10V | - | 1.7V @ 40mA | 100mA | 5.5 mA | - | 44dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -20°C ~ 120°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
78L09-150IC REG LINEAR 9V 150MA SOT89-3 |
750 | - |
|
Datasheet | 78LXX | TO-243AA | Cut Tape (CT) | Active | Positive | Fixed | 1 | - | 9V | - | 1.7V @ 40mA | 150mA | 5.5 mA | - | 44dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -20°C ~ 120°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
LDF25PT-TRIC REG LINEAR 2.5V 1A PPAK |
490 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.5V | - | 0.5V @ 1A | 1A | 800 µA | - | 60dB ~ 45dB (120Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PPAK |
|
|
TCR2LE285,LM(CTIC REG LINEAR 2.85V 200MA ESV |
923 | - |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.38V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
MIC5206-3.3BMMIC REG LINEAR 3.3V 150MA 8MSOP |
914 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 150mA | 150mA | 150 µA | 2.5 mA | - | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5206-5.0BMMIC REG LINEAR 5V 150MA 8MSOP |
800 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 150mA | 150mA | 150 µA | 2.5 mA | - | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
MIC94310-4YM5-T5IC REG LINEAR 1.2V 200MA SOT23-5 |
1,013 | - |
|
Datasheet | Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC5203-2.8YM5-TRIC REG LINEAR 2.8V 80MA SOT23-5 |
598 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.8V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC5203-3.8YM5-TRIC REG LINEAR 3.8V 80MA SOT23-5 |
545 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.8V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
