Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7347D-28W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
2,395 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.36V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-11W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
4,070 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.1V | - | 0.95V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-18W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
4,168 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.55V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-10W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
3,631 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.95V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|

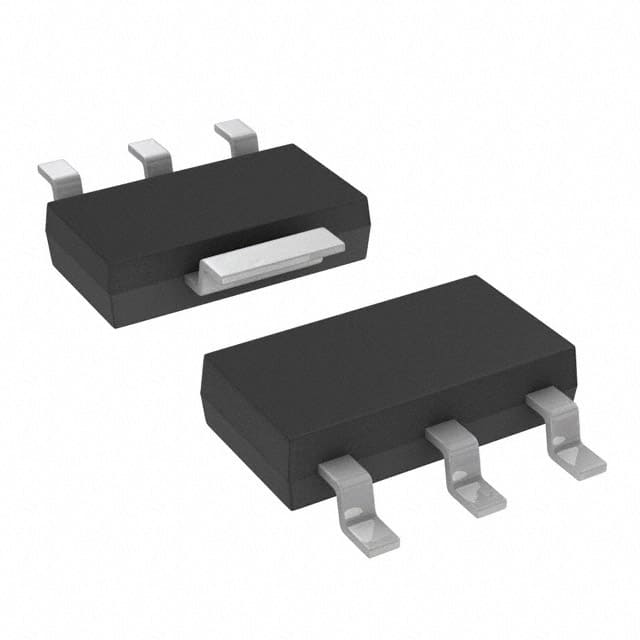

EAN61573601IC REG LINEAR LDO SOT223 |
4,649 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP7315Q-25W5-7IC REG LINEAR 2.5V 150MA SOT25 |
3,353 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.32V @ 150mA | 150mA | 60 µA | 100 µA | 75dB (1kHz) | Enable | Over Current, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-25 |
|
LM317LZXAIC REG LIN POS ADJ 100MA TO92-3 |
1,819 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
AP2125KC-1.8TRE1IC REG LINEAR 1.8V 300MA SC82 |
2,039 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-1.8TRG1IC REG LINEAR 1.8V 300MA SC82 |
3,735 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.5TRE1IC REG LINEAR 2.5V 300MA SC82 |
3,558 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.5TRG1IC REG LINEAR 2.5V 300MA SC82 |
1,587 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.8TRE1IC REG LINEAR 2.8V 300MA SC82 |
4,259 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.8TRG1IC REG LINEAR 2.8V 300MA SC82 |
3,537 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.0TRE1IC REG LINEAR 3V 300MA SC82 |
3,907 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.0TRG1IC REG LINEAR 3V 300MA SC82 |
3,924 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.3TRE1IC REG LINEAR 3.3V 300MA SC82 |
2,902 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.3TRG1IC REG LINEAR 3.3V 300MA SC82 |
1,738 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-4.2TRE1IC REG LINEAR 4.2V 300MA SC82 |
2,986 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 4.2V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-4.2TRG1IC REG LINEAR 4.2V 300MA SC82 |
4,714 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 4.2V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
AP2111H-2.5TRG1IC REG LINEAR 2.5V 600MA SOT223 |
1,612 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 1.3V @ 600mA | 600mA | 80 µA | - | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
