Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG7905AT-DESCIC REG LINEAR -5V 500MA TO39 |
3,730 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 500mA | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7905T-JANIC REG LINEAR -5V 1.5A TO39 |
4,343 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7912AT-DESCIC REG LINEAR -12V 500MA TO39 |
1,528 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 500mA | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7915T-JANIC REG LINEAR -15V 500MA TO39 |
1,610 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -40V | -15V | - | 2.3V @ 500mA | 500mA | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG137AIG-883BIC REG LIN NEG ADJ 1.5A TO257 |
2,469 | - |
|
Datasheet | - | TO-257-3 | Tube | Obsolete | Negative | Adjustable | 1 | -36V | -1.25V | -36V | - | 1.5A | - | - | 66dB ~ 80dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-257 |
|
SG723J-JANIC REG LIN POS ADJ 150MA 14CDIP |
2,513 | - |
|
Datasheet | - | - | Tube | Active | Positive | Adjustable | 1 | 38V | 2V | 37V | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | - | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-CDIP |
|
MIC94345-GYMT-T5IC REG LINEAR 1.8V 500MA 6TDFN |
4,157 | - |
|
Datasheet | Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
AS1369-BWLT-30-10KIC REG LINEAR 3V 200MA 4WLCSP |
4,249 | - |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 200mA | 200mA | 50 µA | 60 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.97x0.97) |
|
|
AS1369-BWLT-33-10KIC REG LINEAR 3.3V 200MA 4WLCSP |
3,775 | - |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 200mA | 200mA | 50 µA | 60 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.97x0.97) |
|
LTC3025IDC-1#PBFIC REG LINEAR POS ADJ 500MA 6DFN |
1,129 | - |
|
Datasheet | - | 6-WFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 0.4V | 3.6V | 0.17V @ 500mA | 500mA | 80 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
SM72238TDX-3.0/NOPBIC REG LINEAR 3V 100MA TO252-3 |
1,321 | - |
|
Datasheet | SolarMagic™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
SM72238TDE-3.0/NOPBIC REG LINEAR 3V 100MA TO252-3 |
2,216 | - |
|
Datasheet | SolarMagic™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|

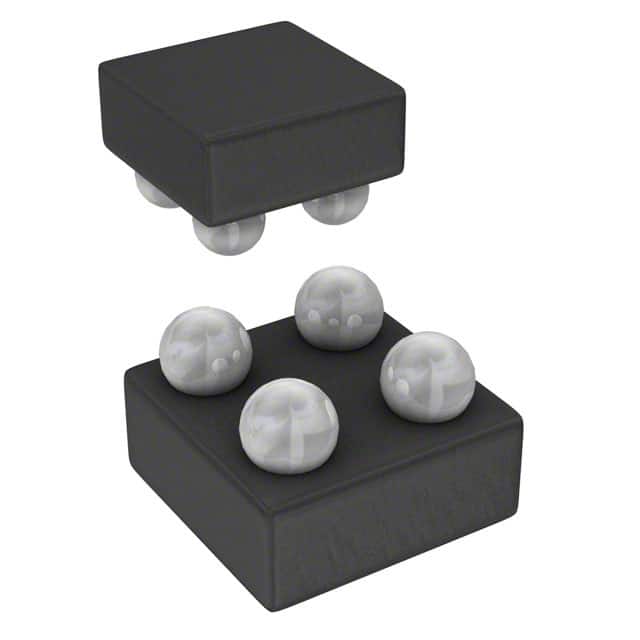

LD39030SJ12RIC REG LIN 1.2V 300MA 4FLIPCHIP |
2,121 | - |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.3V @ 300mA | 300mA | 50 µA | 85 µA | 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-Flipchip (0.79x0.79) |
|
TLE72762EXUMA1IC REG LIN 5V 300MA SSOP-14-EP |
2,954 | - |
|
Datasheet | OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14-EP |
|
AOZ2003PIIC REG LINEAR POS ADJ 3A 8SO |
3,411 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1V | 5.15V | 0.35V @ 3A | 3A | 1 mA | - | - | Enable, Power Good | Over Current, Over Temperature, Power On Reset (POR), Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO-EP |
|
MAX1819EBL25-TIC REG LIN POS ADJ 500MA 6UCSP |
3,190 | - |
|
Datasheet | - | 6-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (2.5V) | 5V | 0.28V @ 500mA | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UCSP (1.52x1.52) |
|
MAX8881EUT33-TIC REG LINEAR 3.3V 200MA SOT23-6 |
4,719 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.2V @ 50mA | 200mA | 10 µA | - | - | Enable, Power Good | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
.jpg "BA09CC0WT-V5")
|
BA09CC0WT-V5IC REG LINEAR 9V 1A TO220FP-5 |
1,025 | - |
|
Datasheet | - | TO-220-5 Full Pack | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 9V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
BD3988FV-E2IC REG LINEAR POS/NEG ADJ 8SSOPB |
1,970 | - |
|
Datasheet | - | 8-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive and Negative | Adjustable | 2 | 18V, -7V | 14V, -6.5V | 16V, -8.5V | 0.35V @ 25mA, 0.45V @ 50mA | 25mA, 50mA | 0.5 mA | 850 µA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP-B |
|
BD3989FV-E2IC REG LINEAR POS/NEG ADJ 8SSOPB |
1,776 | - |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive and Negative | Adjustable | 2 | 18V, -7.5V | 14V, -6.5V | 16V, -8.5V | 0.35V @ 25mA, 0.45V @ 50mA | 25mA, 50mA | 0.5 mA | 850 µA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP-B |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
