Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE4284DV33NTMA1IC REG LINEAR 3.3V 1A TO252-3-11 |
2,863 | - |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 3.3V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
TLE4473GV53NTIC REG LINEAR 3.3V/5V DSO12-11 |
4,923 | - |
|
Datasheet | OPTIREG™ | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 42V | 3.3V, 5V | - | - | 300mA, 180mA | 265 µA | 20 mA | 65dB (100Hz), 65dB (100Hz) | Inhibit, Reset, Watchdog | Over Current, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-12-11 |
|
TLE4253GSXUMA2IC REG LINEAR POS ADJ 250MA DSO8 |
3,027 | - |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 40V | Tracking | - | 0.6V @ 200mA | 250mA | 150 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
|
TLE4254GSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
3,366 | - |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
TLE4296GV30NTSA1IC REG LINEAR 3V 30MA SCT595-5 |
2,751 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 3V | - | 0.3V @ 20mA | 30mA | 170 µA | 4.5 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4296GV50NTSA1IC REG LINEAR 5V 30MA SCT595-5 |
2,656 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 5V | - | 0.3V @ 20mA | 30mA | 170 µA | 5.2 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4295GV33NTSA1IC REG LINEAR 3.3V 30MA SCT595-5 |
4,029 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4274DV50ITJKKNTMA1IC REG LINEAR 5V 400MA TO252-3 |
3,177 | - |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
|
TLE42742DV50NTMA1IC REG LINEAR 5V 400MA |
2,800 | - |
|
Datasheet | OPTIREG™ | - | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | - | - |
|

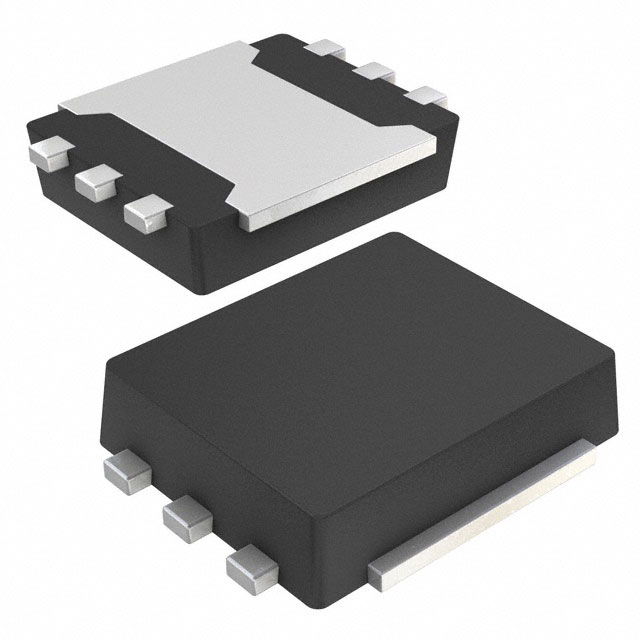

S-1135A11-A6T1UIC REG LINEAR 1.1V 300MA HSNT-6A |
3,467 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
S-1135A11-M5T1UIC REG LINEAR 1.1V 300MA SOT23-5 |
3,934 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A13-M5T1UIC REG LINEAR 1.3V 300MA SOT23-5 |
4,273 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A25-M5T1UIC REG LINEAR 2.5V 300MA SOT23-5 |
4,563 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A29-A6T1UIC REG LINEAR 2.9V 300MA HSNT-6A |
4,996 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135A29-M5T1UIC REG LINEAR 2.9V 300MA SOT23-5 |
2,290 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A33-M5T1UIC REG LINEAR 3.3V 300MA SOT23-5 |
3,462 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B12-M5T1UIC REG LINEAR 1.2V 300MA SOT23-5 |
1,441 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B16-M5T1UIC REG LINEAR 1.6V 300MA SOT23-5 |
3,819 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.6V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B25-A6T1UIC REG LINEAR 2.5V 300MA HSNT-6A |
1,775 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135B33-U5T1UIC REG LINEAR 3.3V 300MA SOT89-5 |
4,415 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
