Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM3940ISX-3.3/NOPBIC REG LIN 3.3V 1A DDPAK/TO263-3 |
2,640 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7.5V | 3.3V | - | 0.2V @ 100mA | 1A | - | - | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM2940IMP-12/NOPBIC REG LINEAR 12V 1A SOT223-4 |
2,283 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 12V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 66dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-4 |
|
TPS7A9201DSKRIC REG LINEAR POS ADJ 2A 10SON |
7,355 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.2V | 0.4V @ 2A | 2A | 3.5 mA | 4 mA | 40dB (500kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-SON (2.5x2.5) |
, SC-63.jpg "LR12K4-G")
|
LR12K4-GIC REG LIN POS ADJ 50MA TO252-3 |
3,579 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 100V | 1.2V | 88V | - | 50mA | - | - | 60dB (120Hz) | - | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
BD450M5FP-CE2IC REG LINEAR 5V 500MA TO252-3 |
2,987 | - |
|
Datasheet | BD4xxM5-C | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.75V @ 300mA | 500mA | 175 µA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-3 |
|
MIC5281YMME-TRIC REG LINEAR POS ADJ 25MA 8MSOP |
2,500 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 120V | 1.27V | 5.5V | 3V @ 25mA | 25mA | 11 µA | - | 90dB (20kHz ~ 2MHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP-EP |
|

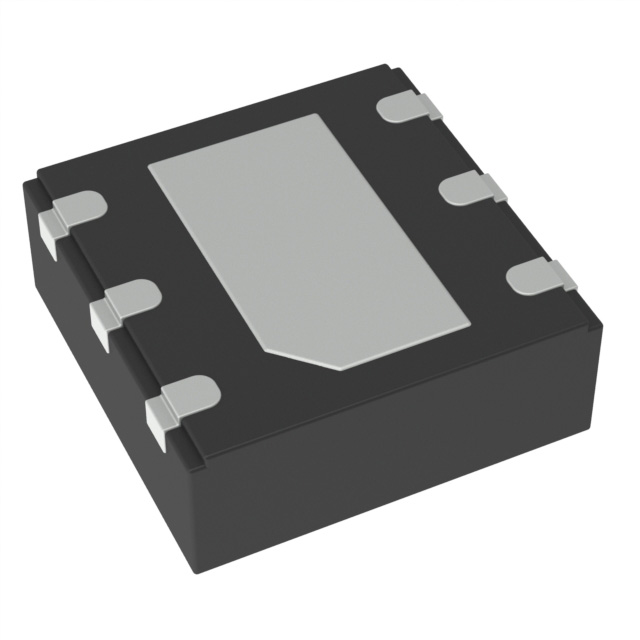

LDO40LPU33RYIC REG LINEAR 3.3V 400MA 6DFN |
9,471 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 3.3V | - | 0.27V @ 400mA | 400mA | 90 µA | 140 µA | 77dB ~ 42dB (100Hz ~ 10kHz) | Enable | Current Limit, Thermal Shutdown | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
LM2936BMX-5.0/NOPBIC REG LINEAR 5V 50MA 8SOIC |
2,247 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | Shutdown | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TPS73518QDRBRQ1IC REG LINEAR 1.8V 500MA 8SON |
4,434 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.5V @ 500mA | 500mA | 65 µA | - | 60dB ~ 21dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SON (3x3) |
|
LM337T/NOPBIC REG LIN NEG ADJ 1.5A TO220-3 |
1,569 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 77dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
NCV4274CST50T3GIC REG LINEAR 5V 400MA SOT223 |
4,314 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 250 µA | 35 mA | 60dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
SPX29302T5-L/TRIC REG LINEAR POS ADJ 3A TO263-5 |
3,500 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.25V | 16V | 0.8V @ 3A | 3A | - | - | - | Enable | Over Current, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
TLE4276DVATMA2IC REG LIN POS ADJ 400MA TO252-5 |
3,384 | - |
|
Datasheet | OPTIREG™ | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 2.5V | 20V | 0.5V @ 250mA | 400mA | 200 µA | 25 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5-1 |
|
TPS74801RGWRIC REG LIN POS ADJ 1.5A 20VQFN |
6,270 | - |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.16V @ 1.5A | 1.5A | - | - | 50dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|
|
LM2937IMPX-3.3/NOPBIC REG LIN 3.3V 500MA SOT223-4 |
2,426 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LM2936HVBMAX3.3/NOPBIC REG LINEAR 3.3V 50MA 8SOIC |
1,677 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.3V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | Shutdown | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LM340S-5.0/NOPBIC REG LIN 5V 1.5A DDPAK/TO263-3 |
7,360 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LM1086ISX-3.3/NOPBIC REG LIN 3.3V 1.5A DDPAK |
1,474 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
MIC2954-08YM-TRIC REG LIN POS ADJ 250MA 8SOIC |
11,766 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 250mA | 250mA | 300 µA | 12 mA | - | Enable | Load Dump, Over Current, Over Temperature, Reverse Polarity, UV POR | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS7B8601QDDARQ1IC REG LIN POS ADJ 8SO PWRPAD |
4,960 | - |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 18V | 0.570V @ 500mA | 500mA | 26 µA | - | 70dB (1kHz) | Current Limit, Delay, Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
