Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

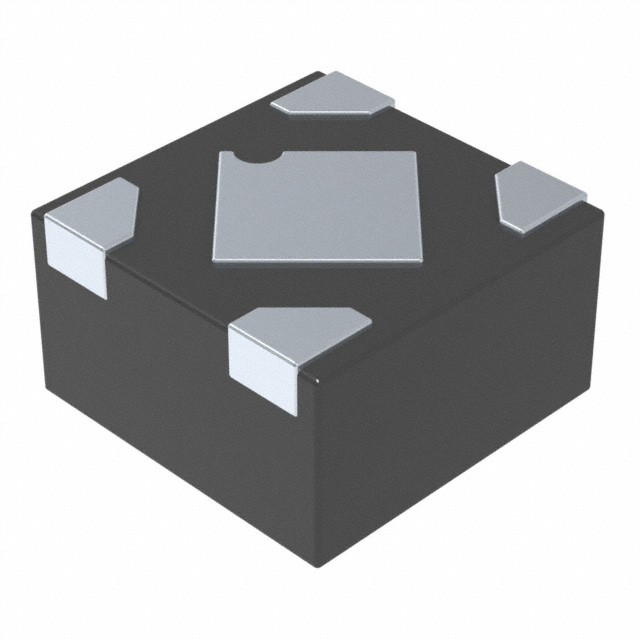

MCP1811BT-020/HCAIC REG LINEAR 150MA 4UDFN |
2,818 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|

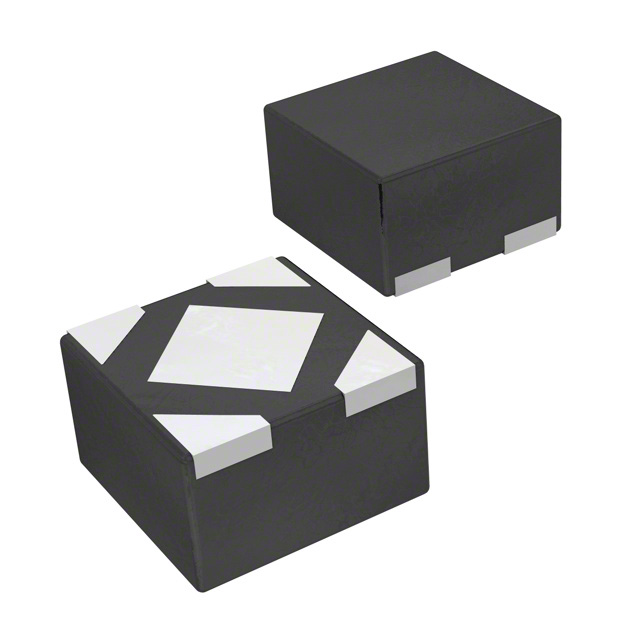

MCP1711T-20I/5XIC REG LINEAR 2.0V 150MA 4UQFN |
2,237 | - |
|
Datasheet | Ripple Blocker™ | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 1.2V @ 150mA | 150mA | 1.5 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UQFN (1x1) |
|

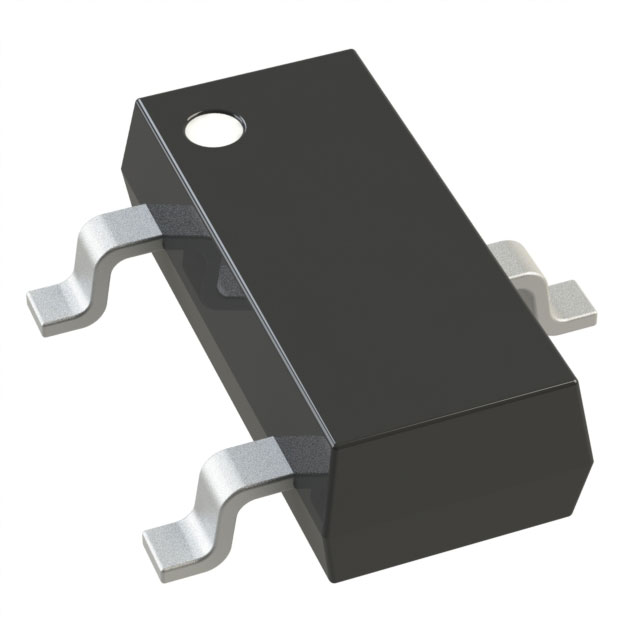

MCP1810T-36I/TTIC REG LINEAR 150MA SOT23 |
1,735 | - |
|
Datasheet | Ripple Blocker™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.28V @ 100mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
MCP1811BT-012/HCAIC REG LINEAR 150MA 4UDFN |
4,962 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811BT-030/HCAIC REG LINEAR 150MA 4UDFN |
2,605 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812BT-040/HCAIC REG LINEAR 300MA 4UDFN |
1,141 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
MCP1810T-21I/J8AIC REG LINEAR 150MA 8VDFN |
4,889 | - |
|
Datasheet | Ripple Blocker™ | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.38V @ 150mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 8-VDFN (2x2) |
|
|
MCP1811BT-018/HCAIC REG LINEAR 150MA 4UDFN |
4,024 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
MCP1711T-20I/OTIC REG LINEAR 2.0V 150MA SOT23-5 |
4,453 | - |
|
Datasheet | Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 1.2V @ 150mA | 150mA | 1.5 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP1812AT-040/HCAIC REG LINEAR 300MA 4UDFN |
1,195 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-040/HCAIC REG LINEAR 150MA 4UDFN |
3,617 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812AT-033/HCAIC REG LINEAR 300MA 4UDFN |
1,501 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
MIC5504-3.0YM5-T5IC REG LINEAR 3V 300MA 4TDFN |
3,654 | - |
|
Datasheet | Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.38V @ 300mA | 300mA | 55 µA | 65 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP1812BT-033/HCAIC REG LINEAR 300MA 4UDFN |
4,769 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811BT-010/HCAIC REG LINEAR 150MA 4UDFN |
3,882 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812AT-012/HCAIC REG LINEAR 300MA 4UDFN |
4,102 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-020/HCAIC REG LINEAR 150MA 4UDFN |
3,865 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|

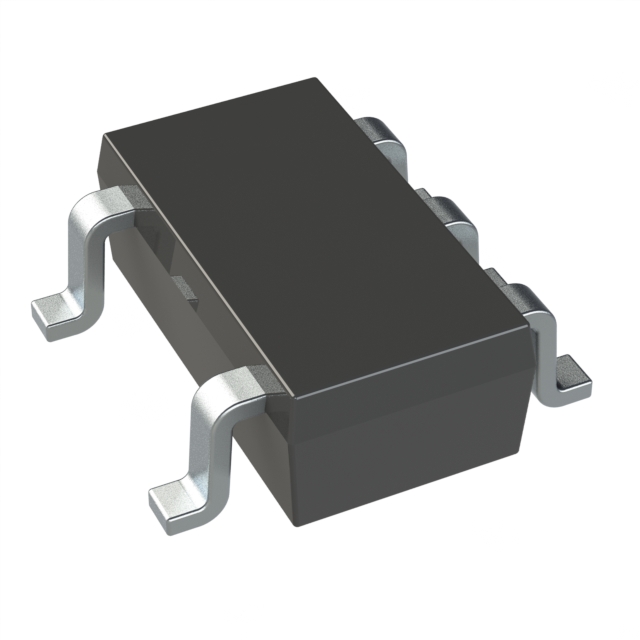

MCP1810T-22I/OTIC REG LINEAR 150MA SOT23 |
2,021 | - |
|
Datasheet | Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.2V | - | 0.38V @ 150mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP1811AT-010/HCAIC REG LINEAR 150MA 4UDFN |
1,511 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1812BT-012/HCAIC REG LINEAR 300MA 4UDFN |
4,490 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 300mA | 300mA | 0.5 µA | 220 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
