Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M38510/10201SIASPACE-GRADE, 9.5-V TO 40-V, 150- |
1,768 | - |
|
Datasheet | - | TO-100-10 Metal Can | Tray | Active | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 64dB ~ 74dB (10kHz) | Current Limit | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
LM2937ESX-15/ELLI942PROTOTYPE |
4,560 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 15V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LP2985AIM5X-3.3/E7002217PROTOTYPE |
4,498 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.575V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LP3878SD-1.0/NOPBPROTOTYPE |
3,812 | - |
|
Datasheet | LP3878 | 8-WDFN Exposed Pad | Bulk | Active | Positive | Fixed | 1 | 16V | 1V | 5.5V | - | 800mA | 225 µA | 15 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
JM38510/10201SCASPACE-GRADE, 9.5-V TO 40-V, 150- |
4,565 | - |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | 3.5 mA | - | 64dB ~ 74dB (10kHz) | Current Limit | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
|
LP3985IM5X-3.3/E7002288PROTOTYPE |
2,388 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 550mA | 150 µA | 200 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM2941SX/SL163215PROTOTYPE |
1,245 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 20 mA | 60 mA | - | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP2981IM5X-36CPROTOTYPE |
2,063 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 16V | 3.6V | - | 0.375V @ 100mA | 100mA | 125 µA | 1.7 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

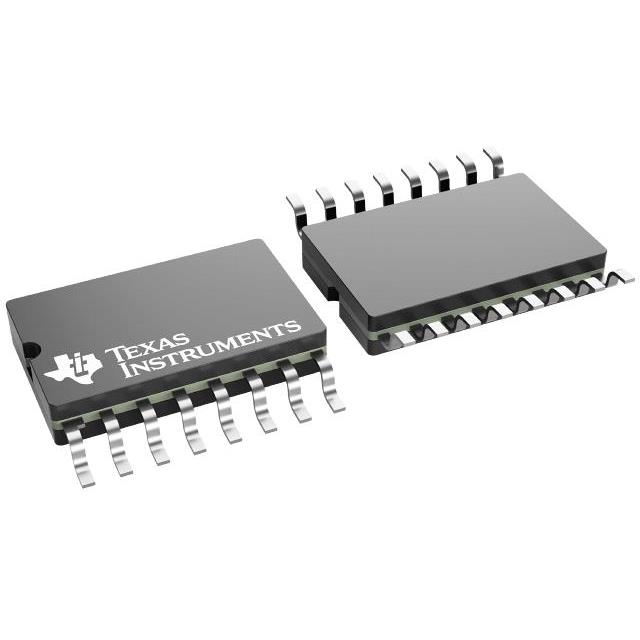

LP2953AMGW/883ADJUSTABLE MICROPOWER LOW-DROPOU |
1,582 | - |
|
Datasheet | - | 16-CSOIC (0.241", 6.12mm Width) | Tray | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.23V (5V) | 29V | 0.8V @ 250mA | 250mA | 28 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
LP2953AMGW-QMLVSPACE-GRADE QMLV, -20-V TO 30-V, |
4,721 | - |
|
Datasheet | - | 16-CSOIC (0.241", 6.12mm Width) | Tray | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.23V (5V) | 29V | 0.8V @ 250mA | 250mA | 28 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|

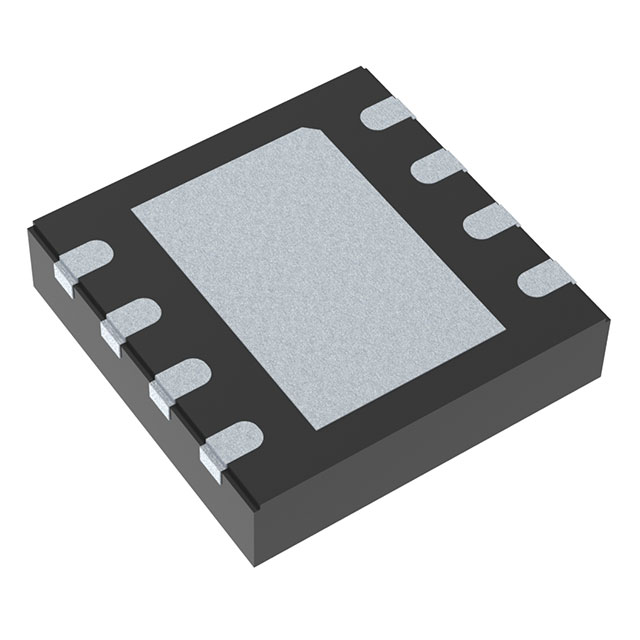

MCP1722-5012H/Q8BVAOHIGH VOLTAGE DUAL OUTPUT LDO 5.0 |
1,860 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 5V, 12V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MIC29302WT-L33.0A LDO ADJ. + SHUTDOWN |
2,135 | - |
|
Datasheet | - | TO-247-5 | Tube | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 3A | 3A | 35 mA | - | - | Enable | Load Dump, Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-247-5 |
|
|
MCP1722-5010H/Q8BVAOHIGH VOLTAGE DUAL OUTPUT LDO 5.0 |
4,098 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 5V, 10V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722T-3310H/Q8BVAOHIGH VOLTAGE DUAL OUTPUT LDO 3.3 |
1,085 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 1V, 3.3V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|

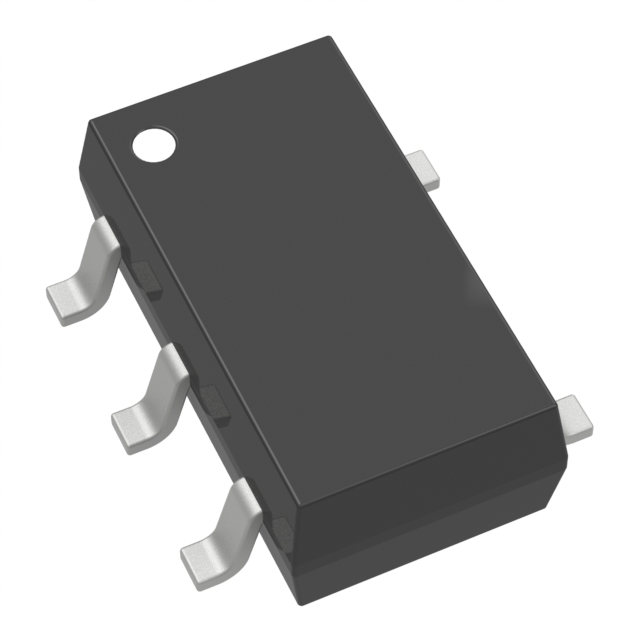

MIC5205YM5-TX150MA 1% LOW NOISE LDO |
4,131 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.242V | 15.65V | 0.35V @ 150mA | 150mA | 150 µA | 2.5 mA | 75dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP1722T-3312H/Q8BVAOHIGH VOLTAGE DUAL OUTPUT LDO 3.3 |
4,401 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 3.3V, 12V | - | 0.75V @ 50mA, 0.75V @ 100mA (Max) | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Load Dump, Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722-5012H/S7XVAOHIGH VOLTAGE DUAL OUTPUT LDO 5.0 |
4,611 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 5V, 12V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MCP1722-3310H/Q8BVAOHIGH VOLTAGE DUAL OUTPUT LDO 3.3 |
4,852 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 1V, 3.3V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
LM138K-MILLM138QML 2-TO |
1,430 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 40V | 1.2V | 35V | - | 5A | 5 mA | - | - | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
|
AS78L12R-E1IC CHIP |
3,593 | - |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 36V | 12V | - | 1.8V @ 100mA | 100mA | 6 mA | - | 42dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
Common questions about selecting, comparing and sourcing Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components through Winsun (HK) Electronics.
What should I check when selecting Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
