Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1APF-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
2,742 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1APF-B-18V-FRELAY GEN PURPOSE SPST 10A 18V |
1,103 | - |
|
Datasheet | JS | Box | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 20 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

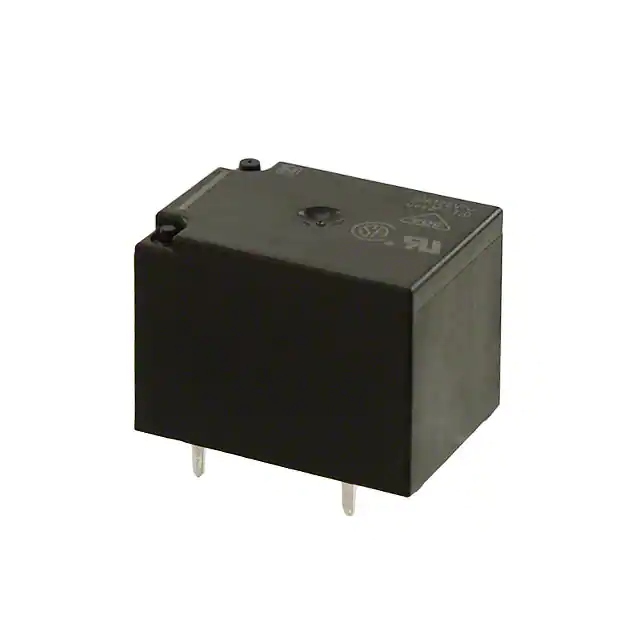

JS1APF-B-24V-FRELAY GEN PURPOSE SPST 10A 24V |
4,288 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1APF-B-48V-FRELAY GEN PURPOSE SPST 10A 48V |
1,132 | - |
|
Datasheet | JS | Box | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

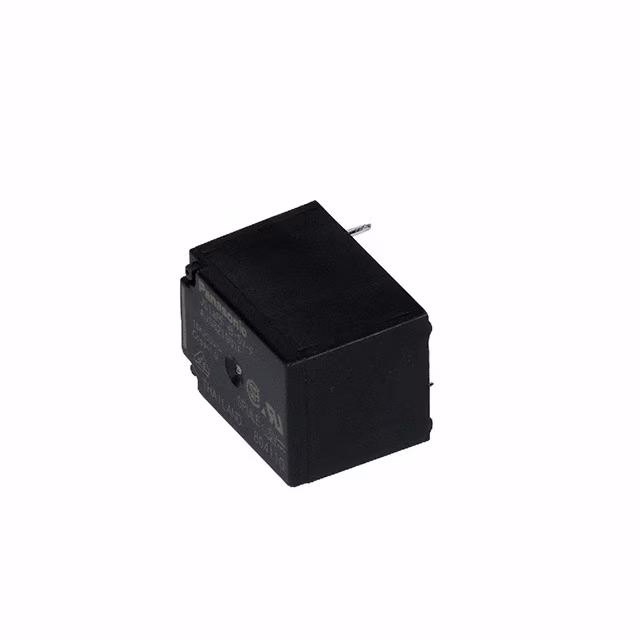

JS1APF-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
3,798 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1APF-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
2,595 | - |
|
Datasheet | JS | Box | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1APF-B-9V-FRELAY GEN PURPOSE SPST 10A 9V |
4,579 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1-F-24V-F-6KRELAY GEN PURPOSE SPDT 10A 24V |
2,110 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1F-F-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
3,816 | - |
|
Datasheet | JS | Box | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JTV1S-PA-12VRELAY GEN PURPOSE SPST 20A 12V |
3,751 | - |
|
Datasheet | JT-V | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

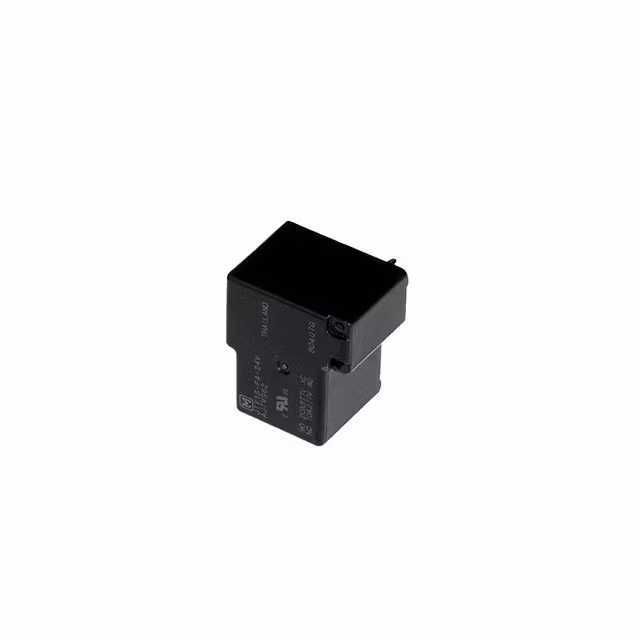

JTV1S-PA-24VRELAY GEN PURPOSE SPST 20A 24V |
2,308 | - |
|
Datasheet | JT-V | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JTV1S-TMP-12VRELAY GEN PURPOSE SPST 20A 12V |
3,287 | - |
|
Datasheet | JT-V | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 83.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JTV1S-TMP-24VRELAY GEN PURPOSE SPDT 20A 24V |
4,511 | - |
|
Datasheet | JT-V | Box | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

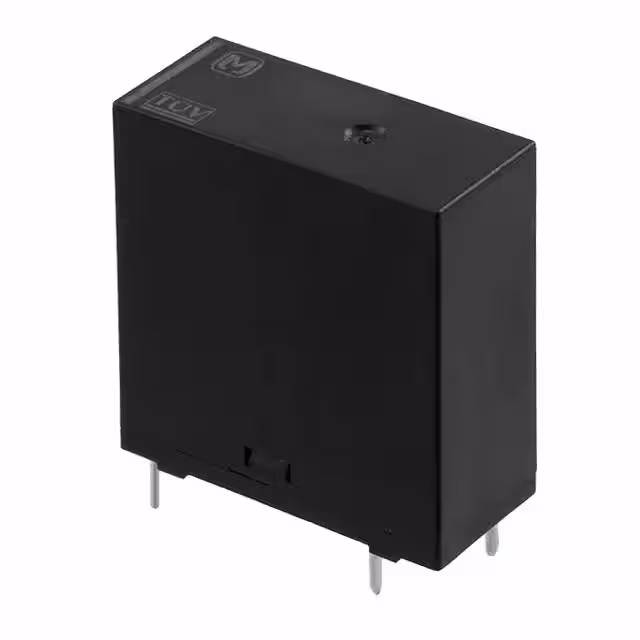

LKG1AF-24V-10-1RELAY GEN PURPOSE SPST 10A 24V |
3,695 | - |
|
Datasheet | LK-G | Box | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
NC2D-JP-AC100VRELAY GEN PURPOSE DPDT 5A 100V |
3,944 | - |
|
Datasheet | NC | Box | Obsolete | Through Hole | 100VAC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 10.5 mA | Non Latching | - | PC Pin | - | - | 80 VAC | 10 VAC | 30 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
NC4D-JP-AC100VRELAY GEN PURPOSE 4PDT 4A 100V |
3,634 | - |
|
Datasheet | NC | Box | Obsolete | Through Hole | 100VAC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 13 mA | Non Latching | - | PC Pin | - | - | 80 VAC | 10 VAC | 30 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

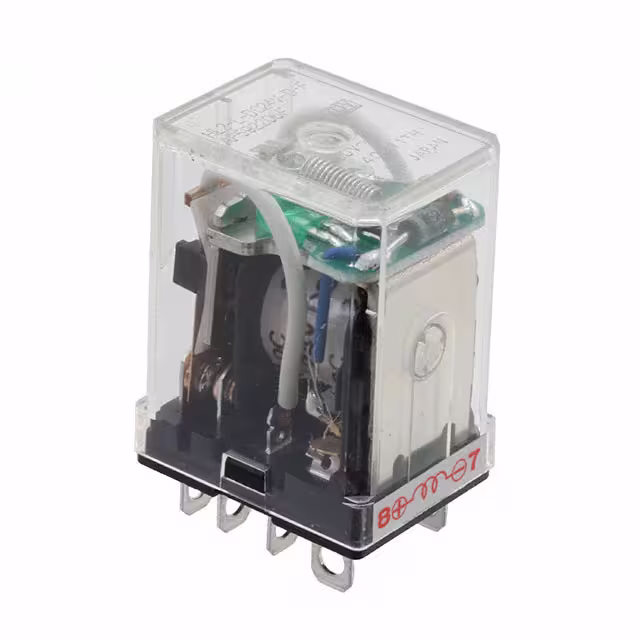

HL2-L-DC24V-D-FRELAY GEN PURPOSE DPDT 10A 24V |
1,340 | - |
|
Datasheet | HL | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 37 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2903296RELAY GEN PURPOSE DPDT 7A 120V |
2,799 | - |
|
Datasheet | RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 23 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903295RELAY GEN PURPOSE DPDT 7A 230V |
4,975 | - |
|
Datasheet | RIF | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903281RELAY GEN PURPOSE DPDT 11A 24V |
3,477 | - |
|
Datasheet | RIF | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 11 A | 440VAC, 250VDC - Max | 4840VA, 2750W | 56 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about selecting, comparing and sourcing Power Relays, Over 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Power Relays, Over 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Power Relays, Over 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Power Relays, Over 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
